DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
129
z The wiring number can be checked by marking on the wire.

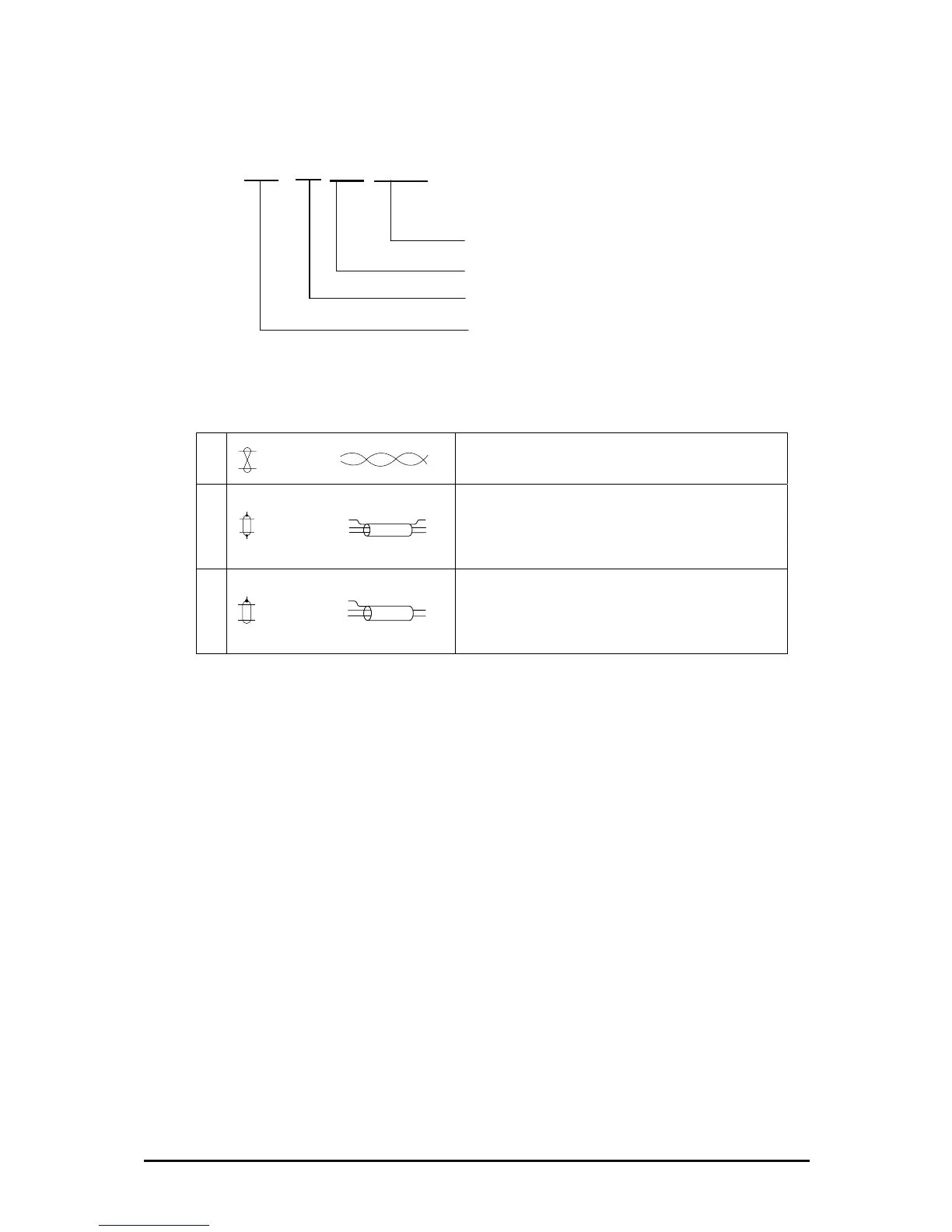

z Symbols on the circuit diagram have the following meaning.
1
(Twist wire )
Two wires are twisted together.
2
(Shield wire )
Refers to two phase blocking.
The line is grounded to prevent electric noise
like static electricity.
Two phase blocking means that wires are
connected and grounded from both sides.
3
(Shield wire )
Refers to one phase blocking.
The line is grounded to prevent electric noise
like static electricity.
One phase blocking means that wires are
connected and grounded from one side.
Wiring color (B : Black, W : White, O : Orange)
ECU PIN No.
Wiring size
Ø.75
W 2.68
Wiring type (C3ZH, AESSXF)
AESSX
