DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
132

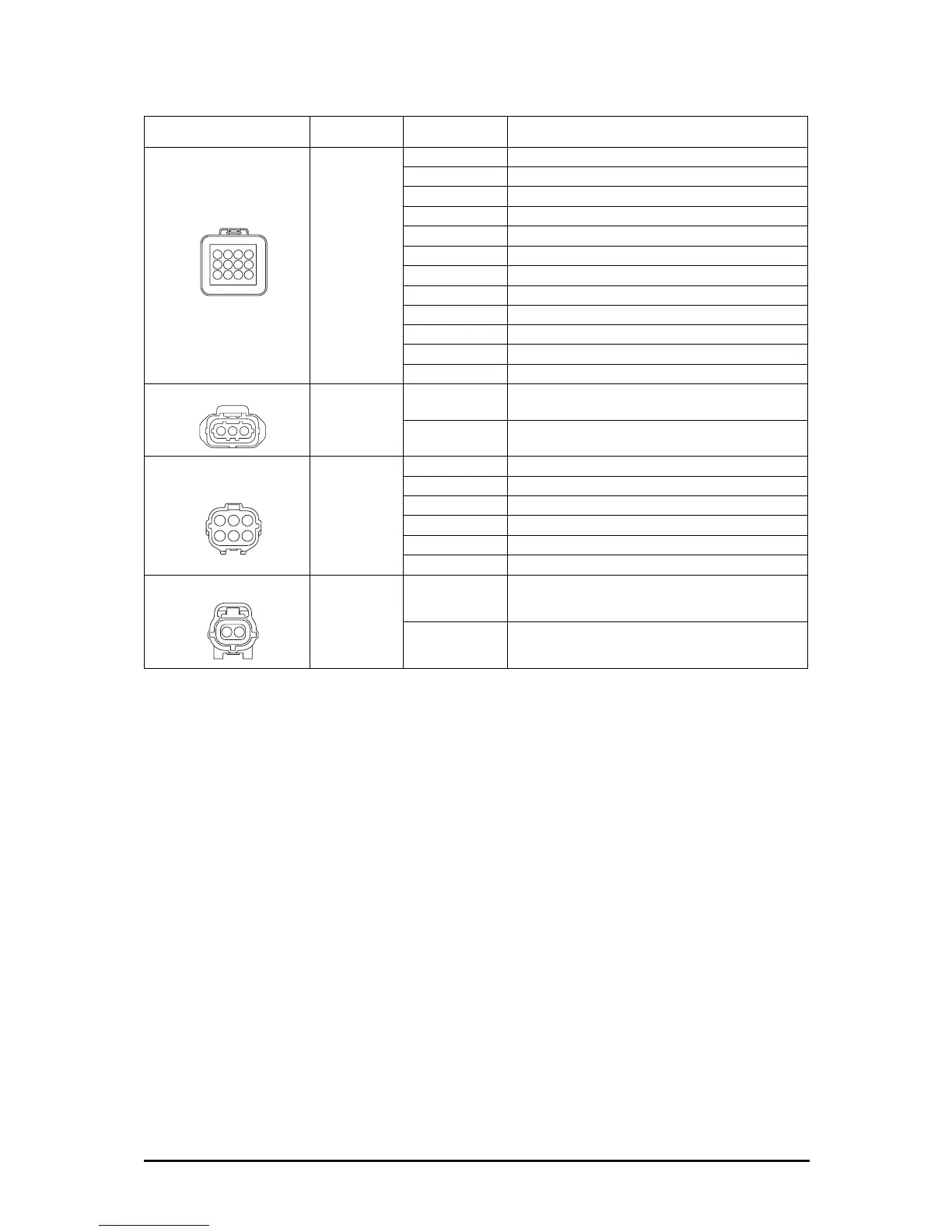

Figure Signs Pin No. Pin No.
INJ
2.49 Injector #1 High (O_P_SVH11)
2.73 Injector #1 Low (O_P_SVL11)
2.51 Injector #3 High (O_P_SVH13)
2.75 Injector #3 Low (O_P_SVL13)
2.50 Injector #2 High (O_P_SVH12)
2.74 Injector #2 Low (O_P_SVL12)
2.27 Injector #3 High (O_P_SVH23)
2.03 Injector #3 Low (O_P_SVL23)
2.25 Injector #1 High (O_P_SVH21)
2.01 Injector #1 Low (O_P_SVL21)
2.26 Injector #2 High (O_P_SVH22)
2.02 Injector #2 Low (O_P_SVL22)
13
2.60 2.36 2.11
Rail Press Sensor
FTS
2.12 Fuel Temp Sensor Signal (I_A_FTS)
2.59
Fuel Temp/Coolant Temp Sensor GND
(G_R_AN18)
Inter
Connector
(HFM)
2.30 HFM Sensor GND (G_R_AMS)
2.38 HFM Sensor Signal (I_A_IATS)
2.54 HFM Sensor Frequency Output (I_F_AMS)
2.84 HFM Sensor PWR (O_V_VDD12)
Vbat 24V (bat) (O_V_RH32)
GND GND Ground (Body GND)
Resistance
2.17 CAN2_High (B_D_CAN2H)
2.18 CAN2_Low (B_D_CAN2L)
Injector Connector
4
8
12
1
5
9
2.75 2.51 2.73 2.49
2.03 2.27 2.74 2.50
2.02 2.26 2.01 2.25
Inter Connector
for Vehicle
Vbat
2.38
2.84
2.30
GND
2.54
3
6
1
4
Resistance
2.17 2.18
12
