Doosan DL06 - Maintenance of Major Components

DL06K Interim Tire-4 Diesel Engine Commissioning and Operation
173

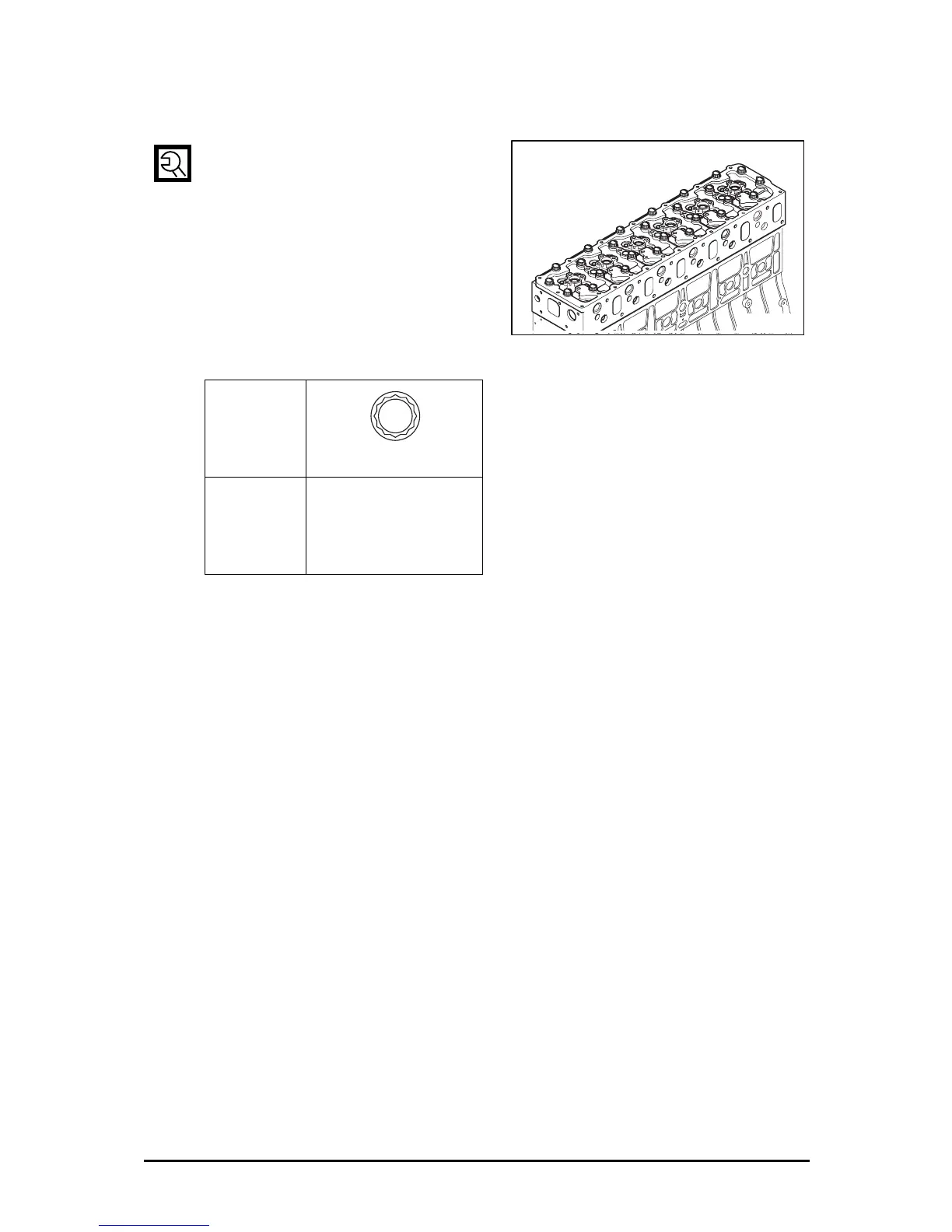

4.9. Tightening the Cylinder Head Bolts.
z Coat the engine oil on the cylinder
head bolt, assemble with specified
torque according to the order of the
assembling.
< Cylinder head bolts >
< Cylinder head bolt’s tightening order >
(1) First step : Coat the bolts with engine oil.
(2) Second step : Screw down 1 ~ 2 threads by hands.
(3) Third step : Tighten with about 5 kg•m by wrench.
(4) Fourth step : Tighten with rotating 90° by torque wrench.
(5) Fifth step : Tighten with rotating 90° by torque wrench.
(6) Sixth step : Finally, tighten with rotating angle method 90° by torque wrench
.
Specification
M13 × 1.5 × 140
Torque
1st : 5 kg•m
2nd : 90°
3rd : 90°
4th : 90°
24
20
16
12
8
4
1
5
9
6
2
3
7
11
15
19
23
13
17
21
25
26
22
18
14
10
24
20
16
12
8
4
5
9
6
2
3
7
11
15
19
23
13
17
21
25
26
22
18
14
10
EE1OM087
