DL06K Interim Tire-4 Diesel Engine Maintenance of Major Components
196

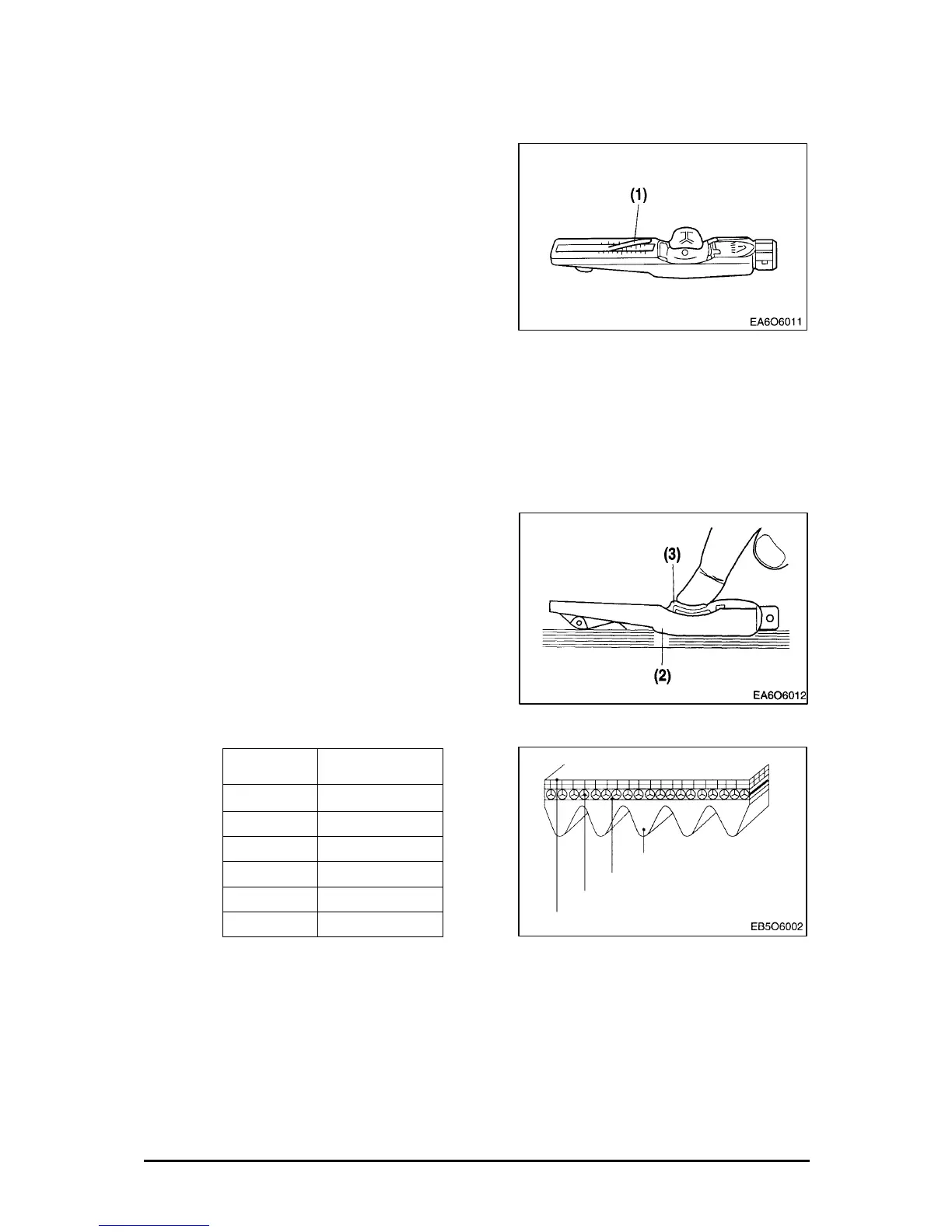

(3) Measuring tension
Lower indicator arm (1) into the scale
z Apply tester to belt at a point
midway between two pulleys so
that edge of contact surface (2) is
flush with the V- belt.
z Slowly depress pad (3) until the
spring can be heard to disengage.
This will cause the indicator to
move upwards.
z If pressure is maintained after the
spring has disengaged a false
reading will be obtained.
Reading of tension
z Read of the tensioning force of the
belt at the point where the top
surface of the indicator arm (1)
intersects with the scale.
z Before taking readings make
ensure that the indicator arm
remains in its position.
z
Poly belt tension
No of rib
(PK type)
Force (kgf)
3 20 - 27
4 27 - 36
5 34 – 45
6 41 – 57
7 48 – 66
8 59 - 73
No of rib (Rubber)
Oil and heat resistant insulation
Stretch resistant tension member
Oil and abrasion resistant backing
