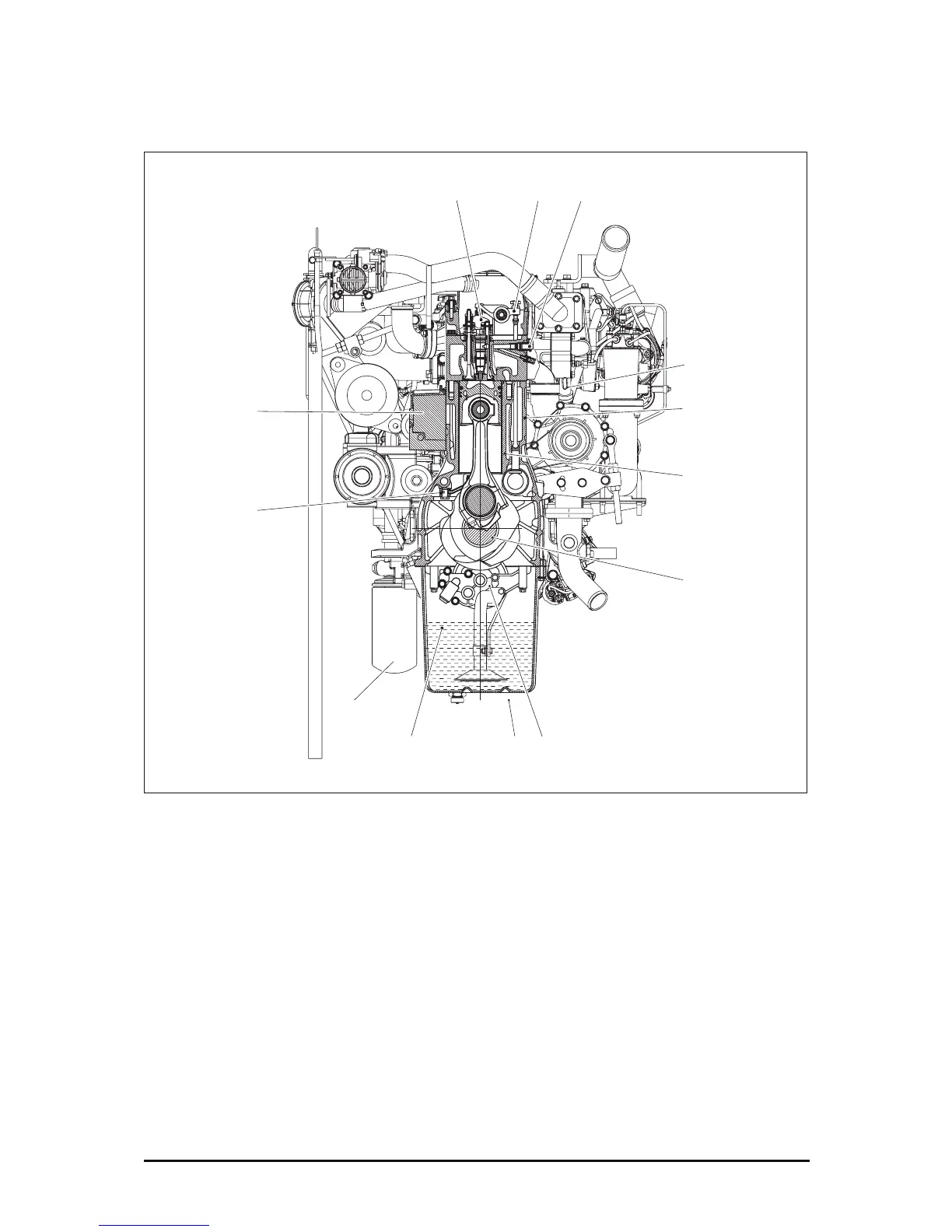

1.5.2. Sectional drawing
1 Fuel filter 8 Cylinder block
2 Oil spray nozzle 9 Cylinder liner
3 Oil cooler 10 Crankshaft
4 Caliper 11 Oil level gauge
5 Rocker arm 12 Oil drain valve
6 Fuel high pressure connector 13 Oil pump
7 Fuel high pressure pipe
EL4OM004
7
8
9
10
131211
4
5
6
2
3
1
