DL06K Interim Tire-4 Diesel Engine Technical Information
24

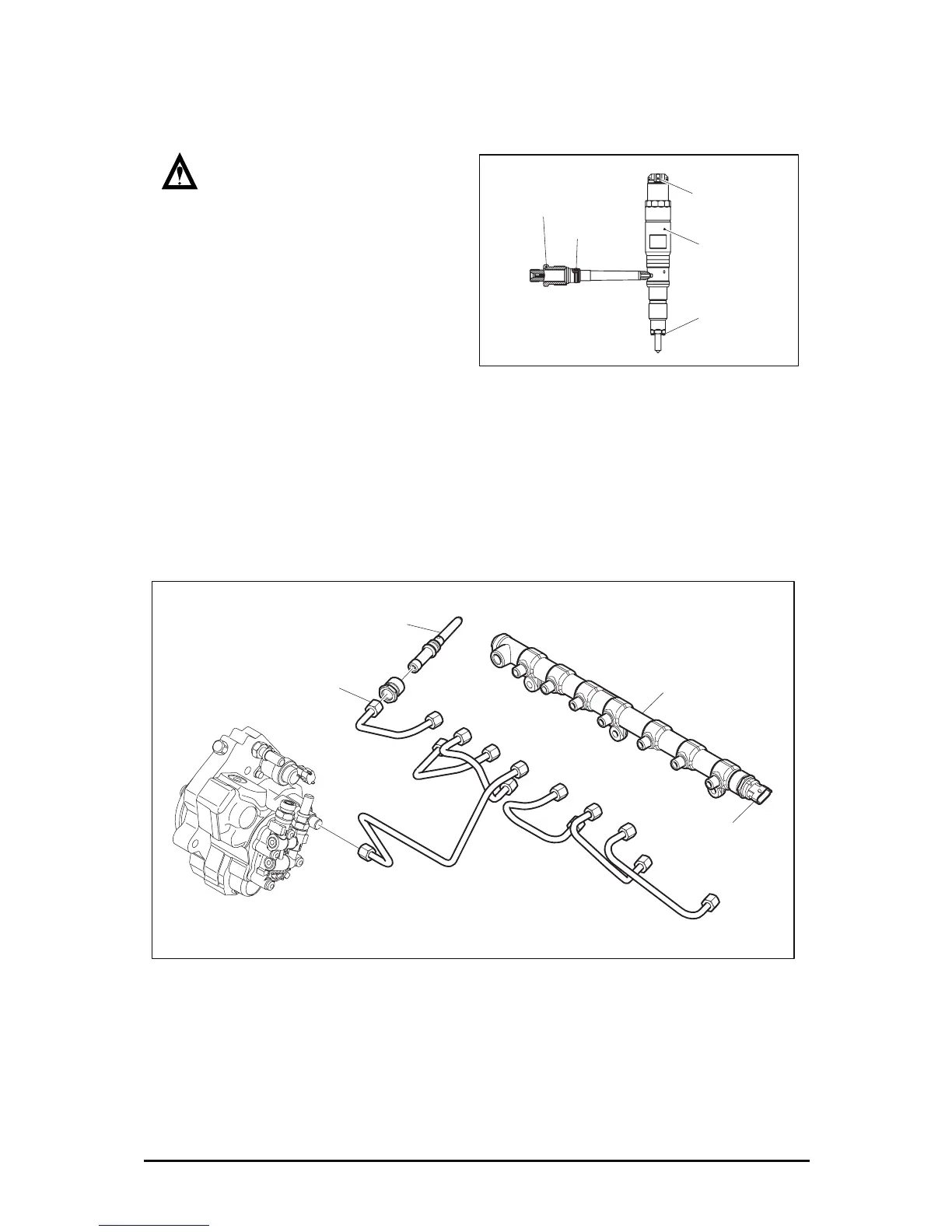

2.3.6. Injector and high pressure connector
z Be careful not to put any foreign
objects inside the injector and
high pressure connector when
performing disassembly
maintenance.
z O-rings and cooper washers
should be replaced with new one,
when reassembling the engine.
z Spray oil before assembling O-
Ring parts.
z Check the model number of the replacing part first before assembly.
2.3.7. Common rail system
z Pressure generation and fuel injection are completely decoupled from each other
in the “Common Rail” fuel injection system. The injection pressure is generated
independent of engine speed and injected fuel quantity stored in the ECU.
EH6OM056
High pressure fuel
connector nut
Injector harness
connector
O-ring
Injector
Seal ring
Fuel high pressure pump
Common rail
High fuel pressure connector
Common rail pressure
sensor
High pressure pipe
EK4OM007
