DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
68

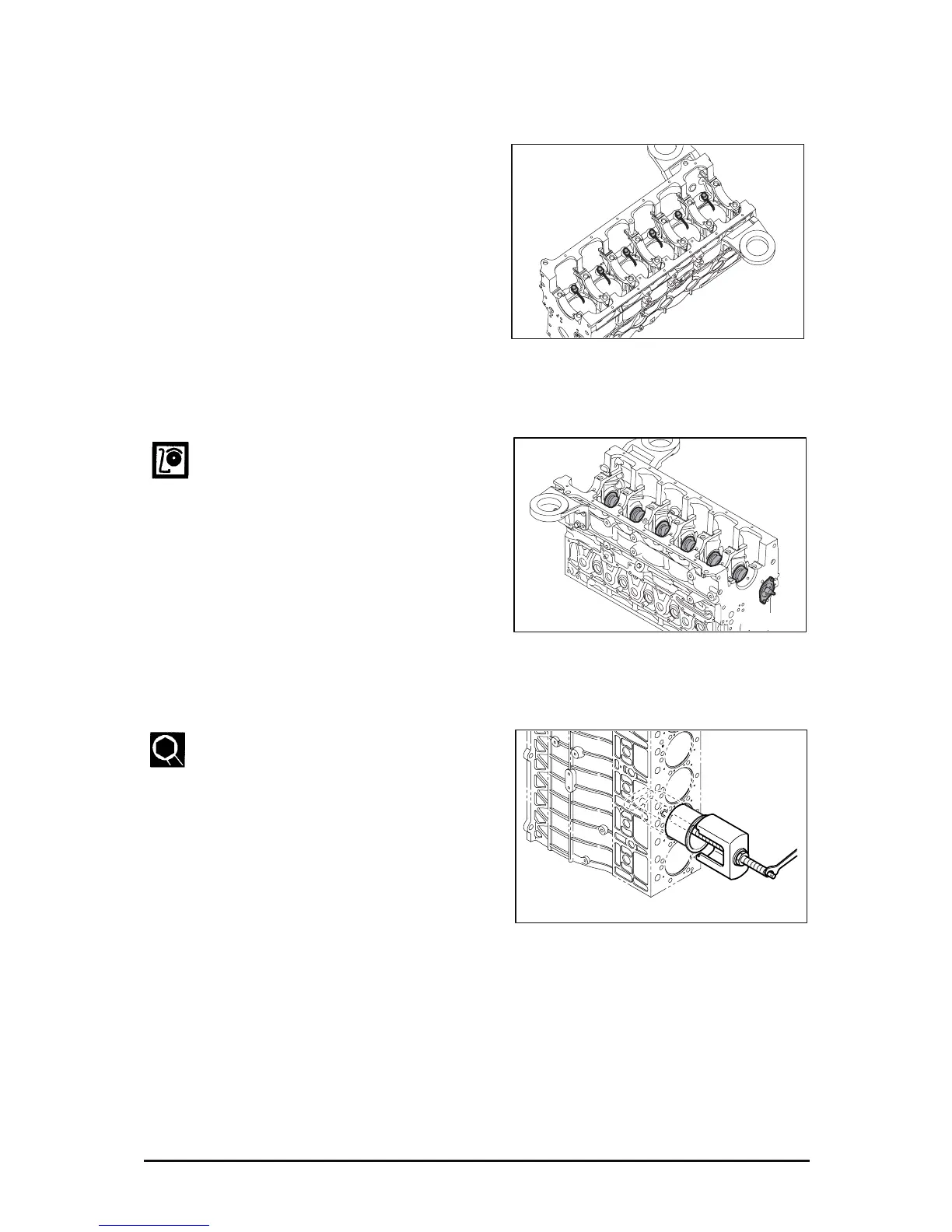

3.1.41. Oil spray nozzle
z Unscrew the crankshaft pulley fixing
bolts in reverse sequence of installing
sequence and remove the vibration
damper assembly.
3.1.42. Camshaft and tappet
z Disassemble the camshaft by rotating
it, in order to prevent the damage.
z Keep the disassembled crankshaft on
the special shelf, so that it is not bent
or damaged.
z Take out the tappet.
z Check the damage, scratch, and
abrasion. If any abnormal item is
found, replace it.
3.1.43. Cylinder liner
z Be careful not to generate any
damage at cylinder block.
z Disassemble the cylinder liner with a
special tool or hands.
z Disassemble jig no.
: EF.121-222
EK4OM065
EJ9OM052
EK4OM066
