DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
85

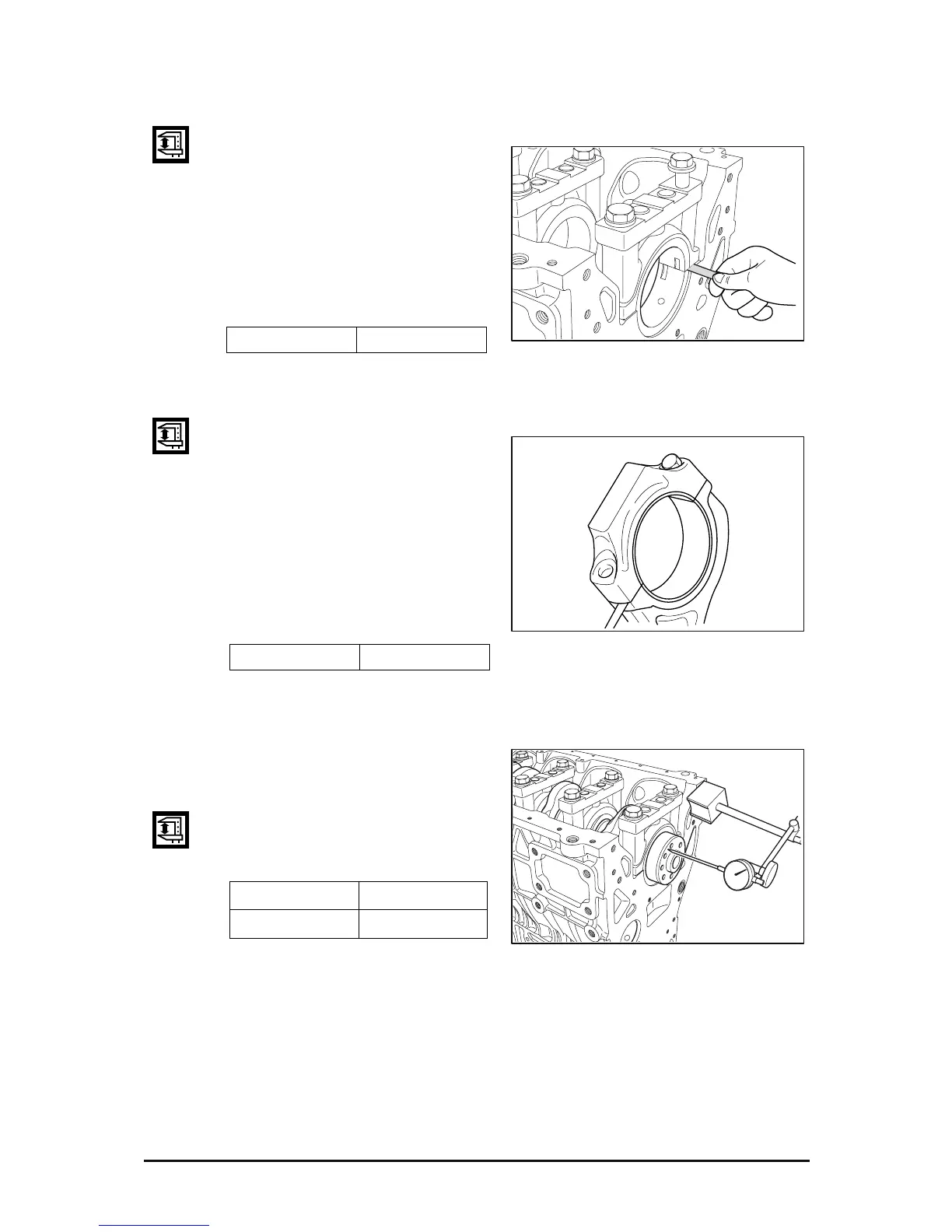

z Crankshaft bearing crush
Install the bearing and cap in the
cylinder block, retighten the bolts to
specified torque, unscrew out one bolt
completely, then measure the
clearance between the bearing cap and
cylinder block using a feeler gauge.
(mm)
Standard 0.065 ~ 0.105
z Connecting rod bearing crush
Install the bearing and cap in the
connecting rod big end, retighten the
bolts to specified torque, unscrew out
one bolt completely, then measure the
clearance between the bearing cap
and connecting rod big end using a
feeler gauge.
(mm)
e) Crankshaft end play
z Assemble the crankshaft to the
cylinder block.
z With a dial gauge, measure
crankshaft end play.
(mm)
Standard 0.065 ~ 0.105
Standard Limit
0.052 ~ 0.122 0.15
EH6OM040
EA6M064I
EH6OM041
