Doosan DL160 - Transmission Lever

OP000754
2-11
Operating Controls

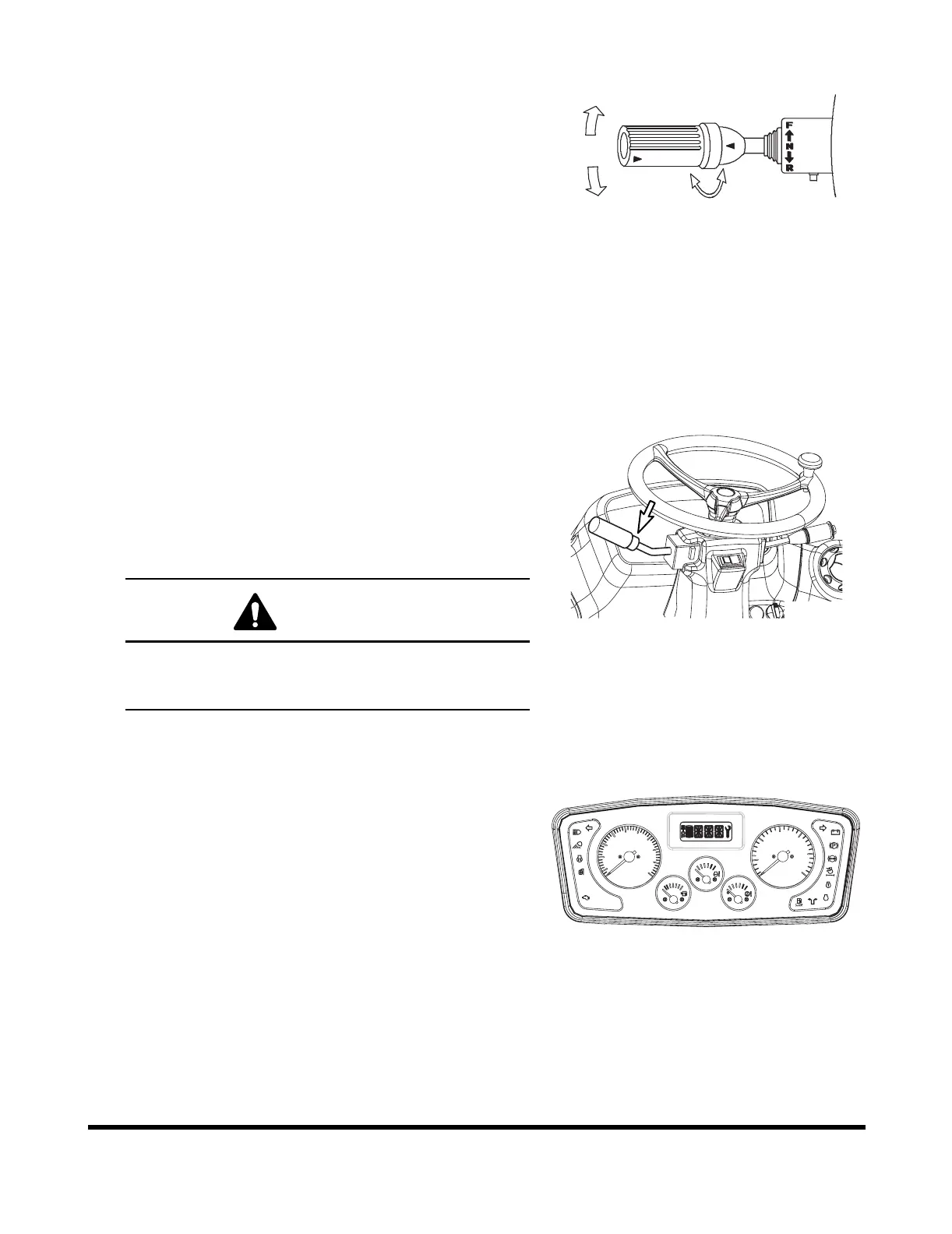

9. Transmission Lever
F Forward - When the lever is pushed forward,
transmission is in "FORWARD." 1st, 2nd, 3rd and 4th
are available.
N Neutral - When the lever is returned to the center
position, between forward and reverse, the
transmission is in "NEUTRAL."
R Reverse - When the lever is pulled back,
transmission is in "REVERSE" 1st, 2nd and 3rd are
available.
Rotating the switch shifts transmission between 1st, 2nd,
3rd or 4th gears.
NOTE: There is a transmission display, on the dash,
that indicates, gears, direction of travel, error
codes and kick-down activation. (See page
2-13)
A transmission neutral lever lock is in base of transmission
lever. This neutral lever lock prevents the transmission
lever from being moved out of "NEUTRAL."
N "NEUTRAL LOCK" position. Prevents lever from
being moved out of "NEUTRAL."
D "DRIVE" position. Allows lever to be moved from
"NEUTRAL" to "FORWARD and REVERSE."
10. Front Instrument Panel
See “Front Instrument Panel” on page 2-13.
Figure 16
R
N
F
2
3
1
HAAA3680
FG003943
Figure 17
CAUTION!
"LOCK" transmission lever. Whenever machine is
parked, "LOCK" transmission lever in "NEUTRAL" to
prevent accidental machine movement.
50
km/h
0
20
10
40
30
30
x100r/min
0
10
15
5
20
25
STOP
STOP
STOP
FG013043
Figure 18
