5. About the engine
105

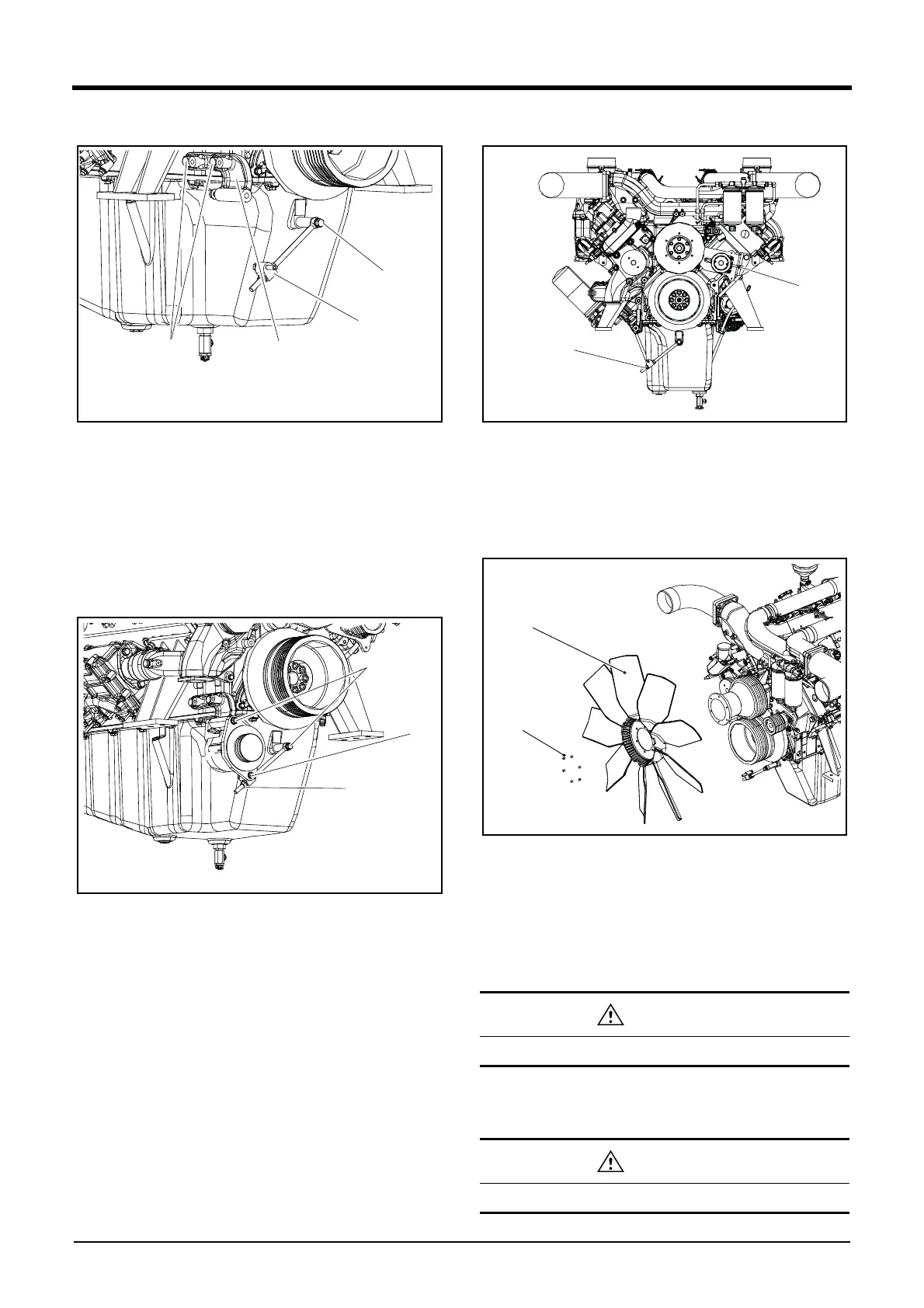

55. Attach the alternator bracket.
DV2213056A
1) Attach the alternator(D).
2) Tighten the fixing bolts(C) at a tightening torque 7.0kgf·m
± 0.5kgf·m.
3) Attach the eyebolt(B).
4) Tighten the fixing bolt(A) at a tightening torque 2.2kgf·m
± 0.33kgf·m.
56. Attach the alternator.
DV2213055A
1) Attach the alternator(C).
2) Tighten the fixing bolt(B).
3) Tighten the fixing nut(A) at a tightening torque 2.2kgf·m
± 0.33kgf·m.
57. Adjust the tension after attaching the V-belt.
DV2213054A
1) Attach the V-belt and then adjust the tension with turning
the adjusting nut(B).
2) Attach the V-belt and then adjust the tension with turning
the adjusting nut(A).
58. Attach the cooling fan.
DV2213052A
1) Attach the cooling fan(B).
2) Tighten 6 fixing bolts(A).
59. Inject the coolant.
1) The mixing ratio for the engine coolant is 40% anrifreeze
and 3~5% additives (DCA4) to prevent corrosion.
2) Add the coolant of the correct mixing ratio.
60. Add the engine oil.
1) Add our recommended genuine oil to replenish the oil level.
C
B
A
D
A
B
C
CAUTION
Use coolant recommended by Doosan.
CAUTION
Use genuine engine oil recommended by Doosan.
B
A
B
A
