Doosan DX190W - Fan Side; Joint Bolt & Nut between Engine Mounting Bracket and Frame; Pump Side

OP000530
4-65
Inspection, Maintenance and Adjustment
1. Joint Bolt with Engine Mounting Bracket and Engine
1) Pump Side
• Tool : 24 mm ( )
• Torque : 27 kg•m
2) Fan Side
• Tool : 17 mm ( )
• Torque : 6.5 kg•m
2. Joint Bolt & Nut Between Engine Mounting Bracket and
Frame
1) Pump Side
• Tool : 30 mm ( )
• Torque : 46 kg•m
2) Fan Side
• Tool : 30 mm ( )
• Torque : 46 kg•m
FG006787

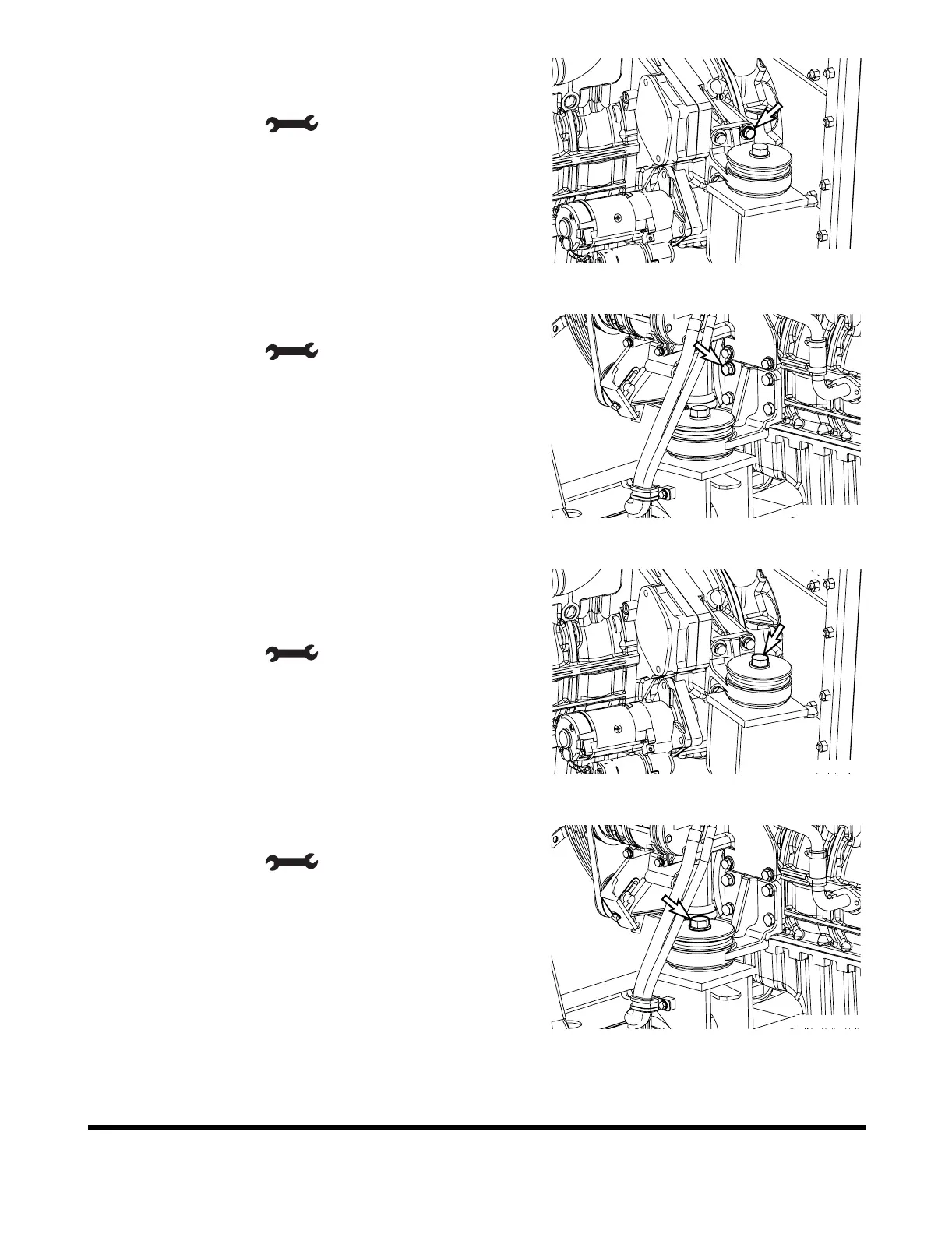

Figure 114
FG006788
Figure 115
FG006789
Figure 116
FG006790
Figure 117
