Operation & Maintenance Manual Operating Instructions
38

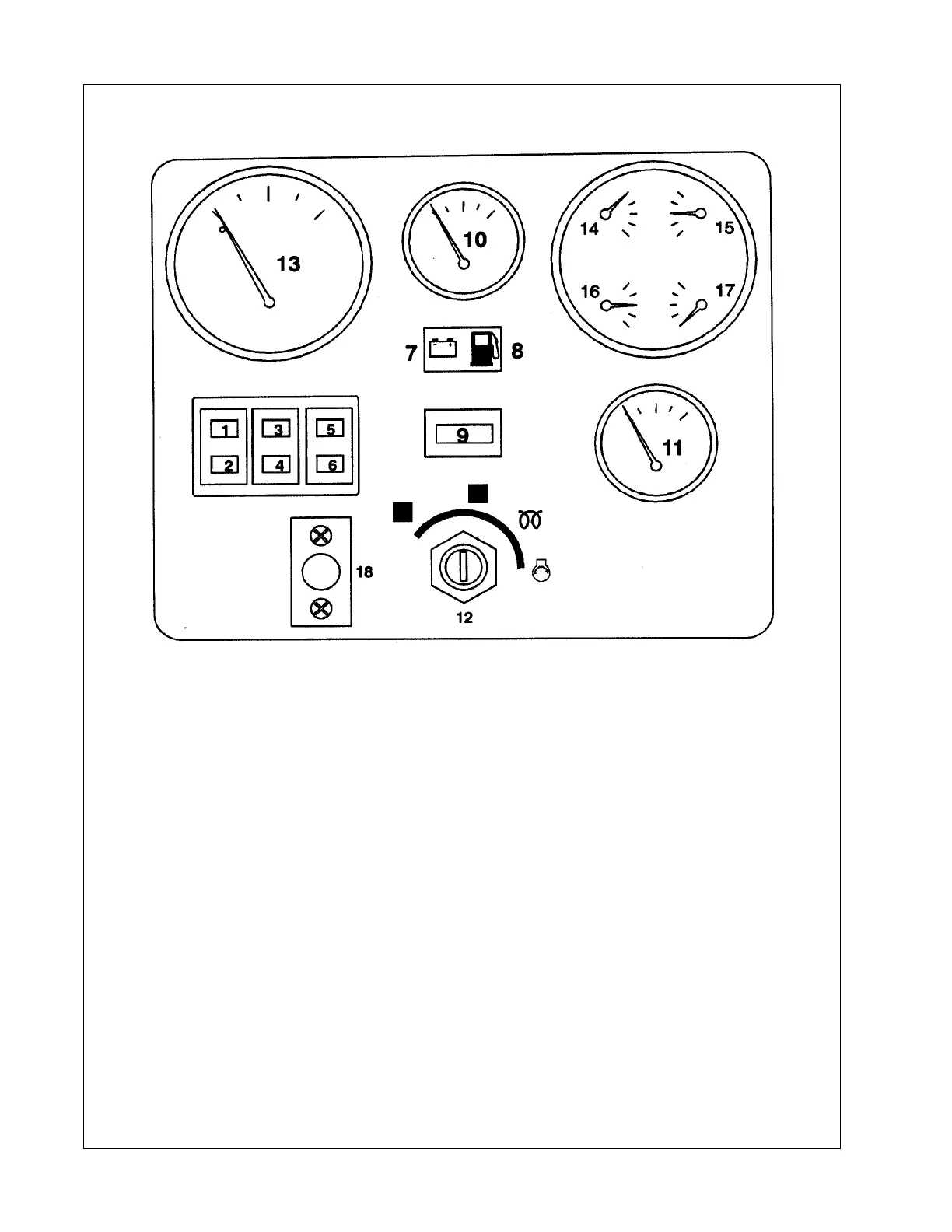

Control Panel
Diagnostic/Auto Shutdown (Optional)
1. High Engine Temperature - Coolant above 220°F (104°C) or more.
2. Low Engine Oil Pressure - 12 psi or less.
3. High Compressor Temperature - 248°F (120°C).
4. Air Filters Restricted - Needs servicing.
5. Spare
6. Spare
Diagnostic/Auto Shutdown (Standard)
7. Alternator Not Charging - Needs attention.
8. Low Fuel Level - Must add fuel to operate.
9. Hourmeter - Records running time for maintenance.
10. Compressor Discharge Pressure Gauge- lndicates pressure in receiver
tank, psi (kPa).
11. Fuel Level Gauge - Indicates amount of fuel in tank.
