4 AUD-D2A Connections to DCP-2000 and Cinema
Analog Audio Processor
This section presents the overall schematic of the AUD-D2A connections between a DCP-2000
and an external Cinema Analog Audio Processor.
4.1 Connections Schematic
DB25-F
DB25-F
ANALOG AUDIO OUTPUT
DIGITAL AUDIO INPUT
Power
connector
ON
POWER
OFF
100-240V
0.5A MAX
50-60Hz
DCP-2000
Cinema Analog
Audio Processor
DB25-F
DB25-F
ANALOG AUDIO INPUT
Cable 2: DCP-2000 Analog OUT to Cinema
Audio Processor IN SINGLE LEG
Cable 1: DCP-2000 AES OUT
to AUD-D2A AES IN
AES OUTPUT
Power Outlet
100-240V AC,
50-60 Hz
Power cord
AUD-D2A
DCP-2000 AES OUT
AUD-D2A AES IN
AUD-D2A Analog OUT
Cinema Processor Analog IN

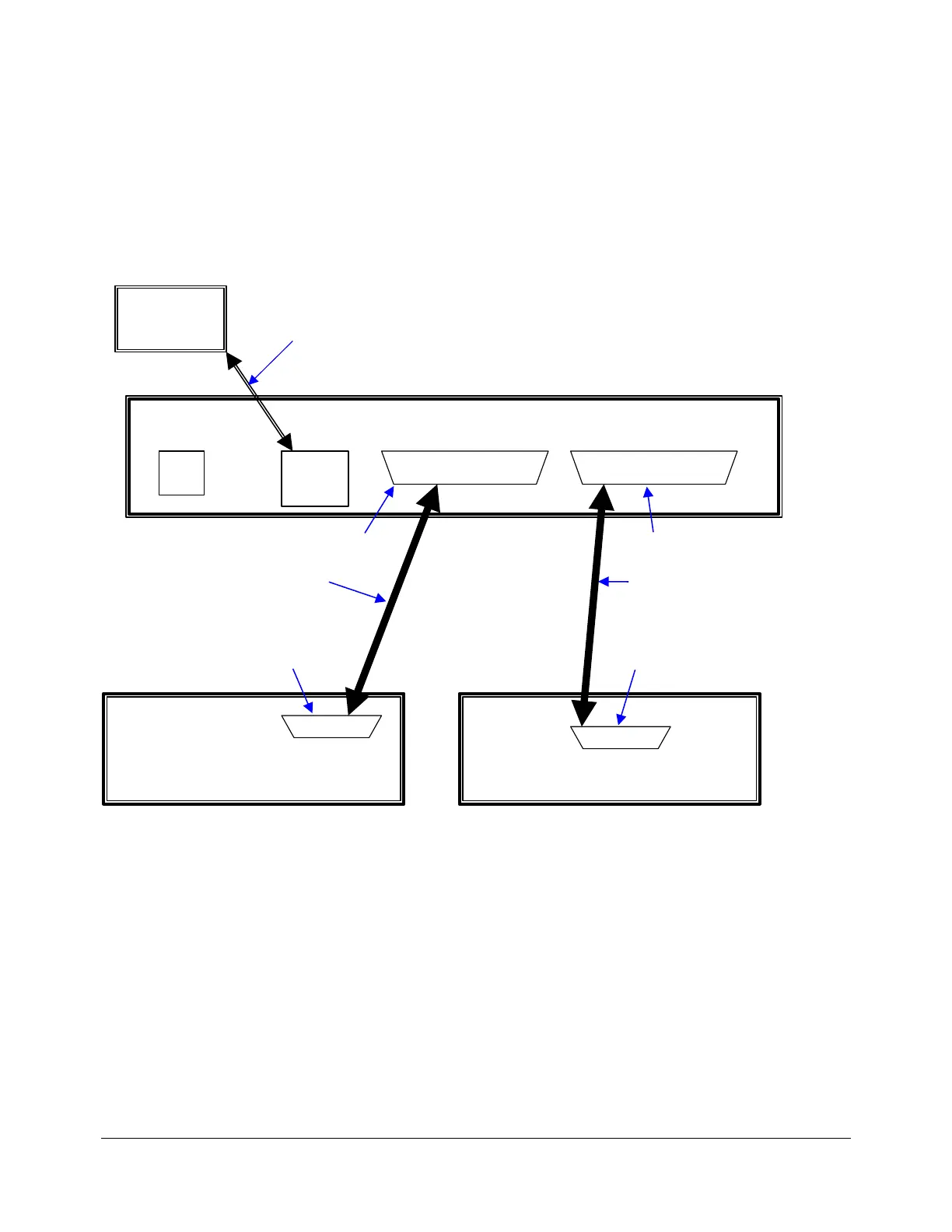

Figure 5: AUD-D2A to DCP-2000 Connections Schematic
