3 Rear Panel Connections
3.1 AES/EBU Digital Audio In DB25-F Connector Pin-Out
The digital Audio Input connector pin-out complies with the AES/EBU standard and is illustrated
below:
Pin # Signal Description Pin # Signal Description
1 no connection 14 no connection
2 no connection 15 no connection
3 no connection 16 no connection
4 no connection 17 no connection
5 no connection 18 no connection
6 no connection 19 no connection
7 Ch 7 & 8 plus 20 Ch 7 & 8 minus
8 Ch 7 & 8 ground 21 Ch 5 & 6 plus
9 Ch 5 & 6 minus 22 Ch 5 & 6 ground
10 Ch 3 & 4 plus 23 Ch 3 & 4 minus
11 Ch 3 & 4 ground 24 Ch 1 & 2 plus
12 Ch 1 & 2 minus 25 Ch 1 & 2 ground
13 no connection
The cable that is used to interconnect the DCP-2000 to the AUD-D2A is one-to-one pin compatible.
A picture of the DB25-F input connector is provided below:

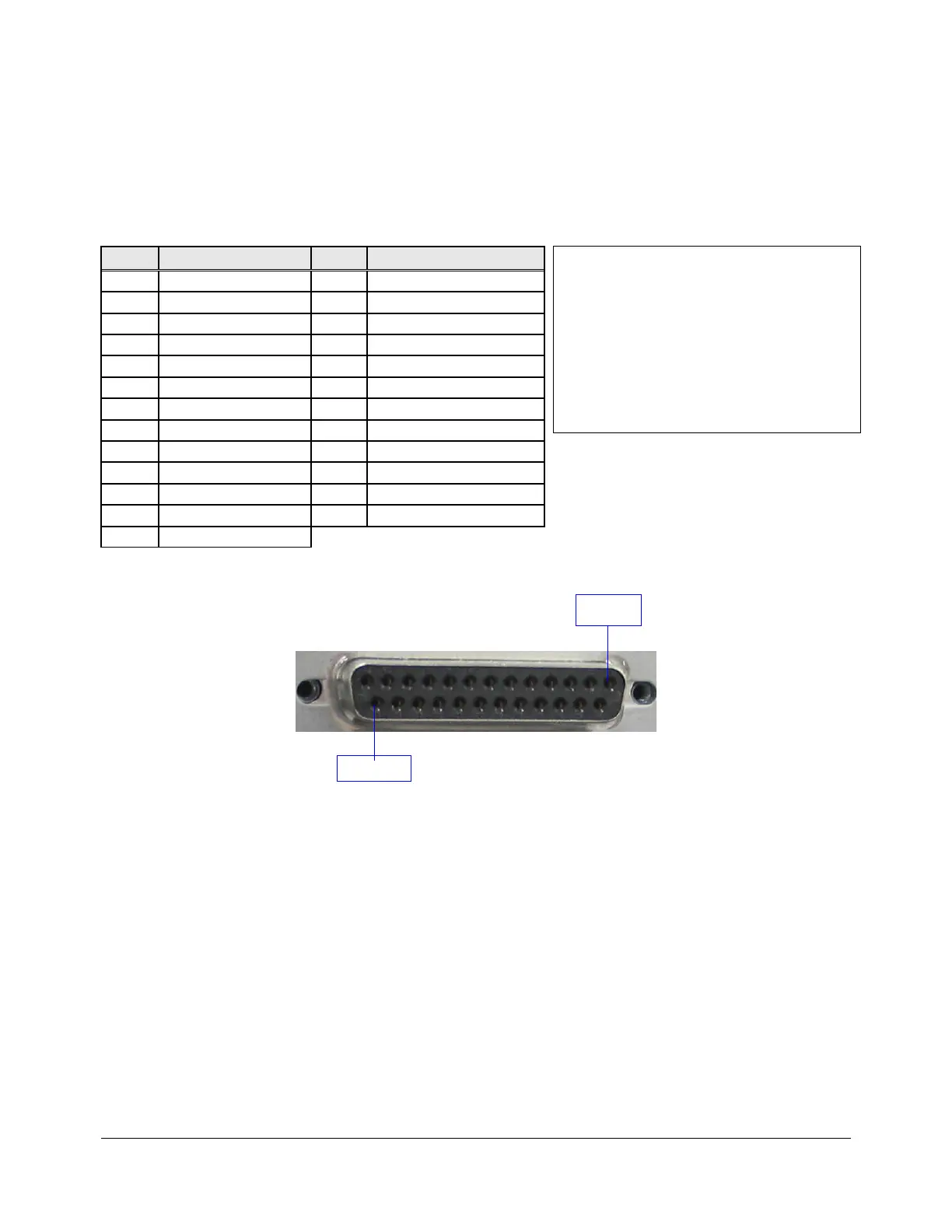

Figure 3: AUD-D2A Digital Audio Input Connector (DB25-F)
D2K.OM.000181.DRM Page 8 Version 1.4
Doremi Cinema LLC
DCI Channel Map:
Channel 1: L (screen – left)
Channel 2: R (screen – right)
Channel 3: C (screen – center)
Channel 4: LFE (screen – low frequency
effects subwoofer)
Channel 5: Ls (surround – left wall)
Channel 6: Rs (surround – right wall)
Channel 7: Lc (screen – mid left to center)
Channel 8: Rc (screen – mid right to center)
Pin 1
Pin 25
