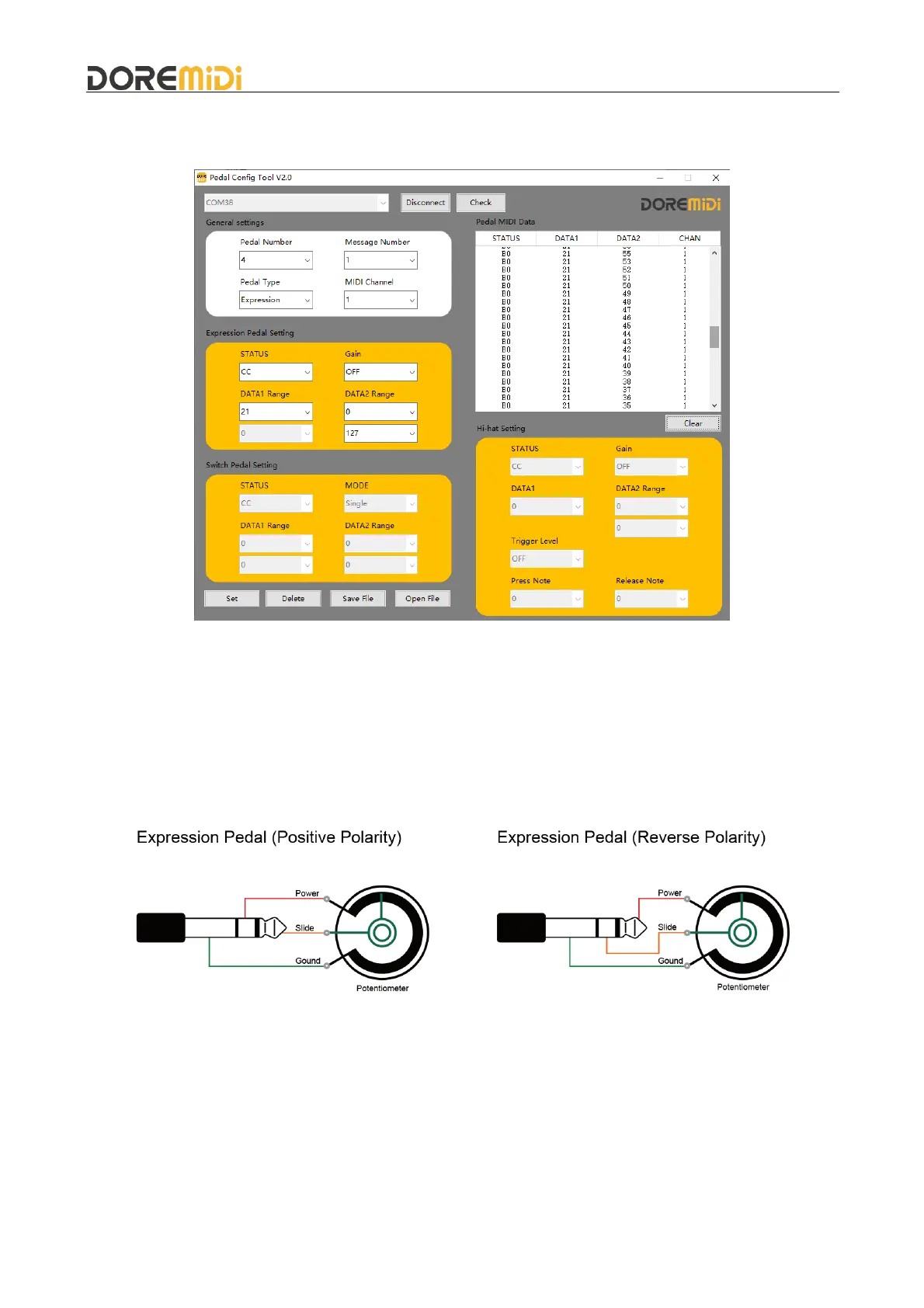

Set expression pedal
Set the No. 4 pedal as an expression pedal, channel 1, and the CC controller is 21, as
shown in the figure:
Set pedal 1 and pedal 3 to control PC together
If the switch pedal 1 is set to PC, MODE = Decrease, and the switch pedal 3 is set to
PC, MODE = Increase; then the two pedals will share a PC value, and the range of the PC
value is based on the DATA1 Range of pedal 1.
6. Types of Expression Pedal Supported
The FC-3 supports 6.35mm TRS plug, which can be connected to a positive-polarity or
a reverse-polarity expression pedal. The pedal plug is shown in the picture:
7. Precautions
1) This product contains a circuit board.
2) Rain or immersion in water will cause the product to malfunction.
3) Do not heat, press, or damage internal components.
4) Non-professional maintenance personnel shall not disassemble the product.
5) If the product is disassembled or damaged by improper use, the warranty is not
available.
