4 Saflok Quantum Pixel PK3693_T 02-19
Door and door frame preparation (continued)

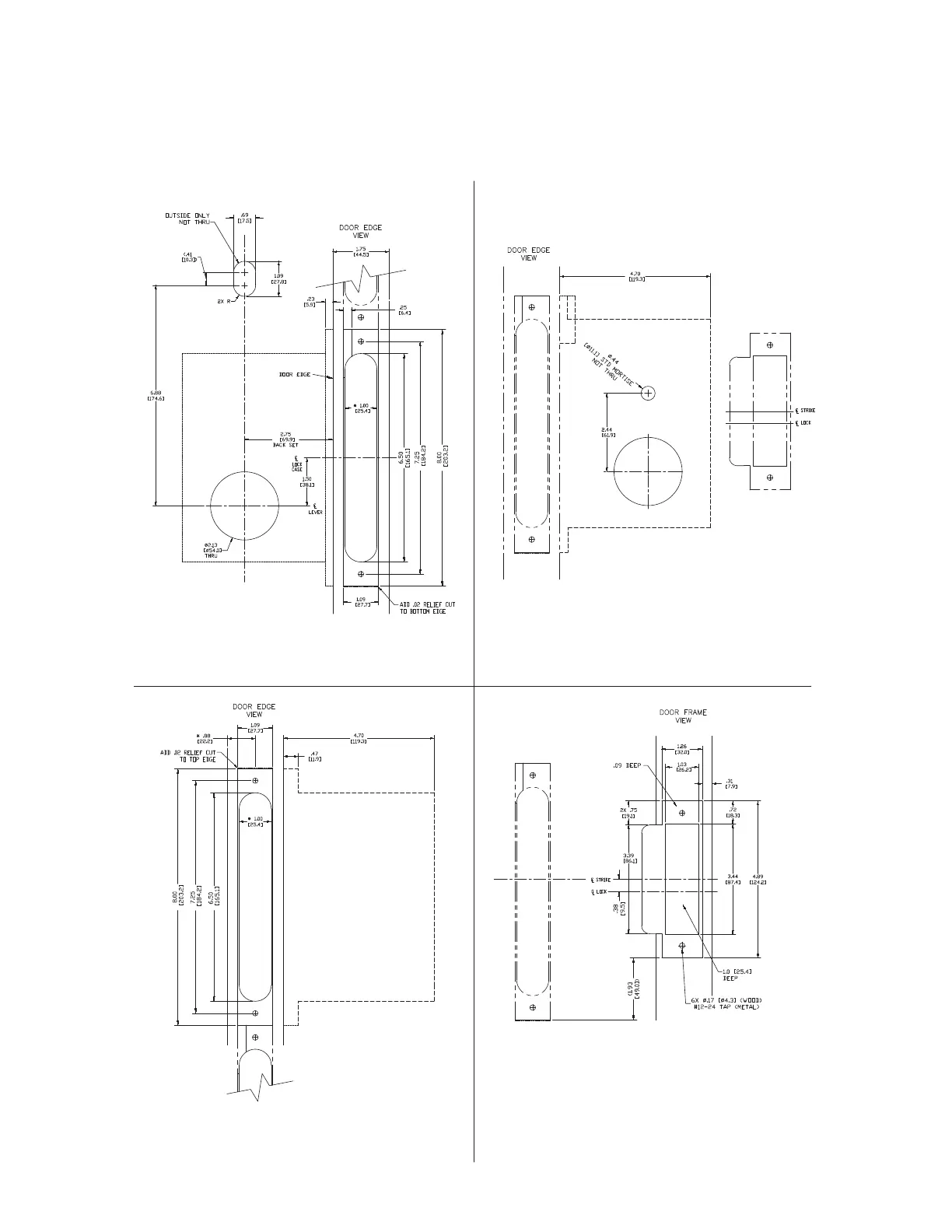

Figure 3 - Door preperation templates
*NOT TO SCALE
PAGE 1 - O/S TRIM &
LOWER MORTISE
PAGE 2 - I/S TRIM
PAGE 3 - UPPER
CONTROLLER MORTISE
PAGE 4 - STRIKE PREP
OUTSIDE
PREP
INSIDE
PREP
x
x
*LOWER MORTISE
CENTERED IN DOOR
*UPPER MORTISE OFFSET TO O/S DOOR
FACE IF GREATER THAN 1-3/4" DOOR
THICKNESS.
*CENTERED FOR 1-3/8" TO 1-3/4" DOOR
THICKNESS.
