Saflok Quantum Pixel PK3693_T 02-19 5
Lock trim installation
Tools Required for Installation
• Driver handle (P/N: 24190)
• #1 Philips bit
• #2 Philips bit
• #3 Philips bit
• T-15 tamper resistant torx bit (P/N: A39250)
• Spanner wrench for thumb turn (P/N: A32370)
1. Lower Mortise Installation
a. Pre-Drill #12 screw pilot holes
b. Slide mortise into lower pocket
c. Route mortise cable harness along the side wire channel that connectsthe
top and bottom mortise pockets (see figure #6 for wire channel location)
d. Secure with included #12 flat head screws
e. Ensure wire harness is free and not pinched

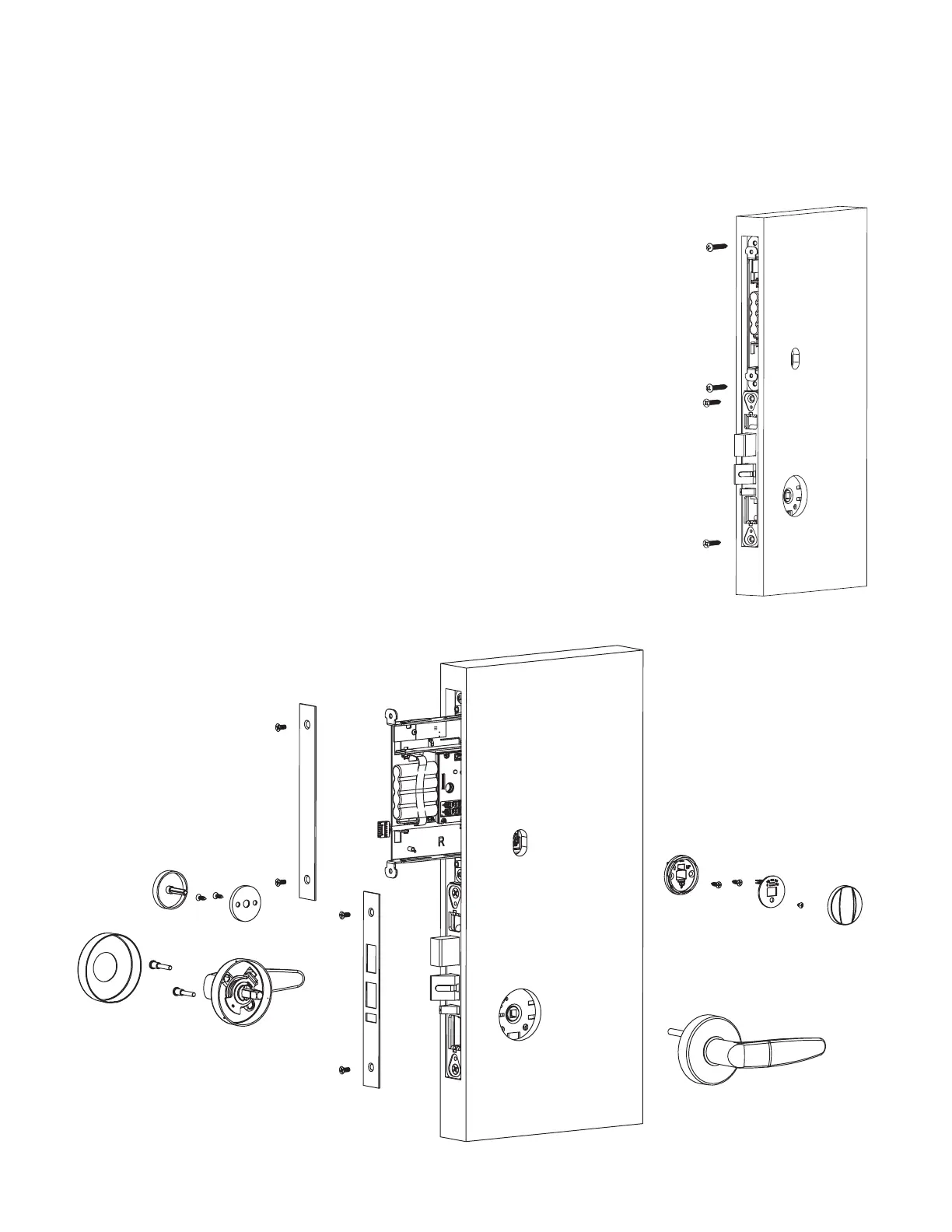

Figure 5 - Lock Exploded View with Mounted Controller and Mortise
Figure 4 - Pixel Controller and
Mortise Mounting
