2200 Retro Fit Tails for 2100 Conveyors
Dorner Mfg. Corp.
5 851-461 Rev. A

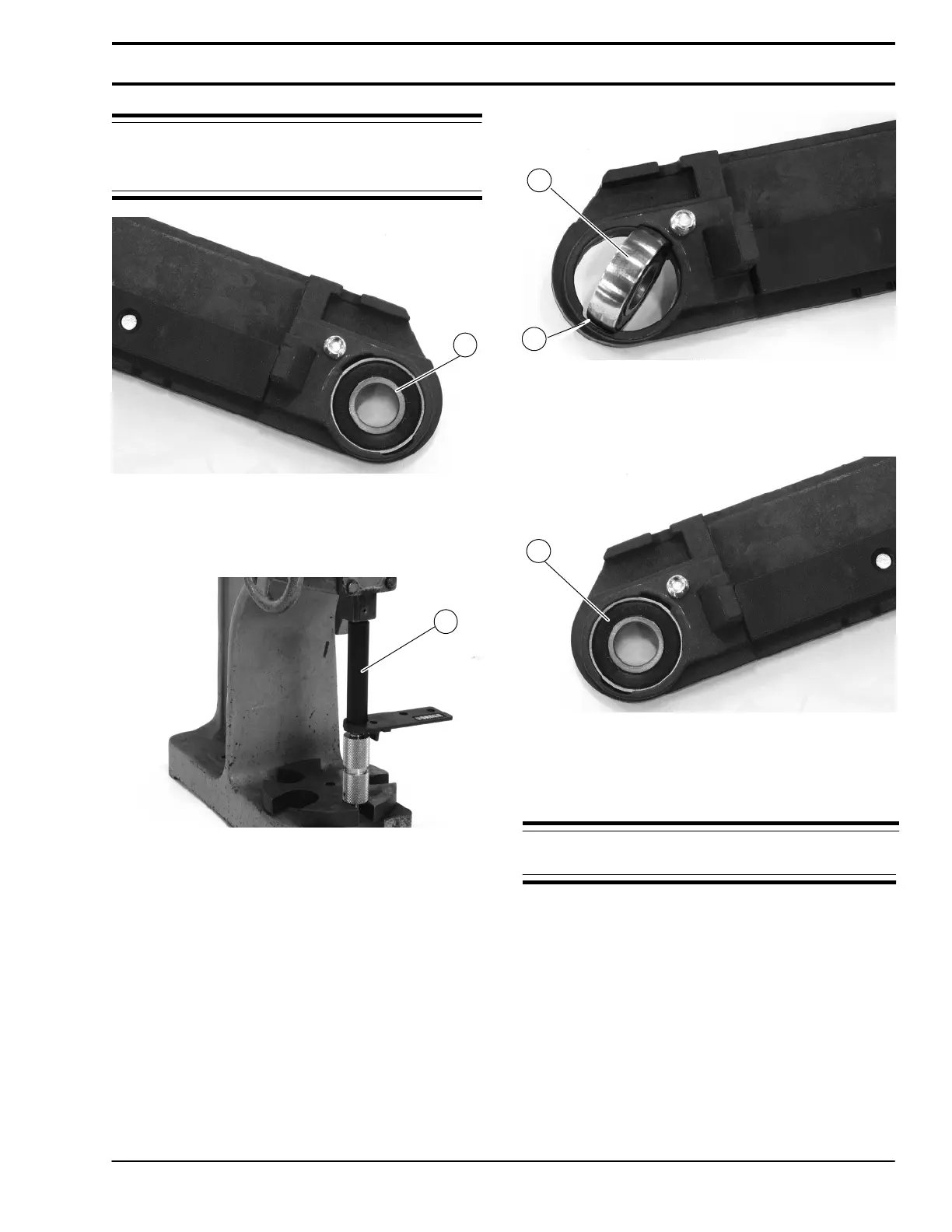

NOTE: Press on inner race (J of Figure 7) of bear-
ing only. Use Dorner tool part number 450282 or
equivalent to aide in press fit.
Figure 7
J
8. With bearing installed in head plate, use a bearing
installation tool, (K of Figure 8), part number
450292, to press the bearing onto the drive shaft.
Figure 8
K
9. On remaining head plate, insert pulley bearing (H
of Figure 9) into slot (I).
Figure 9
H
I
10. Twist bearing to fit into bearing enclosure.
Figure 10
H
11. Loosely thread taper screw (E of Figure 3) into
drive pulley (C).
NOTE: DO NOT tighten non-drive shaft bearing ta-
per screw at this time.
Installation
