Installation 9
Note:
The DLM provides a buffered digital signal output, which may be used for
bridging. This feature is particularly useful when connecting unbalanced
consumer equipment with low signal level outputs (< 500 mV) to profes-
sional balanced lines. In either case, the buffered digital output signal is
approximately 4 volts.

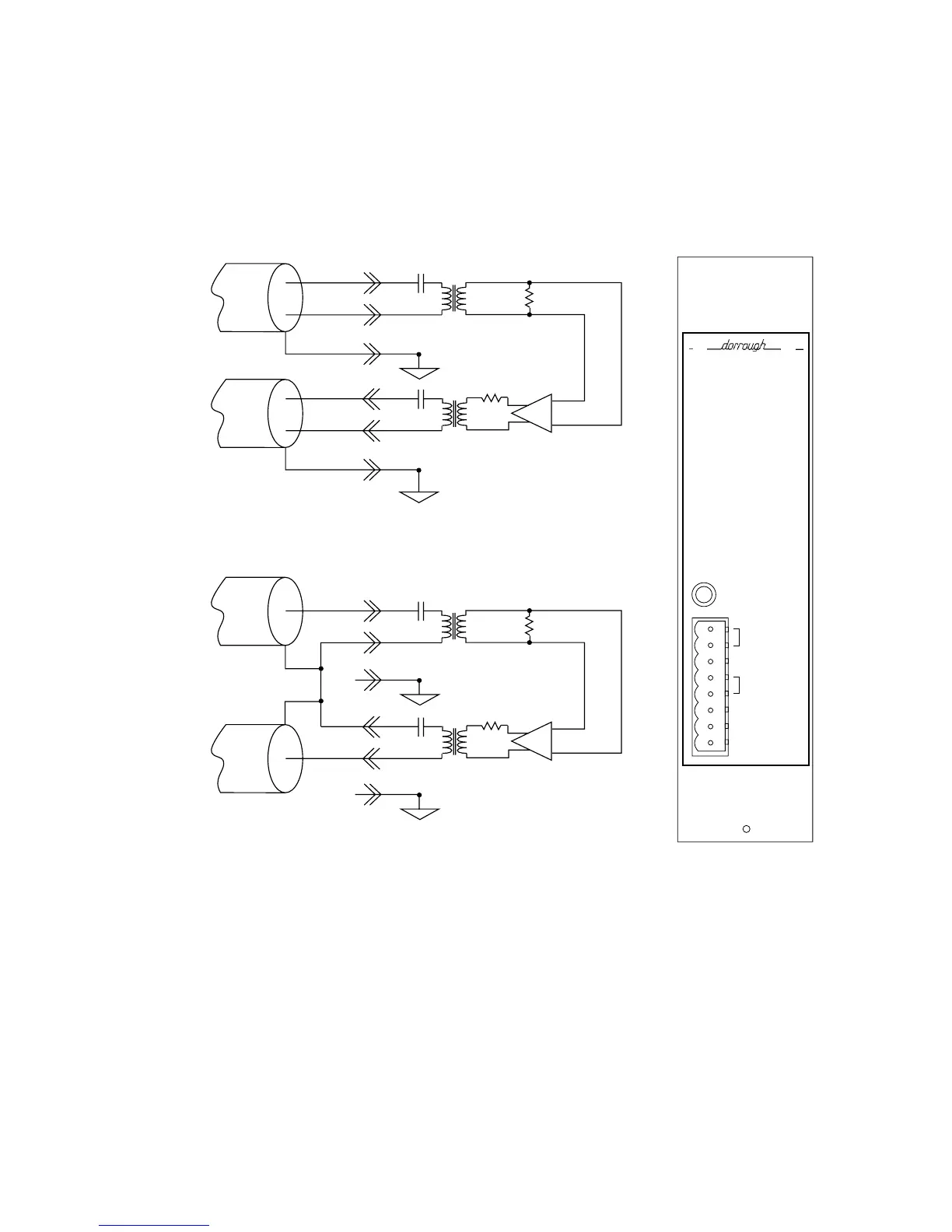

Figure 2- . Digital Signal Connection
Woodland Hills, Ca 91364
Made in U.S.A.
PEAK
HOLD
POWER
7 – 12 VDC
BUFFERED
DIGITAL OUT
GROUND
DIGITAL IN
GROUND
V–
V+
Input 110 Ohm
RS 422
Driver
110 Ohm
Buffered
Output
Un-Balanced Systems
Input 110 Ohm
RS 422
Driver
110 Ohm
Buffered
Output
Balanced Systems
