dosatron D25+ Series - Flow Rate Calculation and Performance Data; Calculating Water Flow Rate

©
DOSATRON INTERNATIONAL S.A.S / 35
©
DOSATRON INTERNATIONAL S.A.S / 36
EN
KNOW YOUR FLOW
n Calculation of water flow in l/h =
Number of clacks in 15 seconds
=
x
4
x
60
x
0.45
2
Calculation for 1 hour
Calculation for 1 minute
2 clacks = 1 cycle
Motor capacity
in litres
NOTE: This method of calculation cannot replace a flow meter.
It is given only as an approximate guide.
n Calculation of water flow in GPM =
Number of clacks 15 seconds
=
x
4
x
0.45
x
3.8
2
Motor capacity in litres
Calculation for 1 minute
2 clacks = 1 cycle
Conversion
litres to gallons

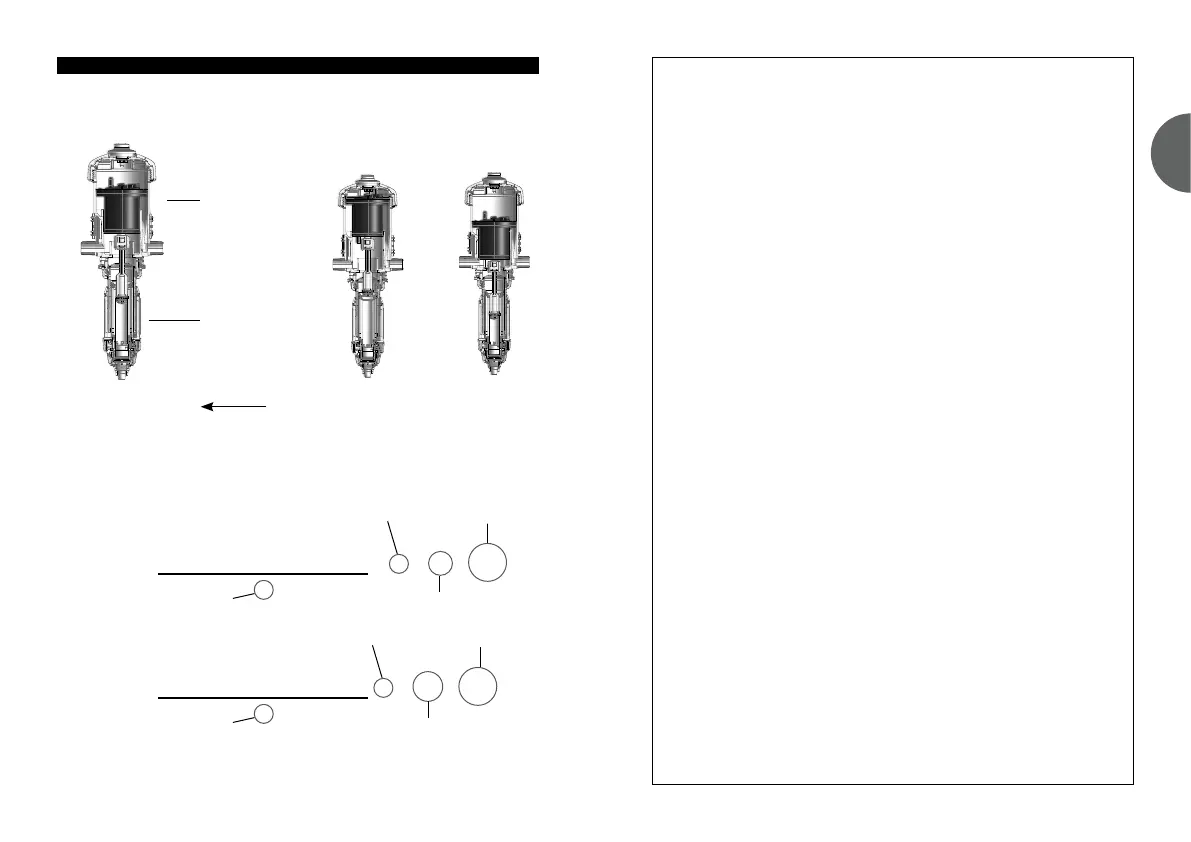

A SIMPLE METHOD
THE DOSATRON IS COMPOSED OF:
A volumetric
piston
hydraulic
motor driving:
In its backwards and forwards
movement, the motor piston clacks:
a dosingpiston
2 clacks =
1 motor cycle =
1 motor capacity
Once in the
top position
Once in the
bottom position
The speed of the motor is proportional to the flow of water passing through
the appliance.
.................................................................
.................................................................
................................................................
................................................................
.................................................................
................................................................
.................................................................
................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
.................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
