6.1.1 Housing External Ground Stud
The CIVACON Onboard Monitor Housing has an M6 External Ground Stud. This Ground Stud
is used to connect an APPROVALS REQUIRED #14 AWG (1.5 mm) External Ground Wire
between the Monitor Housing and Chassis Ground on the tanker. It is suggested that this
wire have a Green (or Green with Yellow Stripe) for proper identification as a “chassis
ground” connection. Tighten the Ground Stud Nut to 5.6 ft-lbs (7.6 N-m).

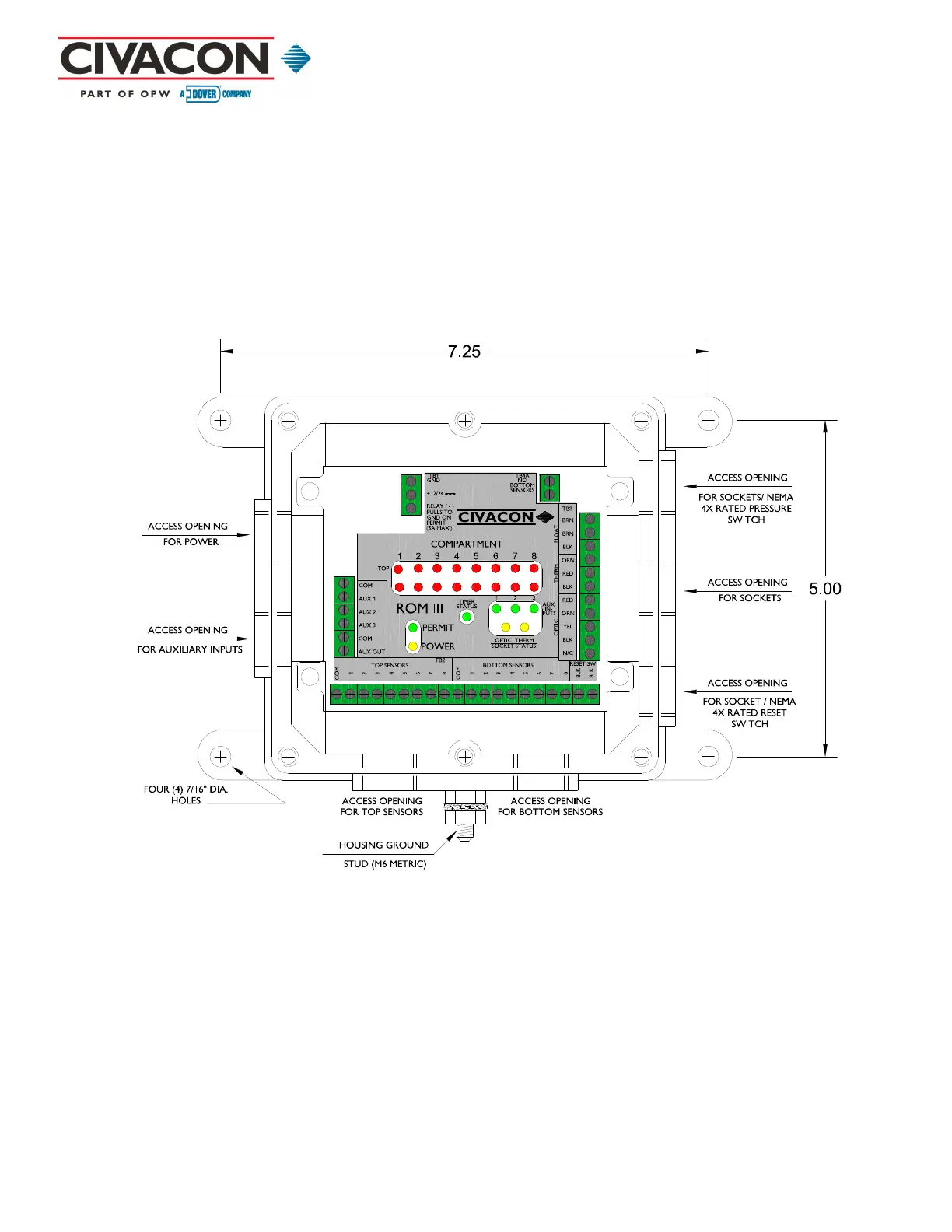

Figure 1: Mounting / Wire Entry – Models 3308-L and 3208-LIQ / 3308R-L & 3308R-LIQ
