9393PrincetonGlendaleRoad
Hamilton,Ohio45011
Revision1.2ROMIII“‐L”&“‐LIQ”Installation&OperationManualPageNo.9of15

Models 3308-L and 3208R-L Models 3308-LIQ & 3308R-LIQ

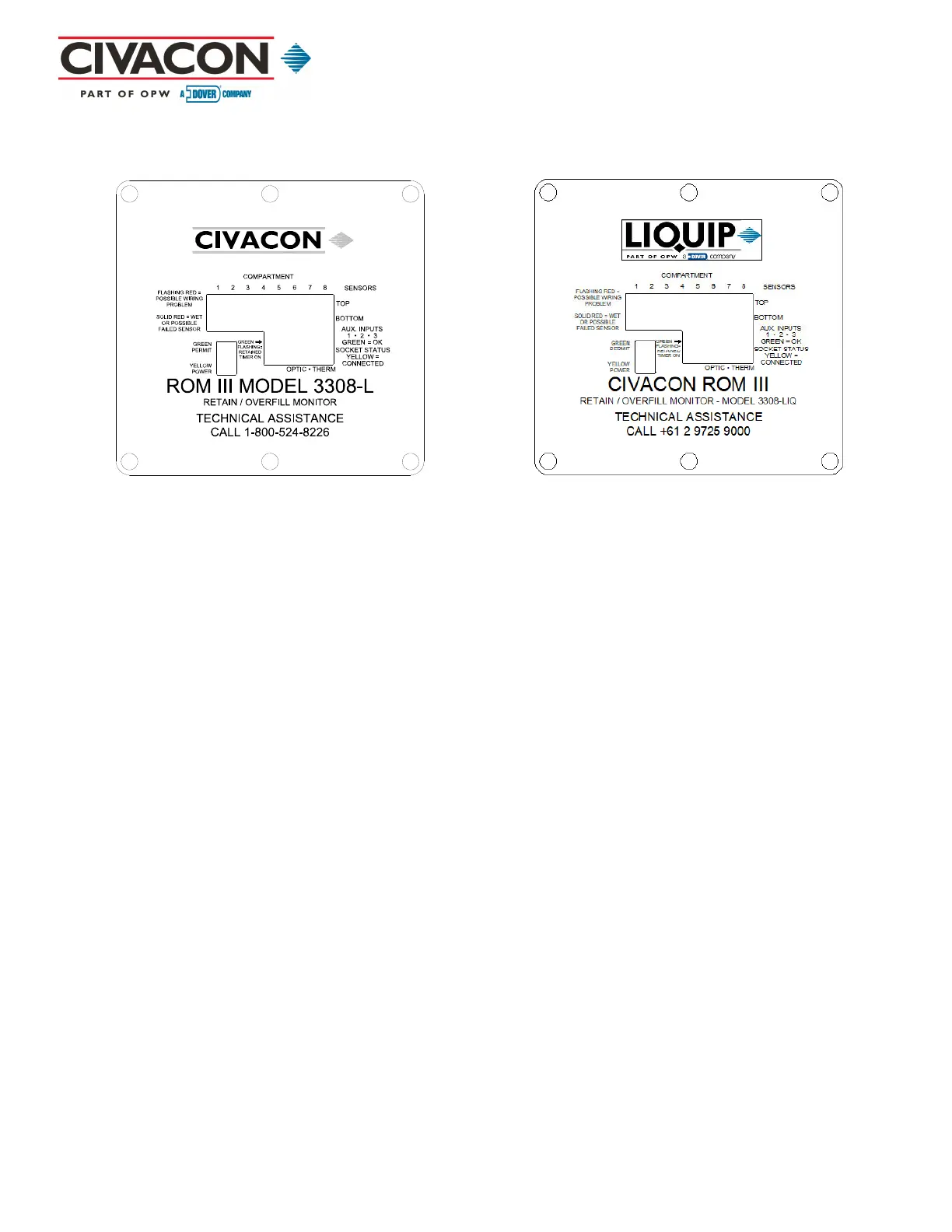

Figure 2: Front Window Graphics for “-L” and “-LIQ” Versions
6.2 Module Mounting Instructions
6.2.1 Replacing Module in Older ROM II Housing
Remove the old module place the 4 standoffs that came with the 3358-3358
module in the 4 holes that the screw of the 3252-3252 came out of. Place
module in the box and screw the module down.
6.2.2 Replacing a (this) 3358-L Module
Unscrew the 4 screw and remove the module. Replace with new module and
screw down the new module.
