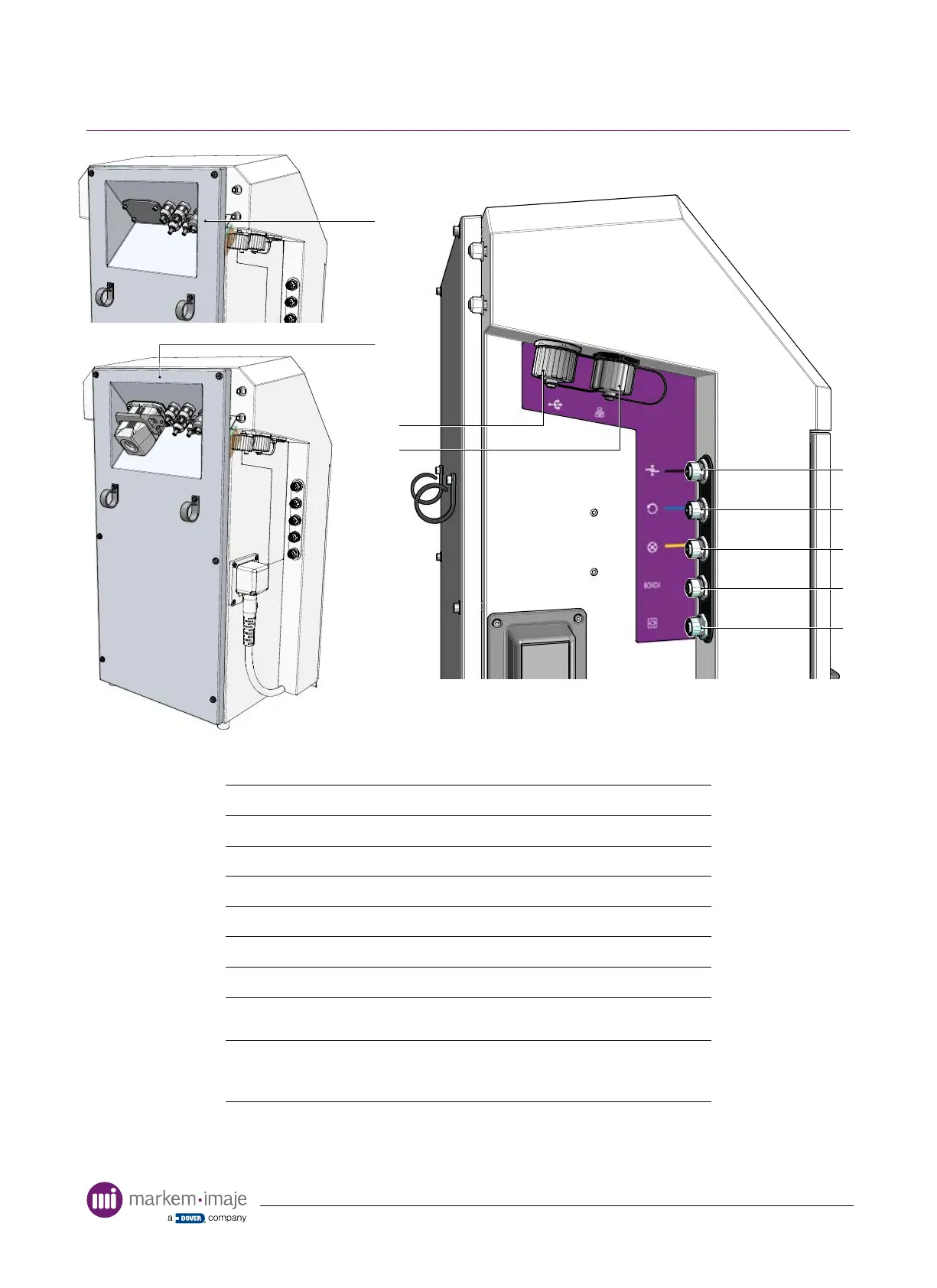

Dover markem imaje 9750 - Rear Panel Connections; Side View Ports

8
9
1
2
3
4
6
7
5
4 10114437-AB
1 Cell input M12 socket (black)
2 Encoder input M12 socket (blue)
3 Warning light output M12 socket (yellow)
4 Serial link RS232 connector M12 socket
5 Configurable I/O M12 socket
6 External USB port
7 Ethernet connector
8
Rear panel with Industrial interface card (4 cable glands - Serial/
Parallel and Ethernet link) - Optional
9
Rear panel with Industrial interface card (4 cable glands - Serial/
Parallel and Ethernet link + 24-pin connector) - Optional
Side viewRear view
(depending on options)
Printer overview
