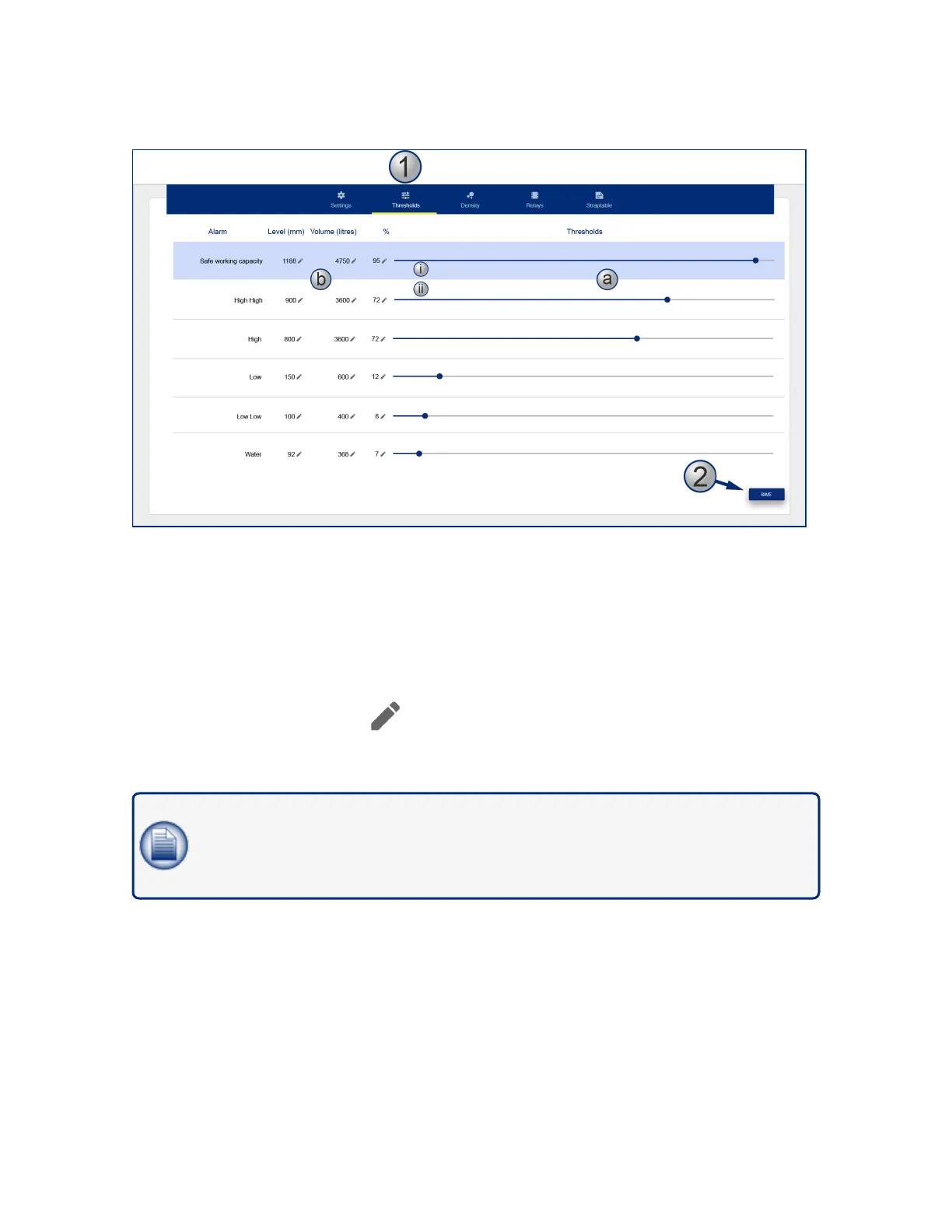

6.3.2 Thresholds
1. Select Thresholds from the configurations parameters. Use one of two methods to adjust each of
the parameter values:
a. Move the slider until you get the correct values.
i. The slider for Safe working capacity adjusts by %. The Level and Volume
values will adjust automatically.
ii. The slider for all other parameters adjusts by Level. The Volume and % values
will adjust automatically.
b. Click the Edit icon for one of the values. Enter the correct value in the pop-up. Click
OK to save the value. The other values for that parameter will adjust automatically.
2. Click Save when you complete the Thresholds configuration.
NOTE: .From the top Threshold down, each of the Threshold value sets (Level, Volume and
%) must be lower than the one above it. For example, the Low Threshold must have lower
values than the High Threshold. If the values are not set correctly, the SAVE button will not be
on.
M2051-EU Rev.: 1 Dover Fueling Solutions
Page 33
