OK
RZN 43xx-E
3/16
99.821.70 3.5/01/12
GKS
567
566
NBE
N+
24V=
VE
530
Service
USB/PC
F3,15A
F1,25A
F0,125A

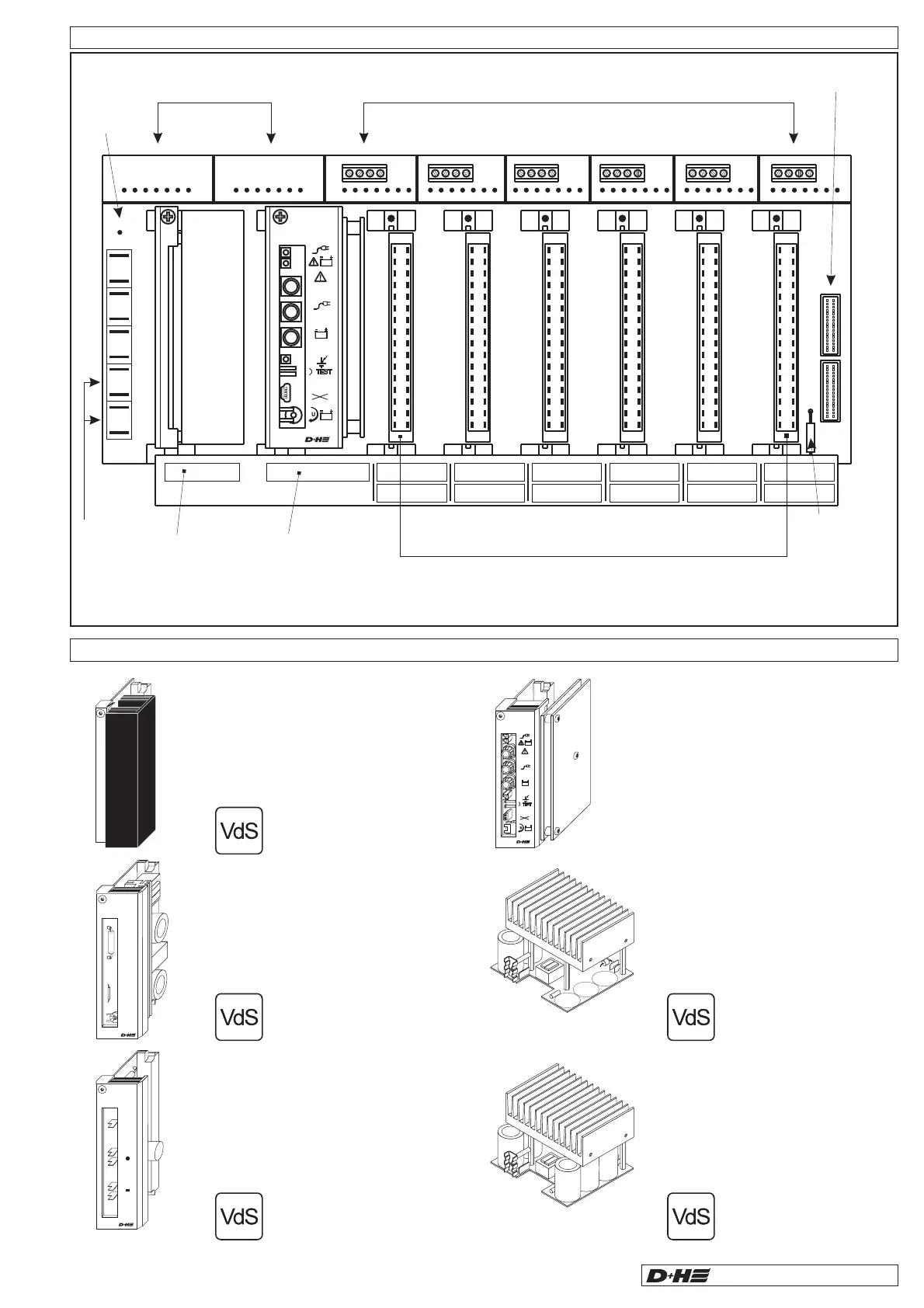

Motherboard
1234567
N
-
N
+
S
S
t
-
S
A
L
+
K
Z
Z
E1
1234567
N
-
N
+
S
S
t
-
S
A
L
+
K
Z
Z
E2
1234567 1234567 1234567 1234567 1234567 1234567
8 9 10 11 8 9 10 11 8 9 10 11 8 9 10 11 8 9 10 11 8 9 10 11
Bez.:
Bez.:
Bez.:
Bez.:
Bez.:
Bez.:
Bez.:
Bez.:
Bez.:
Bez.:
Bez.:
Bez.:
GK VE
Trafo
Trafo
+
+B
-
ERDA
E3
E4
optional functional extension by modules
slots E1 and E2
earthing
optional functional extension by modules
for extension of control panel
(ribbon cable required)
fire recognition
element
(thermal maximum
detector) *
free slots for LE/ GE/ WE/ AE/ SE 622
battery
connection
rectifier card GK
power supply
plug-in unit VE
* Monitoring the inner temperature of the controller.An emergency opening of the complete smoke and heat
ventilation system, under alarm conditions, will occur if the inner temperature exceeds 72°C, caused by the radiant
heat from a fire in the immediate vicinity of the installation location.
VE
530
Service
USB/PC
F3,15A
F1,25A
F0,125A
Rectifier card GK
1 x per control panel
2 x per control panel
up to an overall power of 32A
or
up to an total current of 64A
(2 motherboards).
Supply plug-in card
VE 520 / VE 530
1 x per control panel
Monitoring of
- grid
- battery voltage
- battery charging voltage
- earth leakage protection.
Stabilization GKS 567 *
to stabilize the output voltage when
connecting an external drive.
Output current : 16A
Output voltage : 24VDC ±10%
Residual ripple : 10%≤
Mains-battery-plug-in unit NBE 566
Stabilization GPS 566/32 *
to stabilize the output voltage when
connecting an external drive.
Output current : 32A
Output voltage : 24VDC ±10%
Residual ripple : 10%≤
Stabilization GPS 566/64 *
to stabilize the output voltage when
connecting an external drive.
Output current : 64A
Output voltage : 24VDC ±10%
Residual ripple : 10%≤
General plug-in
