Supply plug-in card VE 520 / VE 530
Servicetimer:
An overdue maintenance of the system will be indicated by the control
panel after about ca. 14 to 16 months. If connected to "Malfunction 1" or
"Malfunction 2" the yellow LED in the RT 45 will start flashing.
A malfunction of the smoke vent system will be still indicated by the
extinction of the green LED in the RT 45.
The ventilation function OPEN can be interrupted for up to 2 groups via
the connections "LT In" and "LT Out" after the maintenance time is
expired. This function can be deactivated via the servicetool.
Attention: Reset of the service timer can be carried out by a
specialist company only, who has been authorized by the appliance
manufacturer.
close
red
green
yellow
line
control
close
control
line
line
malfunction
close
malfunction
line
control
close
Malfunction 1
Malfunction 2
Smoke vent button
Connecting the
RT 45 malfunction LED
for displaying the
servicetimer
close
open
close
open
open signal (only -SD)
Malfunction 1
Malfunction 2
Vent button
Interruption of the
vent button function
OPEN after the
servicetimer
elapsed

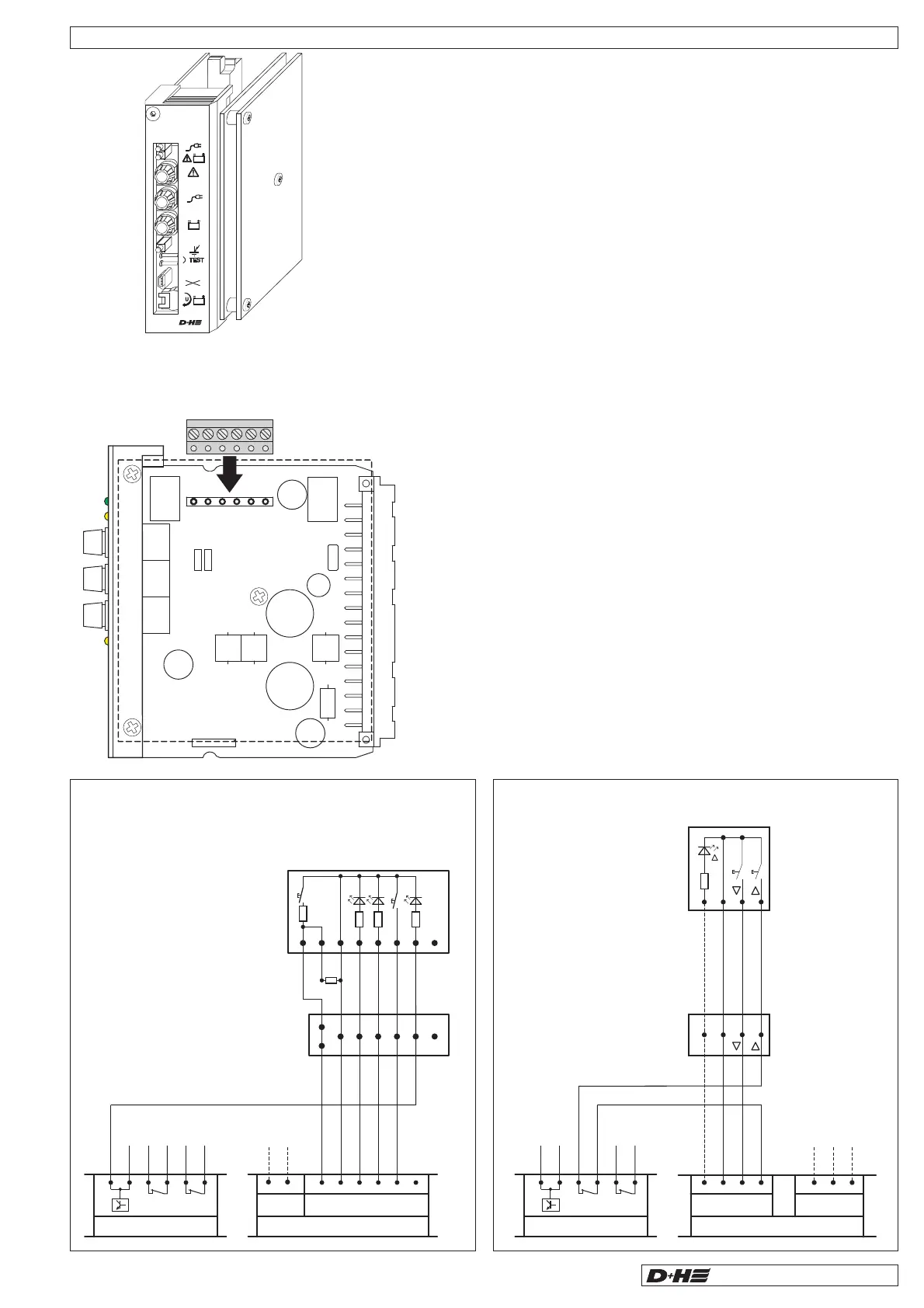

Supply plug-in card
VE 520 / VE 530
1 x per control panel
VE 520 : Control panels up to 16 A
VE 530 : 32 AControl panels from
Monitoring of
- Grid
- Battery voltage
- Battery charging voltage
- Earth leakage protection.
Integrated Servicetimer
- Programmable interval
- 2 Malfunction outputs (e.g. for RT 45)
- 2 floating outputs for disconnecting the ventilation function
- Reset via PDA-Servicetool or BI-BT 2
Functions:
Malfunction 1
Malfunction 2
LT Out 1
LT In 1
LT Out 2
LT In 2
alarm
alarm
alarm
