D+H RZN 43-E Series User Manual

min
15
2
45
30
sec
20
2
60
40
628 V2
GE
M
F8,0A
min
15
2
45
30
sec
20
2
60
40
12345678
9
10
ON
8/16
RZN 43xx-E
Encoding GE 628 (-L) V2
Attention:
When group-DIP-switch 8 is ON, the smoke vent is re-triggered during a period of 30 minutes at intervals of 2 minutes in accordance with VdS
2581, based on the set alarm direction (see DIP-switch 6). Therefor, the drive must be safeguarded against blockage in accordance with VdS 2580
Part 4.7. . All D+H drives meet this precondition. Otherwise DIP-switch 8 must be switched on OFF.

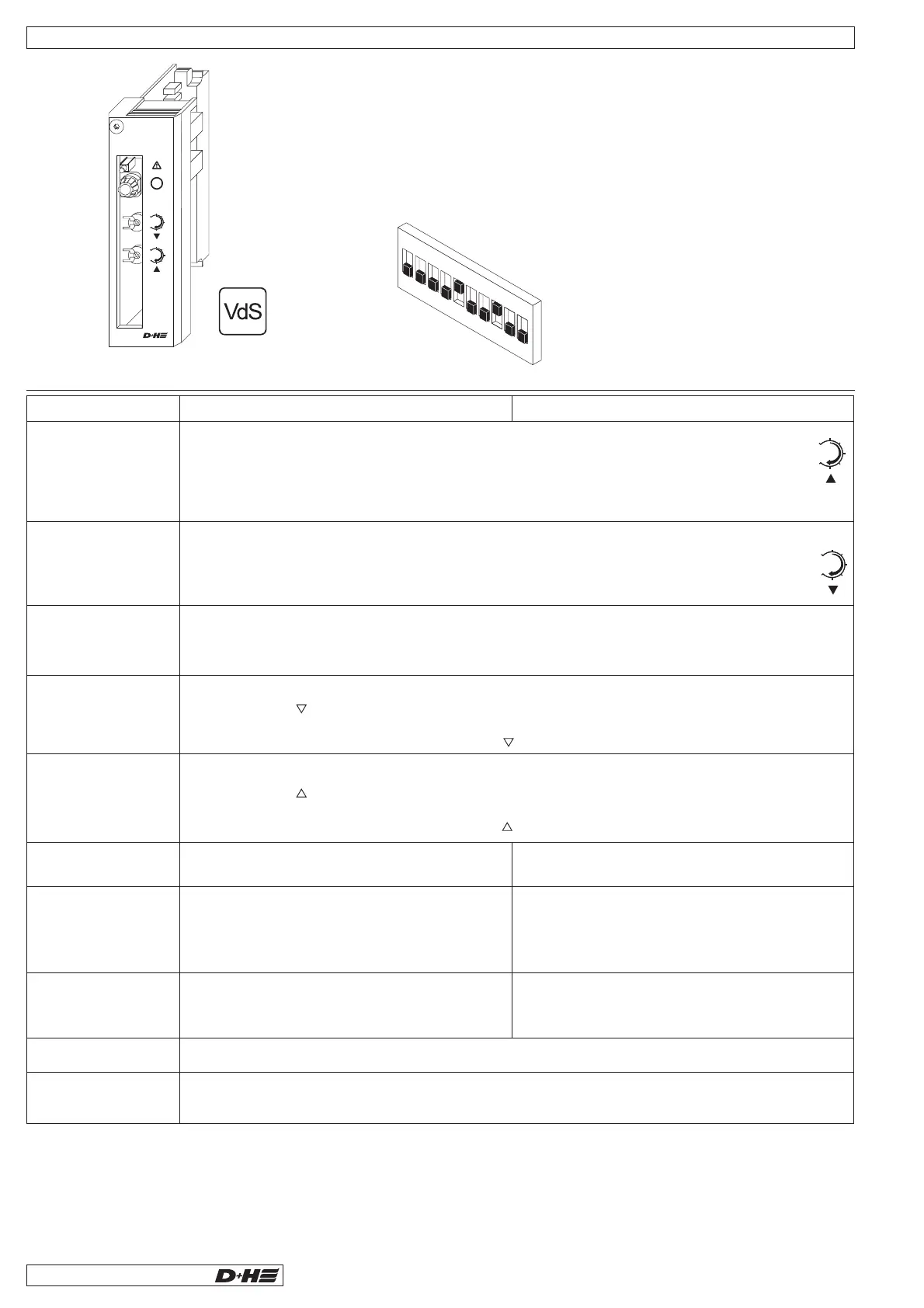

Group plug-in card GE 628 (-L) V2
GE 628-L V2
- drives up to max. 10A can be connected to
a group plug-in card
- possibility of combination with further
groups
- adjustable ventilation time limitation and
OPEN-running time limitation
- for control of ventilation drives
DIP-switch
factory setting
Group plug-in card GE 628 (-L) V2
Only possible if DIP-switch 4 = ON (memory mode in CLOSED-direction). Ventilation time can be
set by using a potentiometer.
The drives / NSHEVs will automatically close again, after the set time has expired.
Only possible if DIP-switch 1 = ON (OPEN-running time limitation).
If DIP-switch 1 is switched to ON, the OPEN-running time limitation can be re-triggered again.
Press vent button once briefly. > The drives / NSHEVs will close to their final position.
The drives / NSHEVs will close as long as the vent button is pressed.
Press vent button once briefly. > The drives / NSHEVs will open to their final position.
The drives / NSHEVs will open as long as the vent button is pressed.
The drives/ NSHEVs will close in the case of alarm.
Only possible if DIP-switch 4 = ON.
In the case of power failure, the drives/ NSHEVs.
.
During a period of 30 minutes, the smoke vent is triggered
at intervals of 2 minutes in accordance with VdS 2581.
The group plug-in card can be triggered in OPEN-direction viaAz signals.
The group plug-in card can be triggered in CLOSED-direction via Zz signals.
GE 628 V2 GE 628-L V2
DIP-switch 1 on ON OPEN-running time limitation in ventilation operation
DIP-switch 2 on ON Ventilation time limitation
DIP-switch 3 on ON OPEN-retriggering
DIP-switch 4 on ON Storage operation in CLOSED-direction
DIP-switch 4 on OFF Tip operation in CLOSED-direction
DIP-switch 5 on ON Storage operation in OPEN-direction
DIP-switch 5 on OFF Tip operation in OPEN-direction
DIP-switch 6 on ON Group CLOSE in case of alarm - no function -
DIP-switch 7 on ON Power failure-CLOSE - only function, if control panel
has emergency
power supply -
DIP-switch 8 on ON Alarm re-triggering - no function -
DIP-switch 9 on ON
DIP-switch 10 on ON
If the vent button is actuated in OPEN-direction, the drives/ NSHEVs run for
the duration of the running time.
will close
(If for example a rain detector is connected,
the switch must be ON, otherwise no closing will take place.)
Only possible if DIP-switch 5 = ON (Storage operation in OPEN-direction).
Running time in OPEN-direction can be limited by using the potentiometer.
GE 628 V2
High-Speed function:
- for control of smoke and heat ventilation
drives in conjunction with the line plug-in
card LE 513
- Smoke and heat ventilation re-triggering
function
- group-fault display
- power failure-CLOSE function
All D+H drives with SHEV high-speed function
are supported. In daily ventilation operation, a
considerable noise reduction is achieved
through the reduced drive speed. In case of
SHEV the drives run - triggered through the
orange monitoring line - with a very high speed
to reach the OPEN position defined within 60
seconds at the most.
