SELF-FEEDING CHIPPER
Chapter 6: Chipper Accessories
Extended Top-Discharge Chute
The Extended Top-Discharge Chute enables you to better control the direction
of the discharged chips and allows you to direct them into a trailer or truck bed
for transport.
Tools Needed:
Two 1/2" Wrenches
INSTALLATION

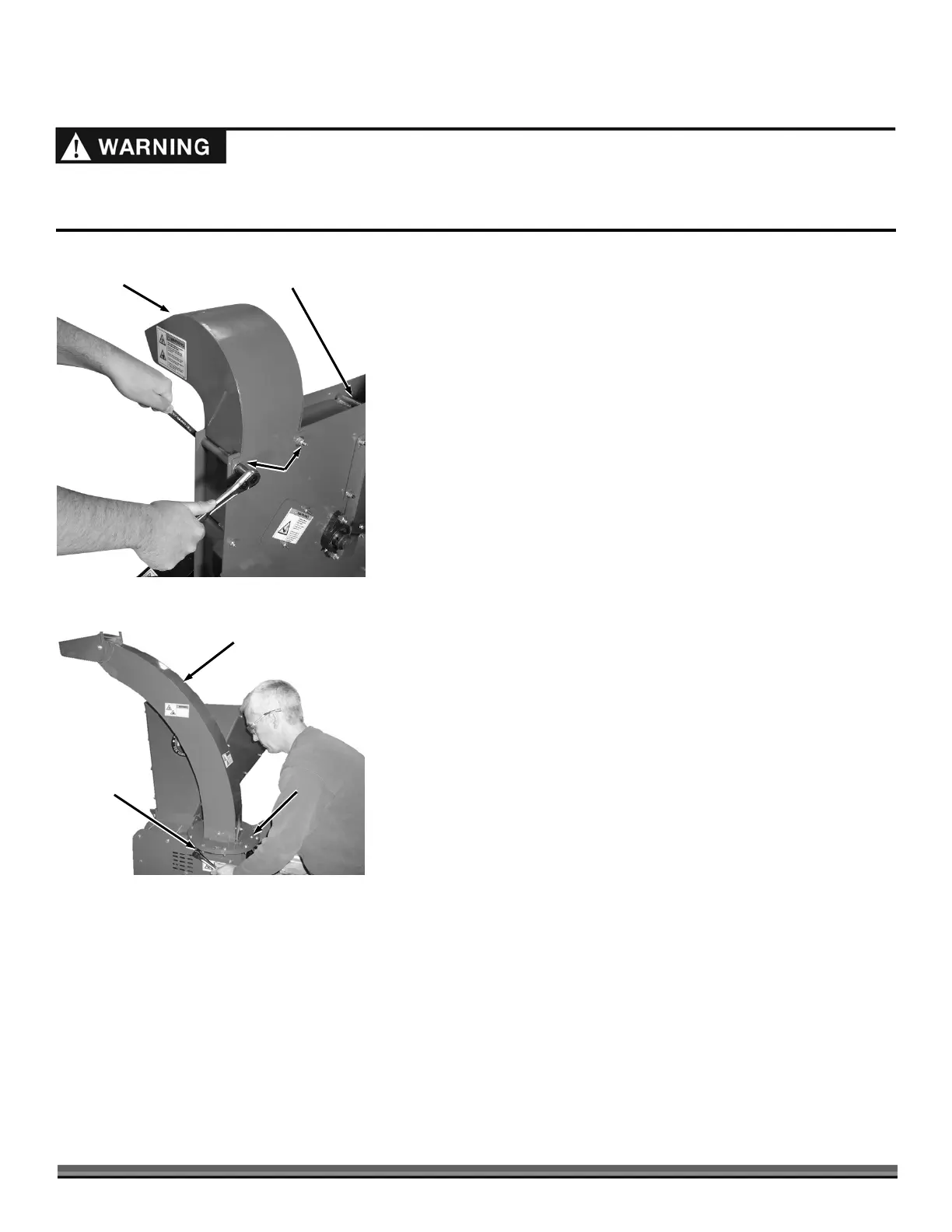

1. Remove the two Bolts and Locknuts from the Discharge Chute with two
1/2" wrenches (Figure 65).
2. Remove the Discharge Chute from the Chipper.
3. Position the Extended Top-Discharge Chute onto the Chipper with the
Locking pin on the outside (side furthest away from the hopper) (Figure 66).
4. Install the two Bolts and Locknuts and tighten with two 1/2" Wrenches.
Shut down the Engine (The flywheel will continue to rotate for a while after the engine is shut off), Wait 5 minutes for the engine
to cool and all moving parts to come to a complete stop, remove spark plug wire and disconnect the negative battery cable before
moving or working on the chipper.
Extended Top-
Discharge Chute
Figure 66
Locking
Pin
Bolt and
Locknut
(2 places)
Discharge
Chute
Bolts and
Locknuts
Scroll
Weldment
Figure 65
