Never transport engine inside an enclosed space within a
vehicle. Fuel or fuel vapors may ignite causing serious injury
or death.
Adjusting Wheels and Drag Stake
TO ADJUST WHEELS UP OR DOWN:
The wheels on the Tiller/Cultivator can be adjusted to one of
three positions (Figure 7). The LOW wheel position is used
for transporting the cultivator across a smooth level surface
while the engine is not running. The HIGH and HIGHEST
wheel positions are used when cultivating in soil and help
stabilize the unit when cultivating at different depths.
1. Pull the locking metal sleeve against the spring, away
from the vertical guide until it releases from one of the
three notched positions in the vertical guide (Figure 8).
2. Slide the wheel set up or down to the desired position,
and release the locking metal sleeve until it locks into
desired notch in the vertical guide.
TO ADJUST THE DRAG STAKE:
The drag stake is used to help regulate cultivating depth and
control the Tiller/Cultivator from leaping forward during
operation. Resistance to forward motion is greatest when the
drag stake is set in its lowest position allowing for deeper
cultivation.
1. Pull the pin out of the drag stake mount hole (Figure 9).
2. Position the drag stake so the pointed tip is directed
downward.
3. Insert the pin into the hole that achieves desired depth.
Transporting Your Tiller/Cultivator
1. After using the tiller/Cultivator, and before transporting it
in a truck bed, check that the gas cap is screwed on
(clockwise) tightly. The gas cap will not leak during
transporting if gas cap is tight.
2. If fuel is present in the fuel tank, transport in an open
vehicle in an upright position.
3. If an enclosed vehicle must be used, remove gas into an
approved red fuel container. DO NOT siphon by mouth.
4. Wipe away any spilled fuel from engine and
tiller/Cultivator. Allow to dry.
5. Run engine to use up the fuel in the carburetor and fuel
tank. Always run engine in a well ventilated area.

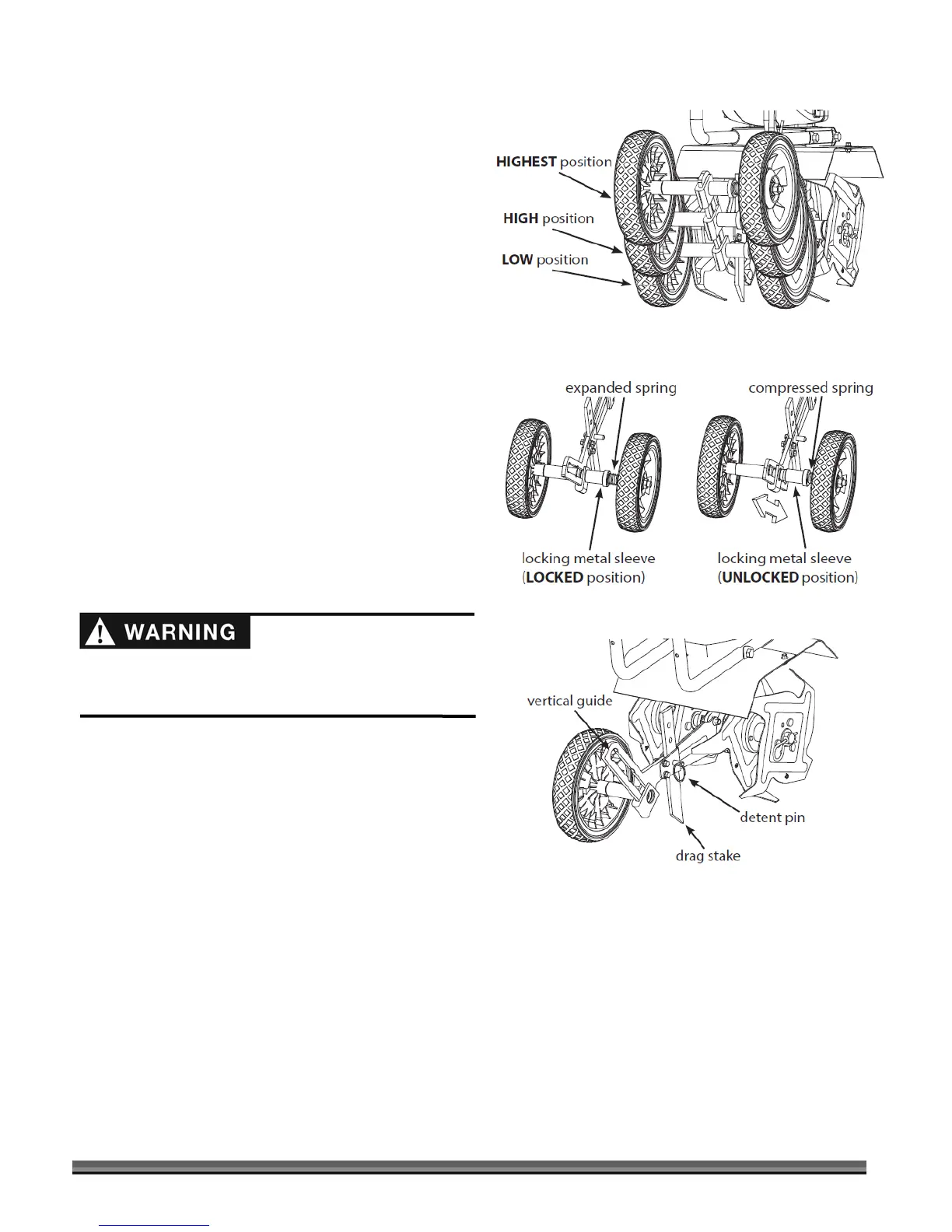

Figure 7
Figure 8
Figure 9
