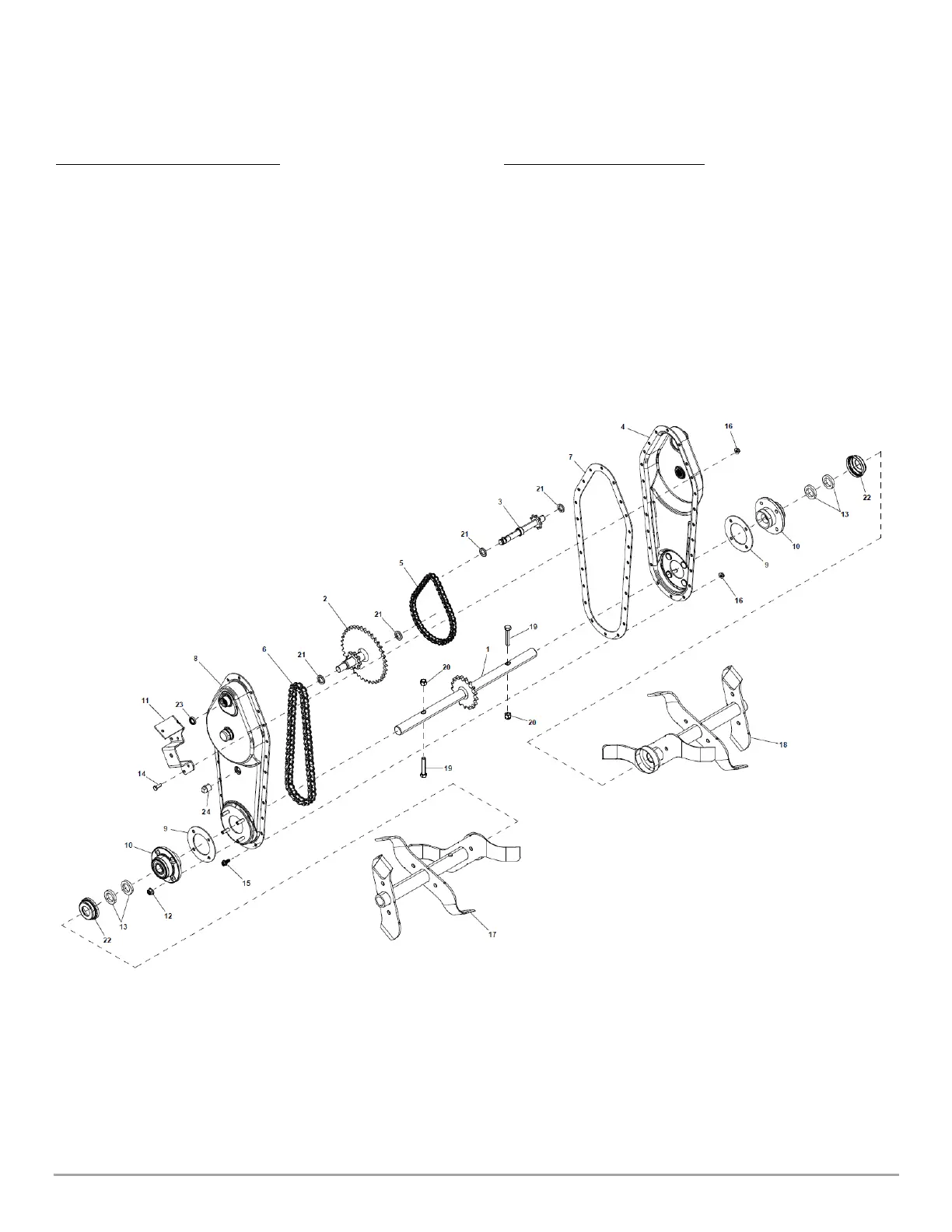

Parts List and Schematic Diagram -Tine Drive Transmission Assembly
NOTE: Part numbers listed are available through DR Power Equipment.
Ref# Part# Description
1 303150 Assy, Tine Shaft & Sprocket Tpt
2 233440 Assy, Idler Shaft TPT
3 330300 Input Shaft Assy, TPT Premier
4 233520 Drive Housing Assy, RH TPT
5 233450 Chain, Roller Short TPT
6 233410 Chain, Roller Long TPT
7 233490 Gasket, Drive Housing TPT
8 233530 Drive Housing Assy, LH TPT
9 233390 Gasket, Flange TPT
10 3031409 Bearing And Flange Assy
11 233470 Bracket-Belt Guard & Idler
12 233160 Nut, Hex, 5/16-18 Flanged Lock
13 233400 Felt Washer, .985 X 1.515
Ref# Part# Description
14 G022287 Screw, HHC, 1/4-20 X 3/4 GR5
15 365211 Bolt, Hex Flange, 1/4-20 X 5/8 ZP
16 233040 Nut, Flng, Hex 1/4-20 Center Lock
17 330320 Tine Assembly, (LH) TPT Premier
18 330330 Tine Assembly, (RH) TPT Premier
19 376470 Bolt, Hex, 3/8-16 X 2 FT GR2
20 110751 Nut, Lock, Nylon 3/8-16
21 233420 Washer, Thrust, .64 X .937
22 231380 Cap TPT
23 233540 Seal, Grease, 5/8 Id X 7/8 Od X .15 Thk
24 G026925 Plug, Std Pipe, 3/8 Steel Sq Hd
To Next Page
