DR Pro 475 User Manual

10 DR
®
SELF-FEEDING WOOD CHIPPER
Specifications
Models
PRO-475 - Manual and Electric Start Models
PRO XL-575
Engine
Briggs & Stratton (See Engine Manual for Engine
Specifications)
Briggs & Stratton Electric Start (See Engine Manual
for Engine Specifications)
Series
1650
2100
HP(Torque)
11.5 (16.5 Ft-lbs)
13.5 (21 Ft-lbs)
Chipping Capacity
4-3/4" Diameter
5-3/4" Diameter
Number of
Chipper Knives
1
1
Chipper Knife Size
6-1/4" x 1-1/4" x 9/32"
7-1/4" x 1-1/4" x 9/32"
Chipper Knife
Material
Heat Treated Tool Steel
Heat Treated Tool Steel
Wear Plate
Adjustable
Adjustable
Chipper Flywheel
17-3/4" Diameter x 5/8" Thick
20" Diameter x 5/8" Thick
Flywheel Weight
50 Lbs
62.5 Lbs
Chipper Knife Tip
Speed
128 mph
144 mph
Wheel Size
4.10/3.50-6 Pneu. (Yard-Tow Models)
4.80/4.00-8 Pneu. (Road-Tow Models)
4.10/3.50-6 Pneu. (Yard-Tow Models)
4.80/4.00-8 Pneu. (Road-Tow Models)
Axle
3/4" Diameter (Yard-Tow Models)
1" Diameter w/Welded Angle (Road-Tow Models)
3/4" Diameter (Yard-Tow Models)
1" Diameter w/Welded Angle (Road-Tow Models)
Hopper Opening
at Top
17" x 27"
19" x 30-1/2"

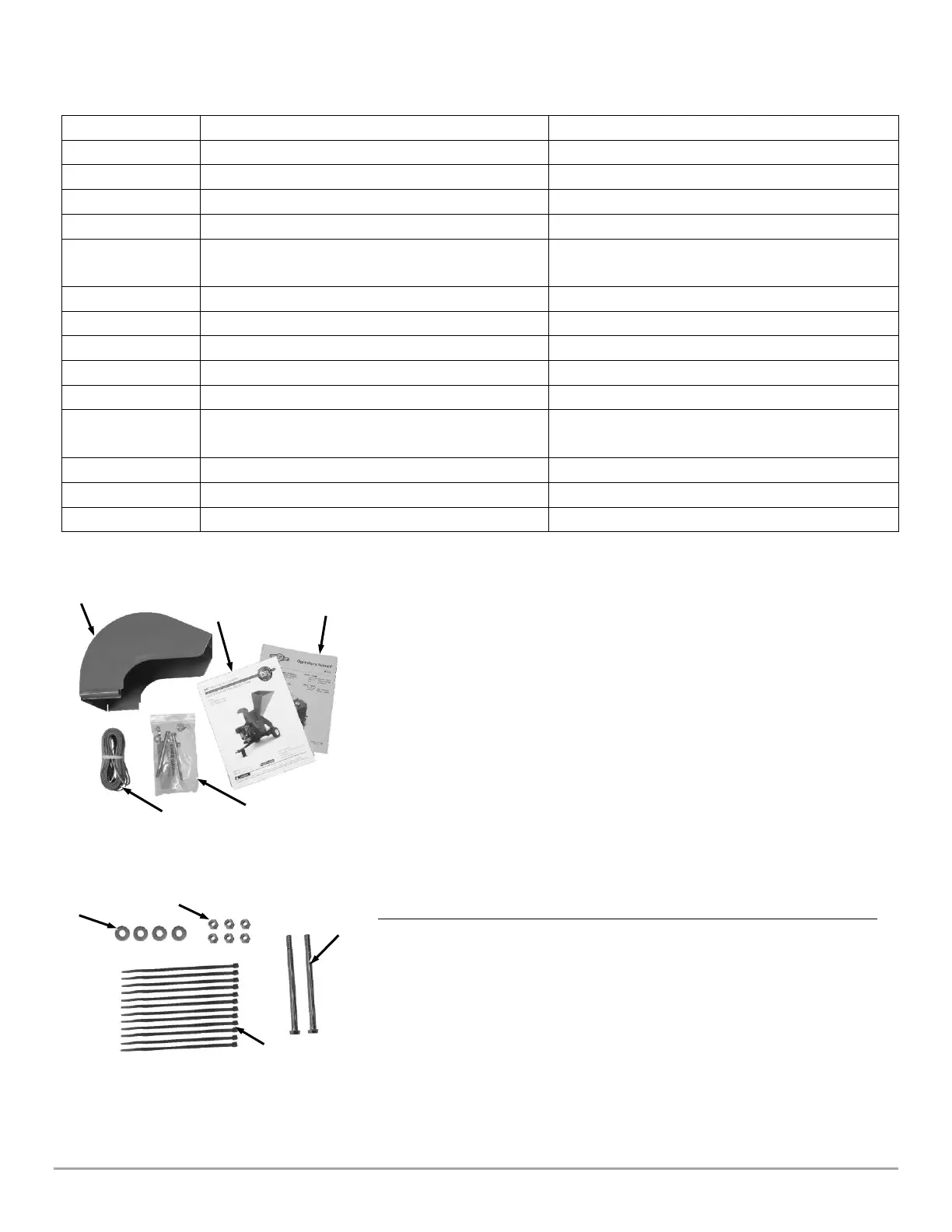

Assembly Parts Identification
Parts supplied in Shipping Crate:
• DR SELF-FEEDING WOOD CHIPPER
• Hopper Assembly
• Parts Box containing (Figure 2):
− Discharge Chute
− Safety & Operating Instructions Manual
− Engine Owner’s Manual
− Road-tow Wire Harness
− Hardware Package (see Figure 3 and Table below)
Hardware Package (Figure 3):
Item # Part # Description Qty
1 ........... 112411 ..... Flat Washer, 5/16" ...................................... 4
2 ........... 110761 ..... Nut, Nylon Lock, 5/16-18 ........................... 6
3 ........... 189801 ..... Bolt, 5/16-18 x 4-1/2", GR5 ......................... 2
4 ........... 112141 ..... Cable Tie ...................................................... 12
Compare the contents of the Shipping Crate and Hardware Package with the
“Parts Supplied” list above. If you have any questions, please contact us at
www.DRpower.com or call 1-800-DR-OWNER (376-9637) for assistance.
1
Figure 3
3
4
2
Discharge
Chute
Road-tow
Wire Harness
Safety &
Operating
Instructions
Manual
Hardware
Package
Engine
Owners
Manual
Figure 2
