Uncrating the PRO MAX 60T
Tools Needed:
• Crowbar
• Wire Cutter
1. Ensure the pallet is placed on relatively even ground and there is plenty
of room on the right side of the machine (when standing behind engine).
This will help the uncrating process as the pallet will need to completely
slide out from underneath machine once built.

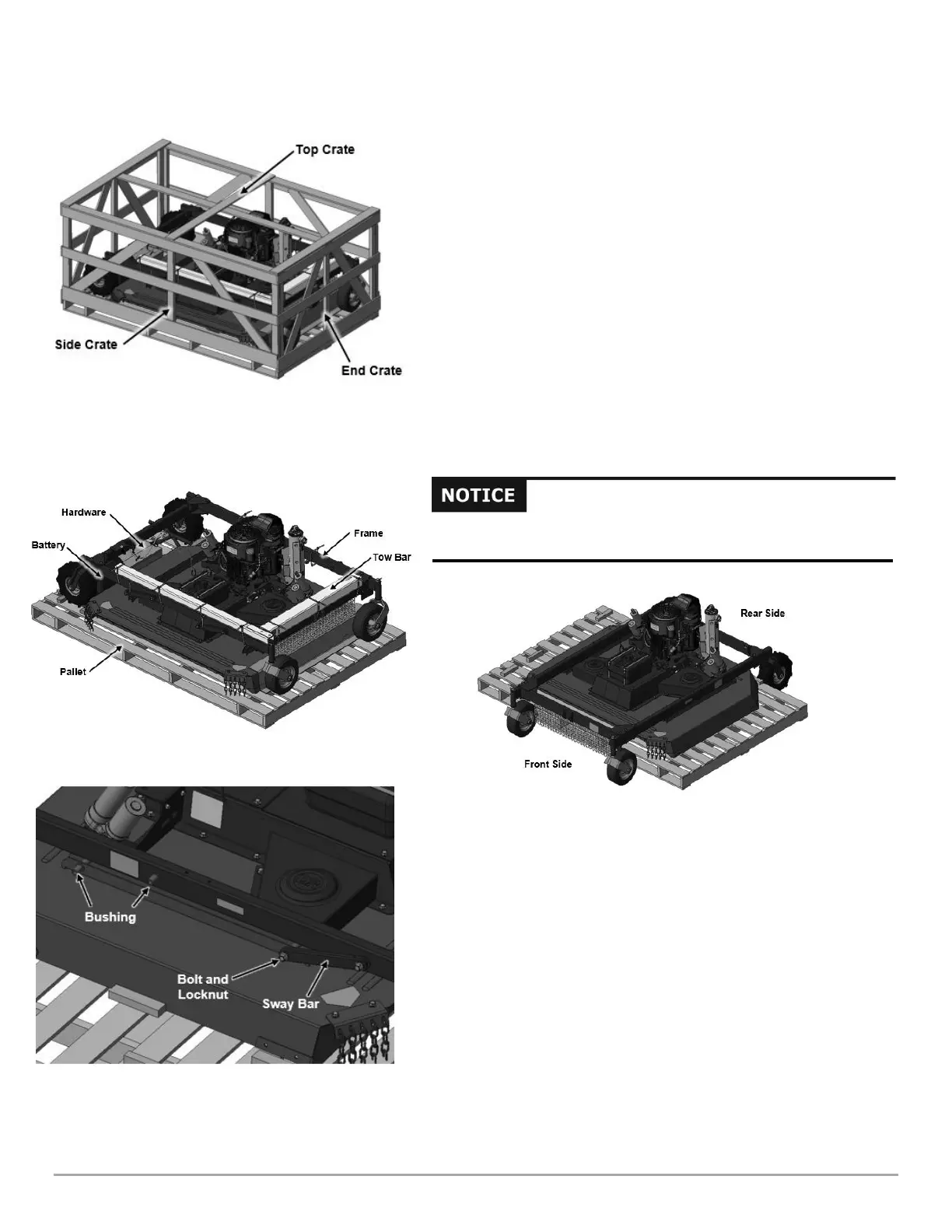

2. Remove Plastic and Bubble Wrap from outside of Wooden Box
(Figure 1).
3. Use Wire Cutter to cut Cable Ties from outside of crate and remove
side, top, and crate ends with help of the Crowbar.
4. Cut the cable ties that hold the frame and wheels to the pallet and loose
components (Figure 2).
5. With two people, lift Frame and rotate 90 degrees clockwise. Place
frame on Front side of Deck assembly, oriented as shown in
(Figure 3). Note the position of the Lugged tires behind the rear of
machine.
Attaching Frame to Deck Assembly
Tools Needed:
• Two ¾ in Wrenches
1. Insert all 8 bushings PN: 362891, 4 on each side of machine, going
through both frame and deck (Figure 4).
Note: Ensure long portion of bushing is oriented all the way through frame
and deck bracket.
2. Assemble all 4 sway bars onto the outside of the machine using
8 bolts PN: 365721 and 8 flanged nuts PN: 333351. (Figure 4).
3. Using two ¾ in Wrenches, tighten the Hardware to 35 ft-lb to ensure
sway bars are properly secured to deck.
Note: Ensure all Sway Bars are assembled on outside of Frame, as
shown in (Figure 4).
