14 DR
®
PRO XL520 CHIPPER SHREDDER

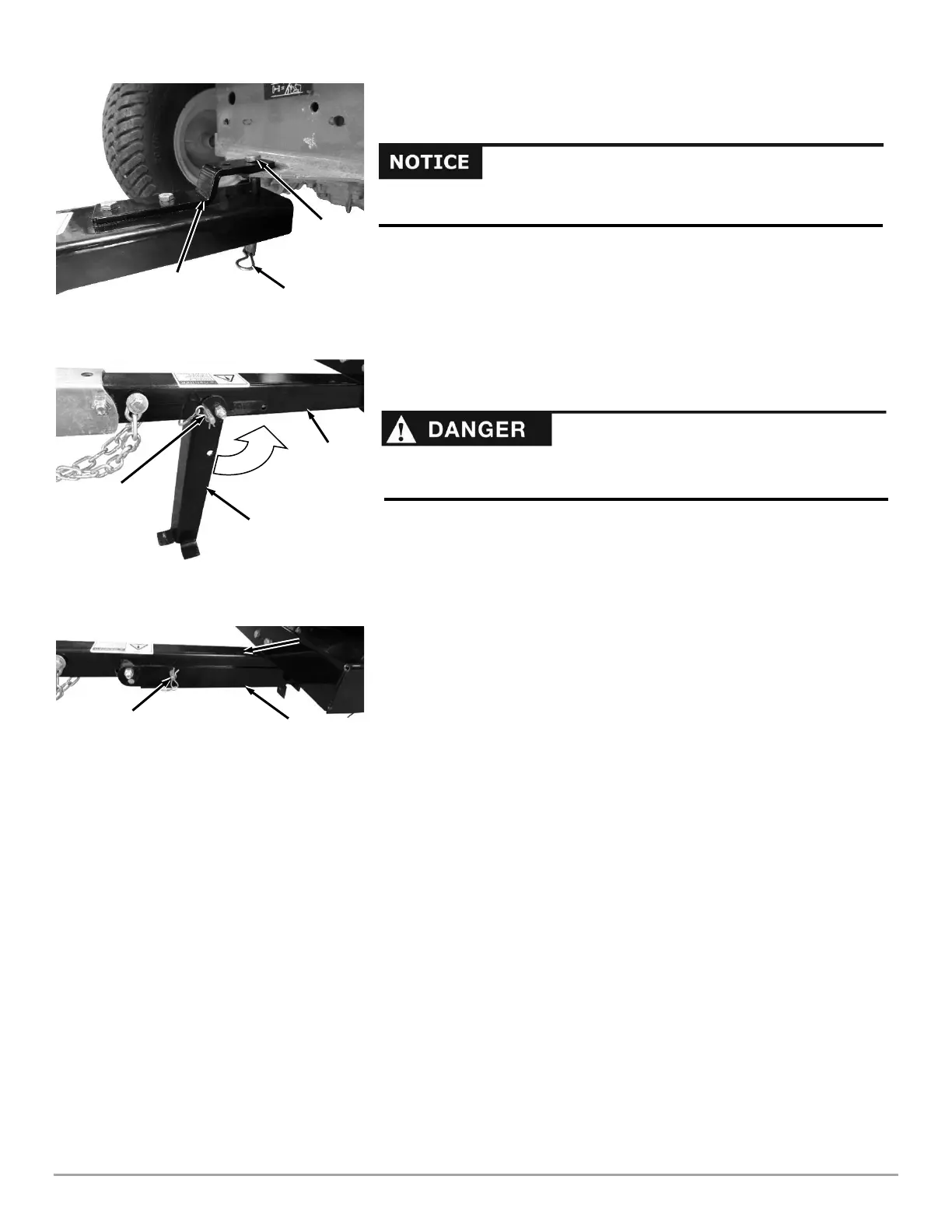

Connecting the PRO XL520 CHIPPER-SHREDDER to your Tow
Vehicle Hitch
1. Lift the Chipper Tow Bar onto the Tow Vehicle Hitch and install the Clevis Pin
and Hitch Clip to secure it (Figure 12).
2. Pull the Hitch Clip from the Clevis Pin and pull the Pin from the Support Leg
and Tow Bar (Figure 13).
3. Rotate the Support Leg to the up (transport) position, align the holes in the
Tow Bar and Leg, reinstall the Clevis Pin and secure with the Hitch Clip (Figure
14).
Tow Bar
Figure 13
Support Leg
Pin w/Hitch
Clip
Avoid death or serious injury. Do not exceed 10 mph when towing the Yard-
Tow model. Never tow the Yard-Tow model on roads.
Figure 12
Tow Hitch
Assembly
Clevis Pin
Hitch Clip
Always secure the Support Leg in the up (transport) position before towing to
prevent damage to the machine.
Figure 14
Support Leg
Pin w/Hitch
Clip
Tow Bar
