DR XD30 User Manual

10 DR
®
FIELD and BRUSH MOWER

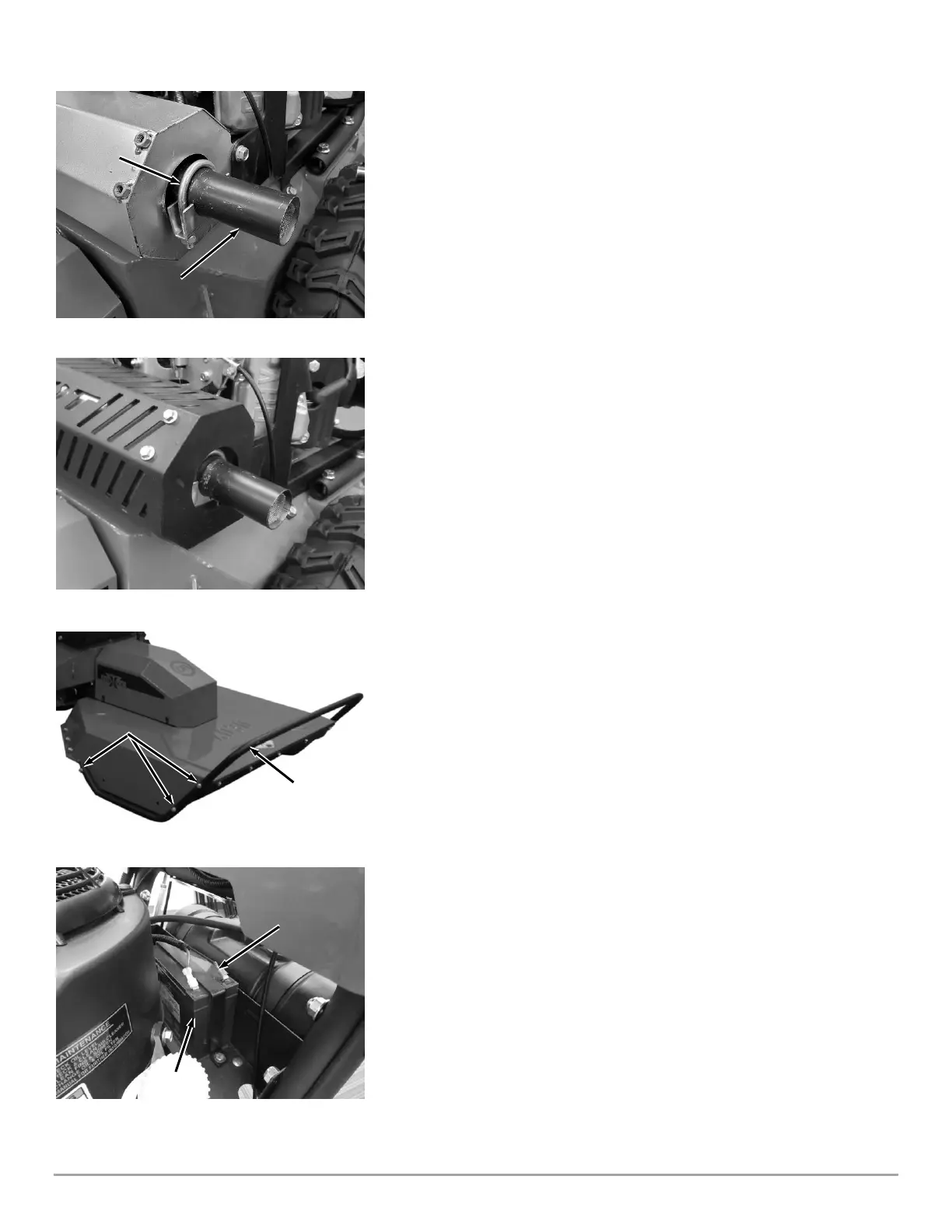

Figure 6
3. Insert the Screen into the Spark Arrestor Tube and position the larger end of
the Tube fully onto the Muffler (Figure 5).
4. Install the Clamp around the Spark Arrestor Tube and against the Inner
Muffler Guard. Secure using a 1/2″ Wrench.
5. Reposition the Muffler Guard over the Spark Arrestor first and then down
over the opposite end (Figure 6). Note: You may need to pull the end of the
Guard out as you position the Guard on the opposite side to clear the
Muffler.
6. Secure the Guard onto the Muffler with the four Bolts.
Installing the Brush Bar (XD30 Only)
Note: The XD26 model is shipped with the Brush Bar installed.
Tools and Supplies Needed:
 Gloves
 Wire Cutters
 Two 1/2" Wrenches
1. Cut the Cable Ties securing the Brush Bar to the Frame with Wire Cutters
and rotate the Brush Bar forward to align with the mounting holes at the
front of the Deck. (Figure 7).
Note: the XD30 model is shipped with Brush Bar mounting Hardware included in
the product package.
2. Secure the Brush Bar to the Deck with the six 5/16-18 X 1-1/4″ Bolts and
5/16-18 Locknuts. Note: Install all by hand first and then use two 1/2″
Wrenches to tighten.
Connecting the Battery Wire (Electric Start Models)
We ship all Electric-Starting Mowers with the negative terminal Battery wire
disconnected. This prevents the Battery from discharging during shipment.
Before using your Mower, you must connect the Battery wire.
1. Connect the negative (black) wire to the negative terminal on the Battery by
sliding the Connector onto the Terminal (Figure 8).
Figure 8
Negative
Battery Wire
Battery
Bolts and
Locknuts
Figure 7
Brush Bar
Spark
Arrestor
Figure 5
Clamp
