Dräger Alcotest 5510 User Manual

8 Dräger Alcotest 5510
Use

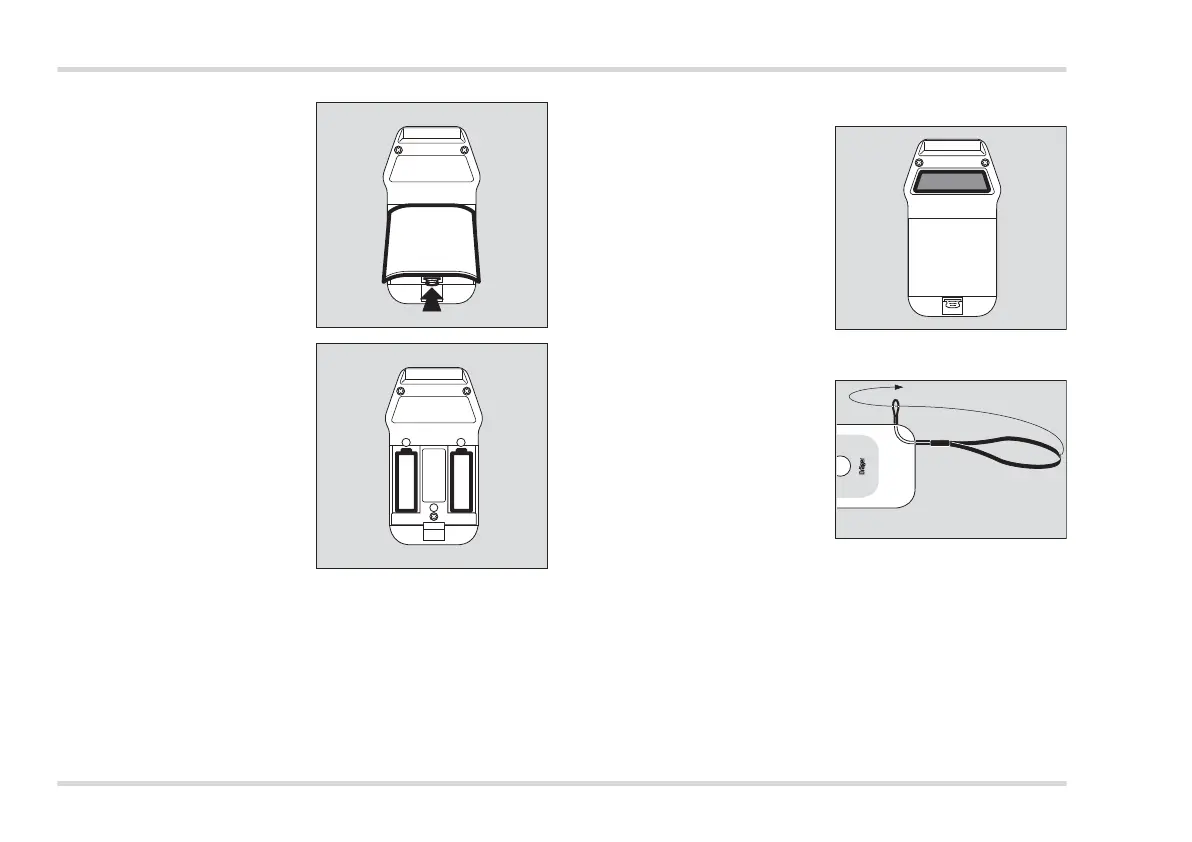

1. Press the catch on the battery
cover in gently and remove the
battery cover.
Observe the correct po
larity
when inserting the batteri
es.
2. Close the battery cover.
Required batteries:
 2 pcs. 1.5 V Alkaline
(LR6, AA)
or
 2x 1.2 V NiMH rechargeable
battery
3.2.2 Attaching the Quick Guide
There is a space provided for
the Quick Guide on
the rear of
the casing. Quick Guides in English,
German, French and Spanish are
supplied with the device.
1. Remove the appropriate label
fr
om the backing film.
2. Stick th
e label to the casing in
the space provided
.
3.2.3 Fitting the wrist strap
1. Pass the fastening cord of the
wrist strap through the hole in
the casing and form a loop.
2. Pull
the lower part of the strap
through the eye created.
00433390.eps
00533390.eps
+ +
00633390.eps
00733390.eps
OK
Alcotest 6510
