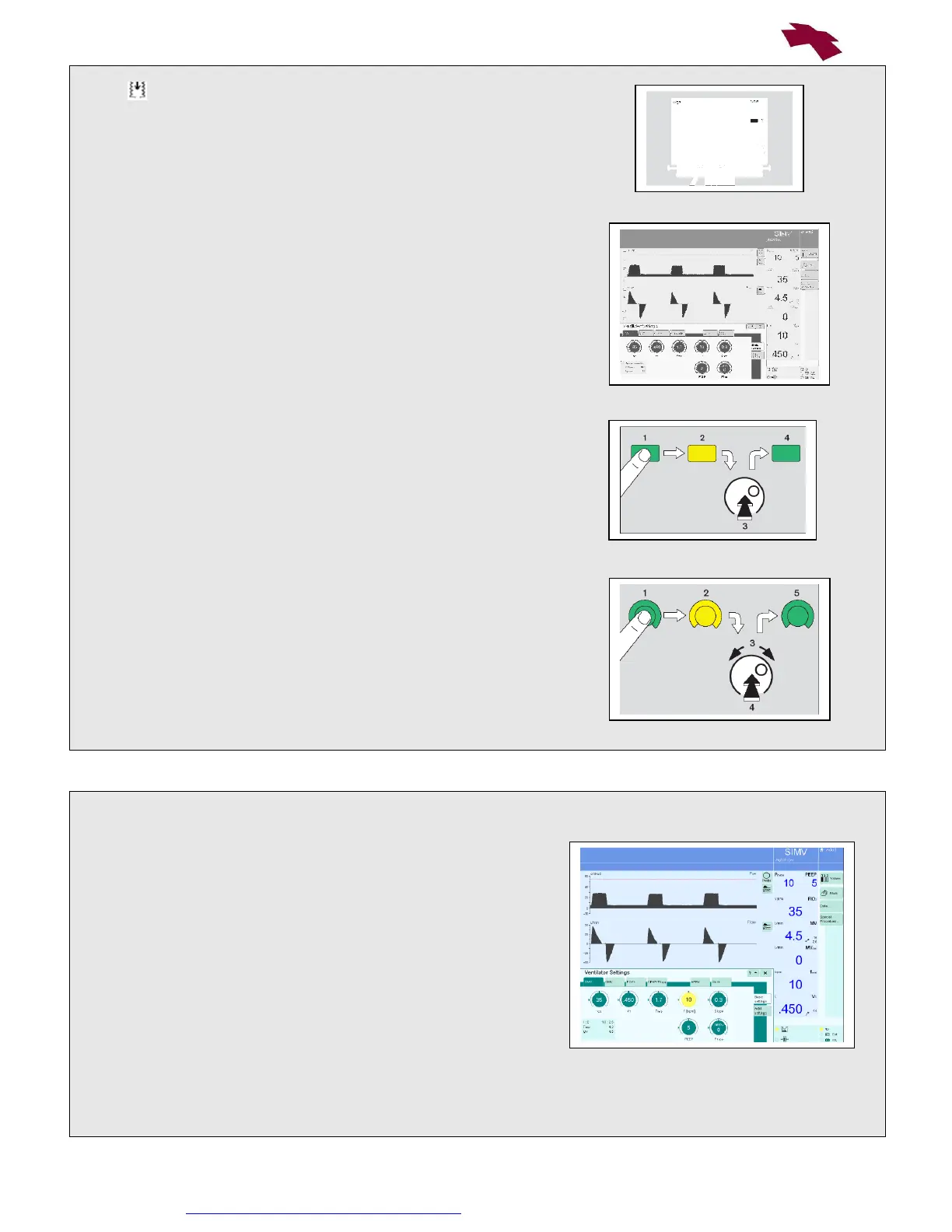

To set the ventilation mode, ventilation parameters:
1 Press Ventilator Settings« or
•
touch one of the virtual screen knobs at the bottom of the screen.
»Ventilator Settings« in the bottom part of the screen
• Screen knobs and screen keys are displayed in the form of horizontal and
vertical tabs as on a file catalog card.
• Horizontal screen keys for the ventilation mode.
•
Vertical screen keys for selecting supplemental settings.
Screen keys:
1 Touch a screen key to select it.
2 The screen key turns yellow.
3 Press dial knob to confirm.
4 The screen key turns pale/dark green, respectively.
Screen knobs:
1 Touch a screen knob to select it.
2 The screen knob turns yellow.
3 Turn dial knob to set.
4 Press dial knob to confirm.
5 The screen knob turns pale/dark green, respectively.
To set ventilation parameters directly:
From the main screen
Touch the desired screen knob
• displays the »Ventilator Settings« menu.
• The selected screen knob is already yellow and be adjusted
•
Turn dial knob to adjust setting, press dial knob to confirm.
• The color of the screen knob changes dark green –
• the setting is now in effect.
• To call up additional information texts:
Touch »
?
q« screen key.
To quit the menu:
Press »X« screen key.
09837547
