Checks of Readiness for Operation
• To be performed before using on a patient, to confirm ventilator is working properly, ready for operation.
• If the patient circuit is modified, the patient circuit leak test must be repeated.
1 Preparing the adult test lung 84 03 201
The test lung assembly consists elbow connector, a 7 mm diameter
ET-tube connector for simulating airway resistance,
2 liter breathing bag to simulate compliance.
NOTE: Do not use permanently stretched breathing bags,
these might cause artifacts
Insert the elbow connector into the Y-piece only when EvitaXL advises you to do so.
2 Preparing the infant test lung 84 09 742
for use with the infant patient circuit:
The test lung consists of a tracheal tube CH 12 to simulate
airway resistance and a small bellow to simulate compliance.
3 To switch ventilator ON, flip protective cover* up and press
• The self-test screen is now displayed on EvitaXL.
• The self-test is performed automatically.
• Wait for this test phase to be ompleted.
.
• Touch »Standby« and press dial knob to confirm.
• Standby activated !!! appears in the line for alarm messages.
• To reset this message: Touch »Alarm Reset« screen
• Touch dial knob and confirm
• Touch »Device Check« screen key:
Touch »Check« screen key.
NOTE: No device check is possible while
the ventilator is performing a calibration
of the flow or O2 sensor. In this case, wait
until calibration has been completed and
restart device check.

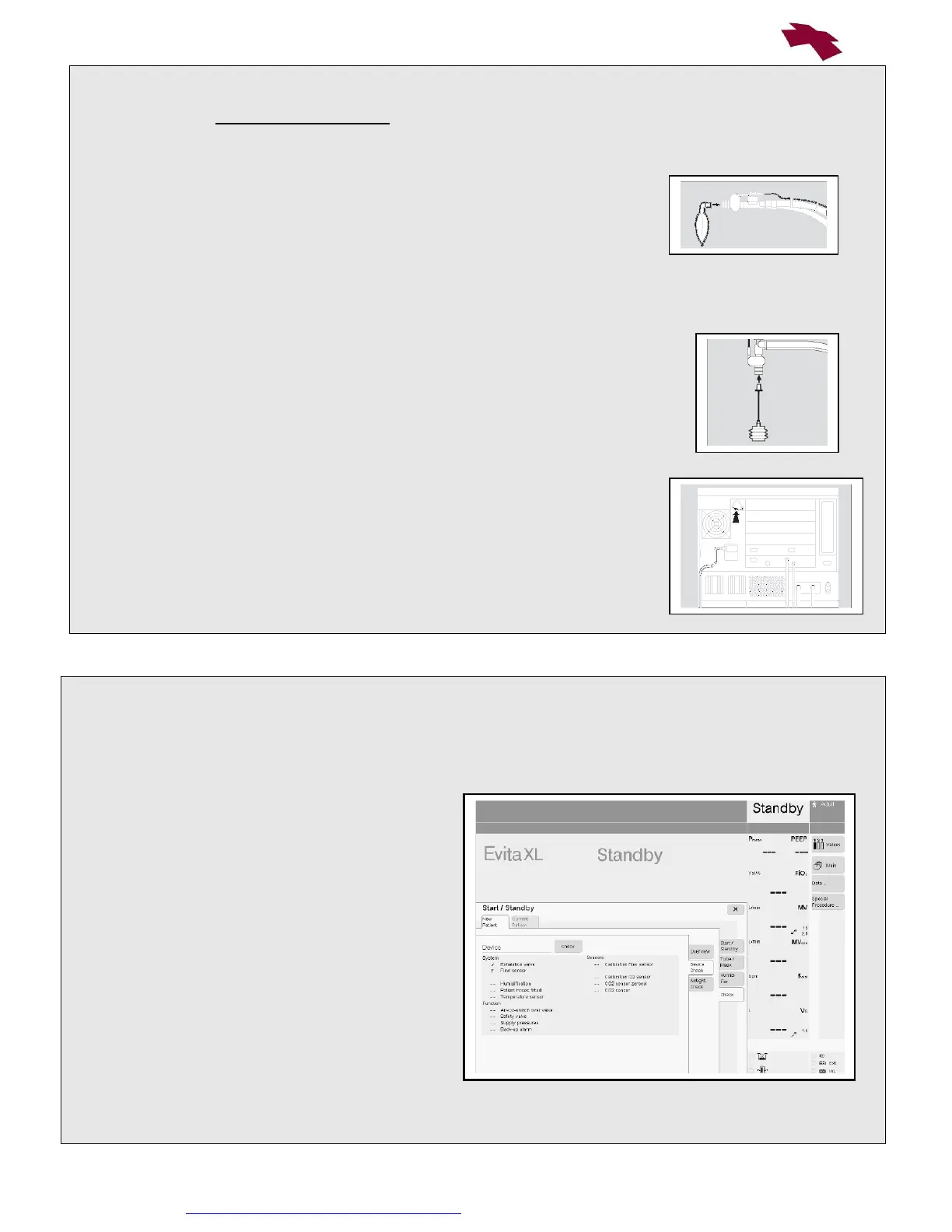

QUICK GUIDE TO DEVICE CHECK/LEAK TEST EVITA XL
