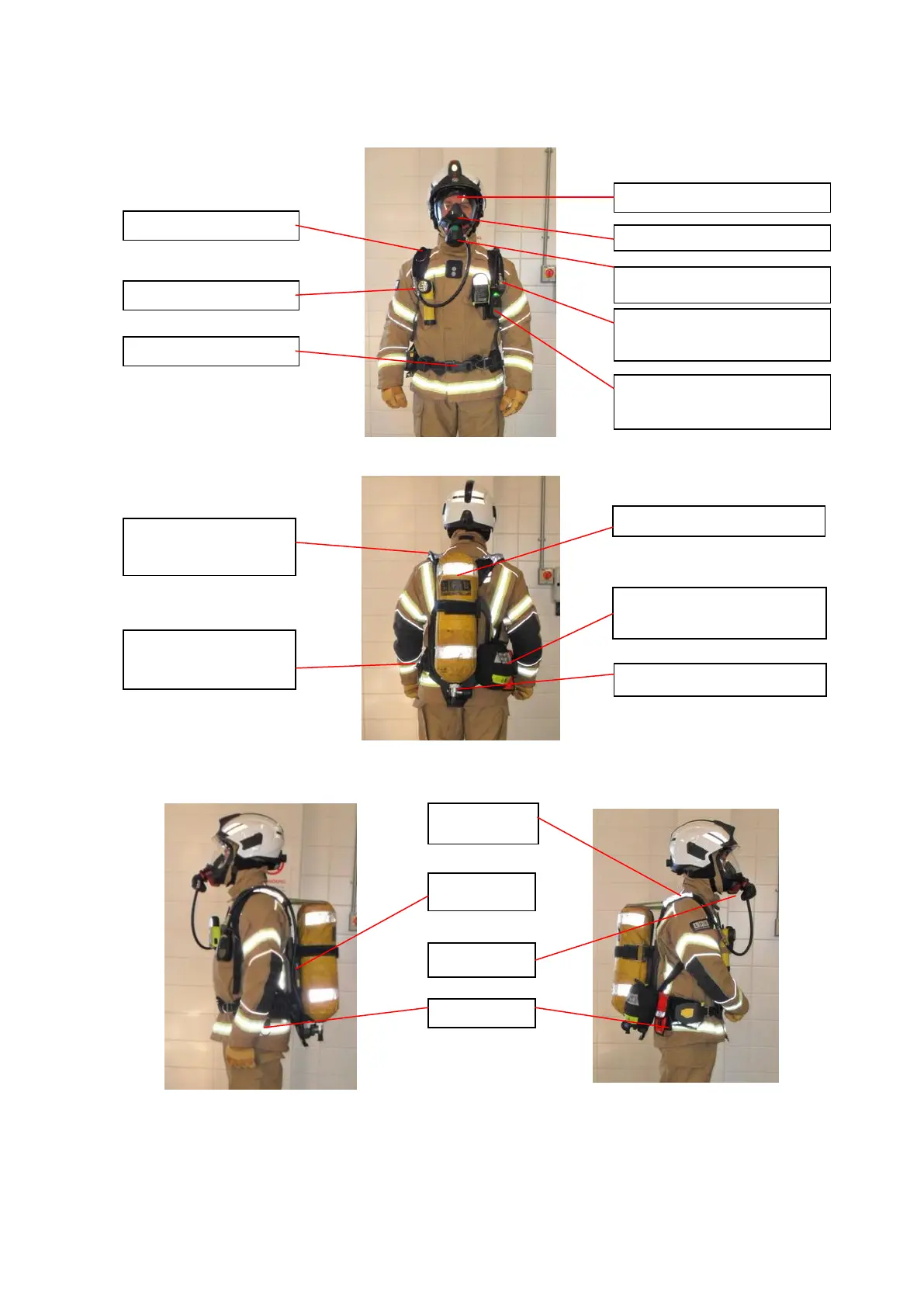

PSS 7000 SDBA set overview
In-line connection QRC
Waist belt
LFB image id 1136791
FPS 7000 dual purpose face mask
Inner mask
Lung demand valve, first breath
button and additional flow button
Second person connection QRC
Bodyguard 7000 user interface unit
(display), DSU button and low
pressure warning device
Padded shoulder harness
SDBA 8 litre cylinder and cover
BA personal line, escape hood and
BA cable cutter
Second person connection
and Bodyguard 7000 air
supply hoses
‘D’ ring for attachment of
personal line karabiner –
(available on both sides of set)
LFB image id 1136779
In-line connection
air supply hose
‘D’ rings
Exhalation valve
and cover
L
FB image id 1136795
LFB image id 1136793
Telemetry module
Cylinder valve group
