2 Component parts
2.1 The PSS 7000 – component parts

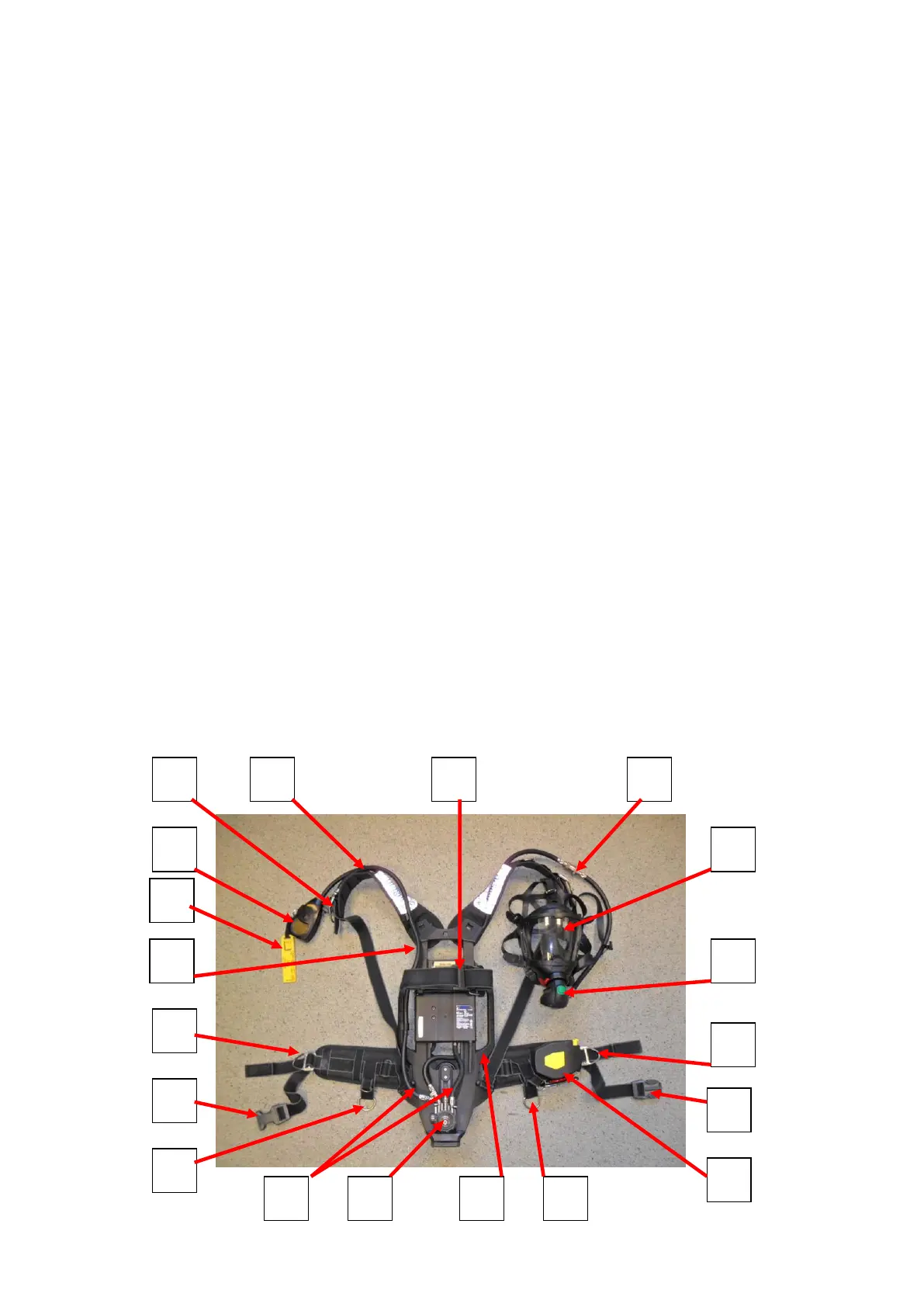

(a) Front view SDBA
1. Bodyguard 7000 user interface unit (display).
2. SDBA entry control tally (yellow).
3. Second person connection QRC.
4. Second person hose retaining clip.
5. Cylinder retaining strap and securing mechanism.
6. In-line connection QRC.
7. FPS 7000 dual purpose face mask.
8. Lung demand valve (LDV).
9. Waist belt adjustment buckles.
10. Waist belt buckle.
11. BA personal line housing, karabiner attached to small ‘D’ ring.
12. Backplate incorporating telemetry module.
13. First stage reducer incorporating cylinder connection.
14. Medium and high pressure hoses.
15. Waist belt ‘D’ ring for attachment of guide line bag and BA team personal lines.
16. Second person connection hose.
LFB image id 245590
