Appendix 4
476 Issue date: 17 November 2006 74 of 80

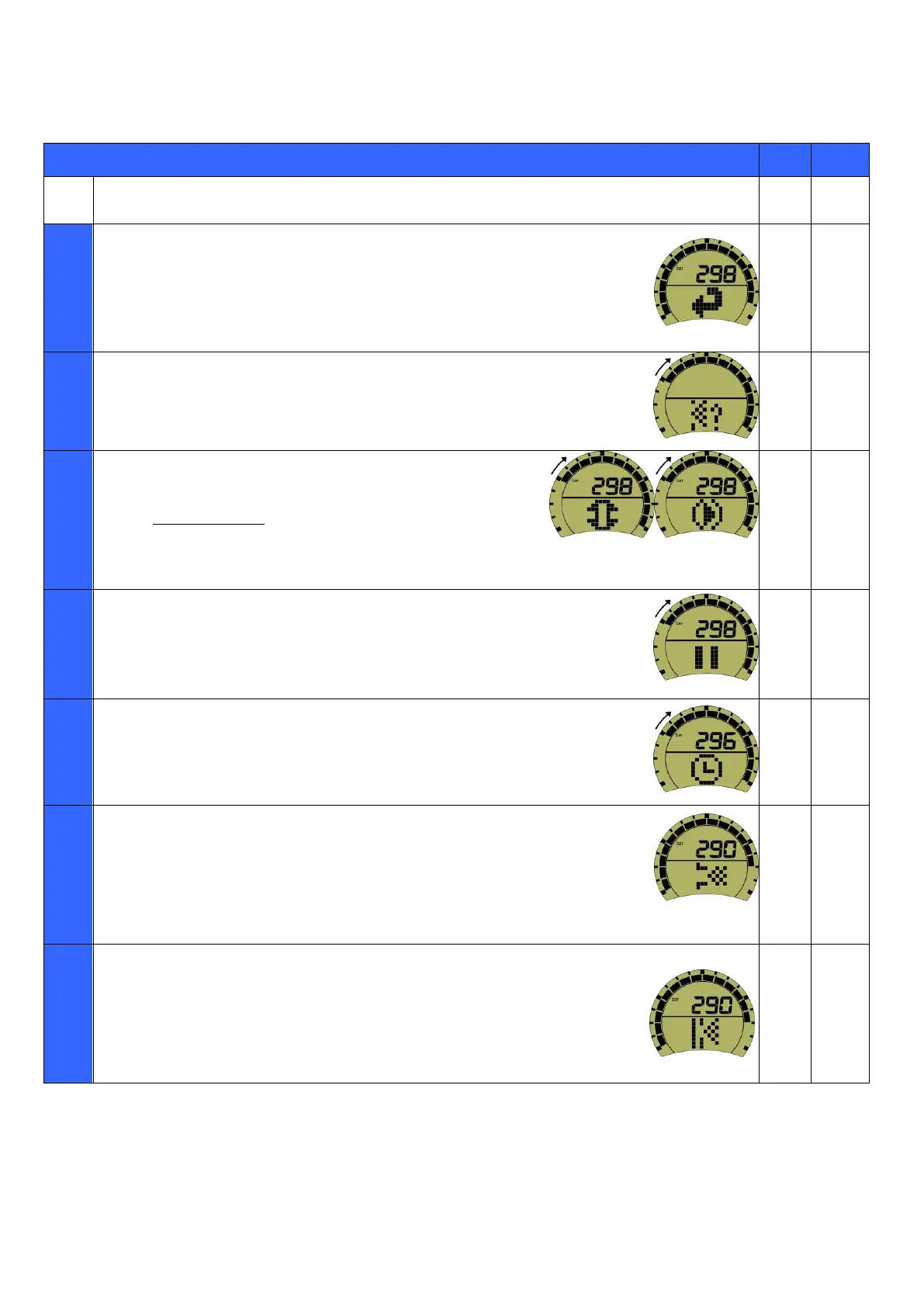

PRESS and HOLD the Bodyguard LEFT button until the ‘return arrow’ icon
appears.
Then RELEASE to start the ‘self-check’ sequence.
When the ‘leak test’ icon appears PRESS the LEFT button.
The ‘open cylinder’ icon momentarily appears before
display changes to ‘close cylinder’ and ‘press right’
button alternating icons.
CLOSE the cylinder valve and then PRESS the RIGHT
button to confirm.
WAIT – Stabilisation taking place.
‘Leak test timing’ icon appears for approximately one minute.
Bar segments progressively switch off clockwise.
Note: during the leak test a pressure drop of up to 10 bar is acceptable.
On completion, the ‘leak test passed’ icon is displayed.
Note: the ‘breathe down’ sequence should be completed within three
minutes of the ‘leak test pass’ icon being displayed. The timing out of
Bodyguard would necessitate the leak test being repeated . Re-open the
cylinder valve and repeat testing from EV 29.
If the: ‘leak test failed’ icon appears:
PURGE remaining air by operating additional flow button.
CHECK cylinder connection and LDV connection to face mask.
UNDERTAKE second leak test from EV 29 – If test fails again return set to
OSG as defective.
