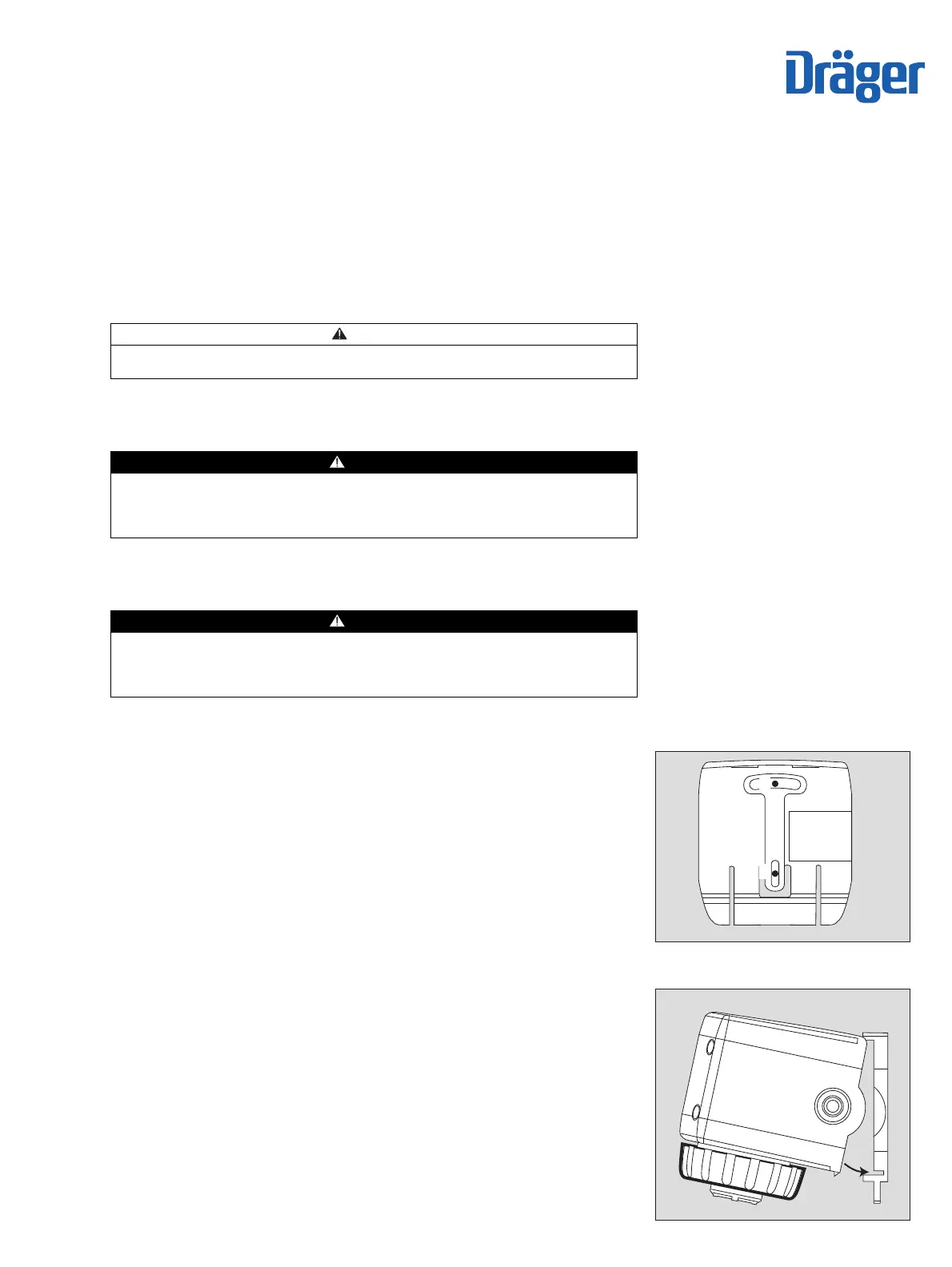

Remote Sensor, Installation Instructions
Operation of the Dräger Polytron 7000 with the remote sensor requires full understanding
and strict observance of the Instructions for Use of the Dräger Polytron 7000!
Intended use
Remote Sensor Adapter Polytron 7000 - 83 17 275:
— For installation of the sensor at a distance of up to 30 m from the
Polytron 7000 transmitter.
With:
— Remote Cable + Connector, 5 m Polytron 7000 – 83 17 270,
— Remote Cable + Connector, 15 m Polytron 7000 – 83 17 998,
— Remote Cable + Connector, 30 m Polytron 7000 – 83 17 999:
If a remote adapter and a remote sensor are used on a transmitter installed in
accordance with device category 3:
If a remote adapter and a remote sensor are used on a transmitter installed in a non-
explosion-hazard area:
Wall mounting
1 Drill the fixing holes for the mounting plate (drilling template: see the pale grey illus-
tration on page 2). The mounting holes are 50 ±4 mm apart.
Screw the mounting plate for the remote sensor in the desired position.
2 Fit the housing of the remote sensor onto the mounting plate so that it clicks into
place.
Installing the sensor
3 Unscrew the bayonet ring from the transmitter and remove the blanking disc.
Remove sensor from packaging.
Insert the sensor in the opening with the "Dräger" logo pointing to the front.
Secure the sensor with the bayonet ring.
CAUTION
The cable length of the remote adapter may be shortened on the connector side.
The cable may not be extended. The use of a different cable is not permitted!
WARNING
Explosion hazard!
Remove the Category 1 marking from the transmitter. After being installed in the
manner described here, the accessory may never be used in explosion-hazard areas
of zone 0 or zone 1 (device category 1 or 2)!
WARNING
Explosion hazard!
Remove the explosion-protection marking from the transmitter. After being installed in
the manner described here, the accessory may never be used in explosion-hazard
areas!
001237611.eps
1
1
002237611.eps
2
3
