Dräger UCF Thermal Camera

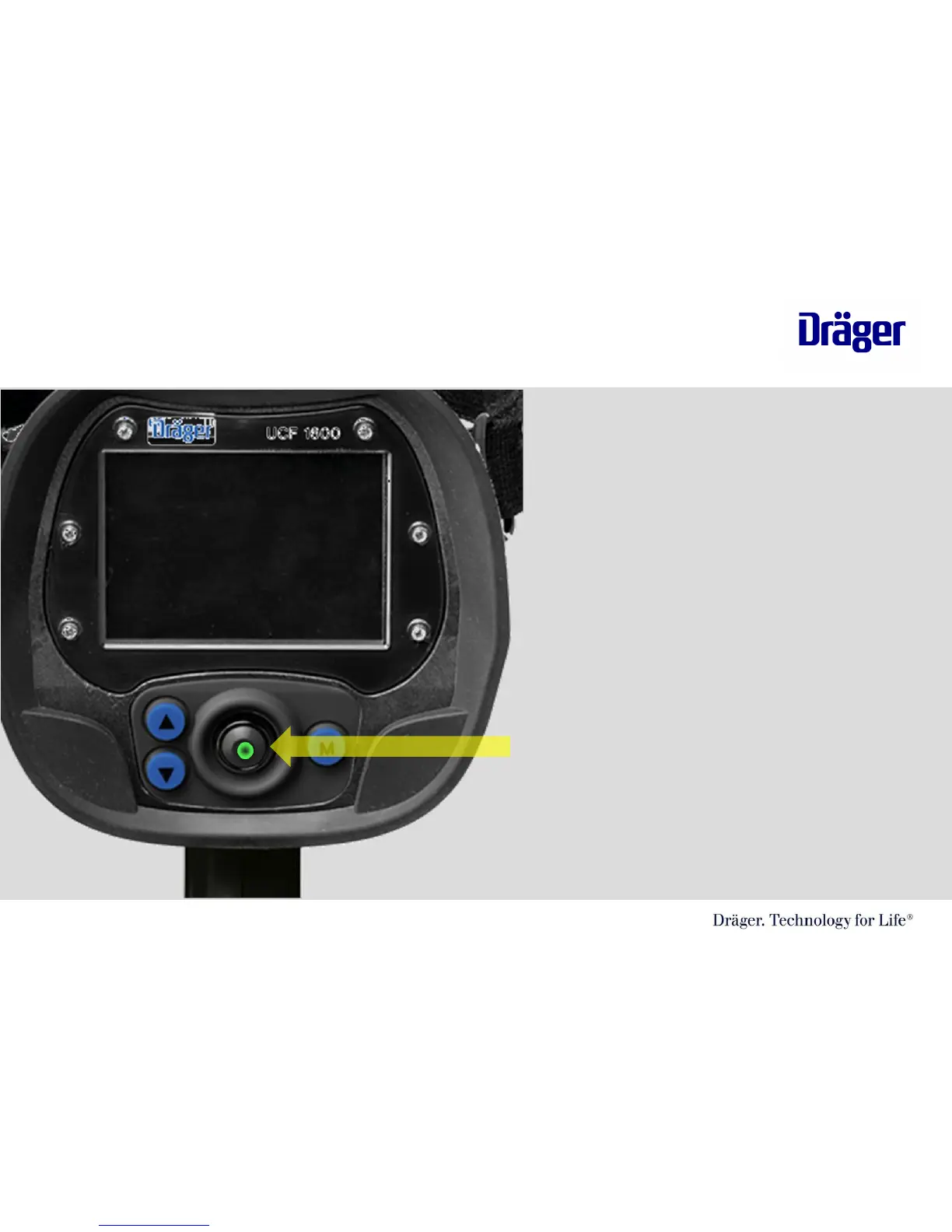

On/Off and Stand-by Button
The UCF 1600 and the UCF 3200
thermal cameras On/Off button is
the black or green button in the
center of the camera.
• To activate the camera press the button and a
solid green LED light will appear along with the
Dräger logo. The thermal image will appear in 8
to 10 seconds.
•To turn Off the camera, press and hold the
On/Off button for 5 seconds or until the camera
LCD screen turns off and green LED light isn’t on.
