Dräger UCF 1600

TIC Orientation/Greg Sesny5/25/2008
19 | 37
Dräger UCF Thermal Camera
On/Off and Stand-by Button
On/Off and Stand-by Button

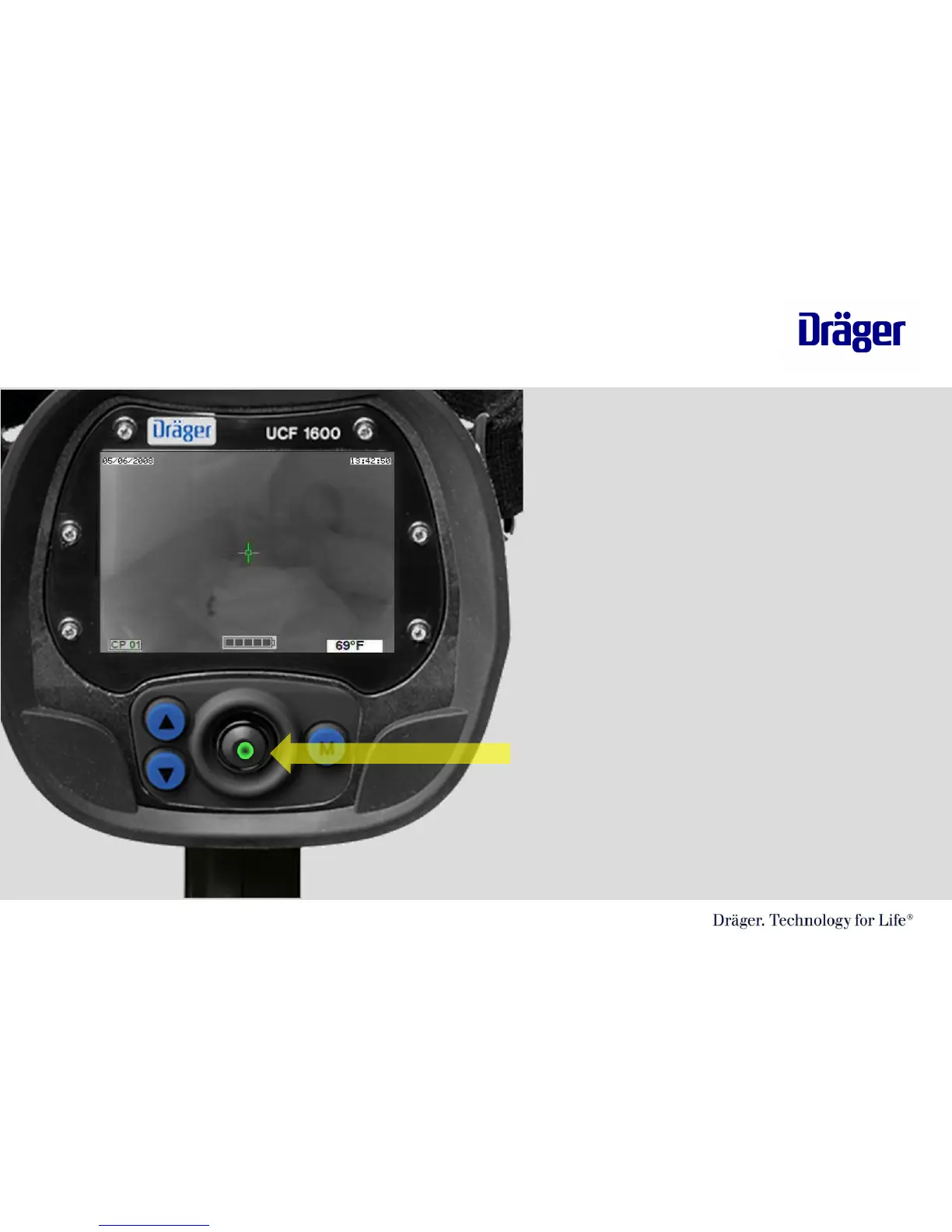

The UCF 1600 and the UCF 3200 thermal
cameras On/Off button is the black or green
button in the center of the camera.
• To activate the camera press the button and a
solid green LED light will appear along with the
Dräger logo. The thermal image will appear in 8
to 10 seconds.
• To put the camera in stand-by mode, press and
hold the On/Off button for 1 ½ to 2 seconds.
The on screen indicator will appear and release
the button. The On/Off button’s green LED light
will blink, that will indicate that the camera is
now in “Stand-by” mode. Press the on/off
button to take the camera out of “stand-by”
mode and a thermal image will instantly appear.
*Note: The camera will shut off in “stand-by”
mode if no battery life remains.
Hold to turn off
Release for Standby
