Dräger X-act 7000 User Manual

Description | en
Instructions for use | X-act
®
7000 17

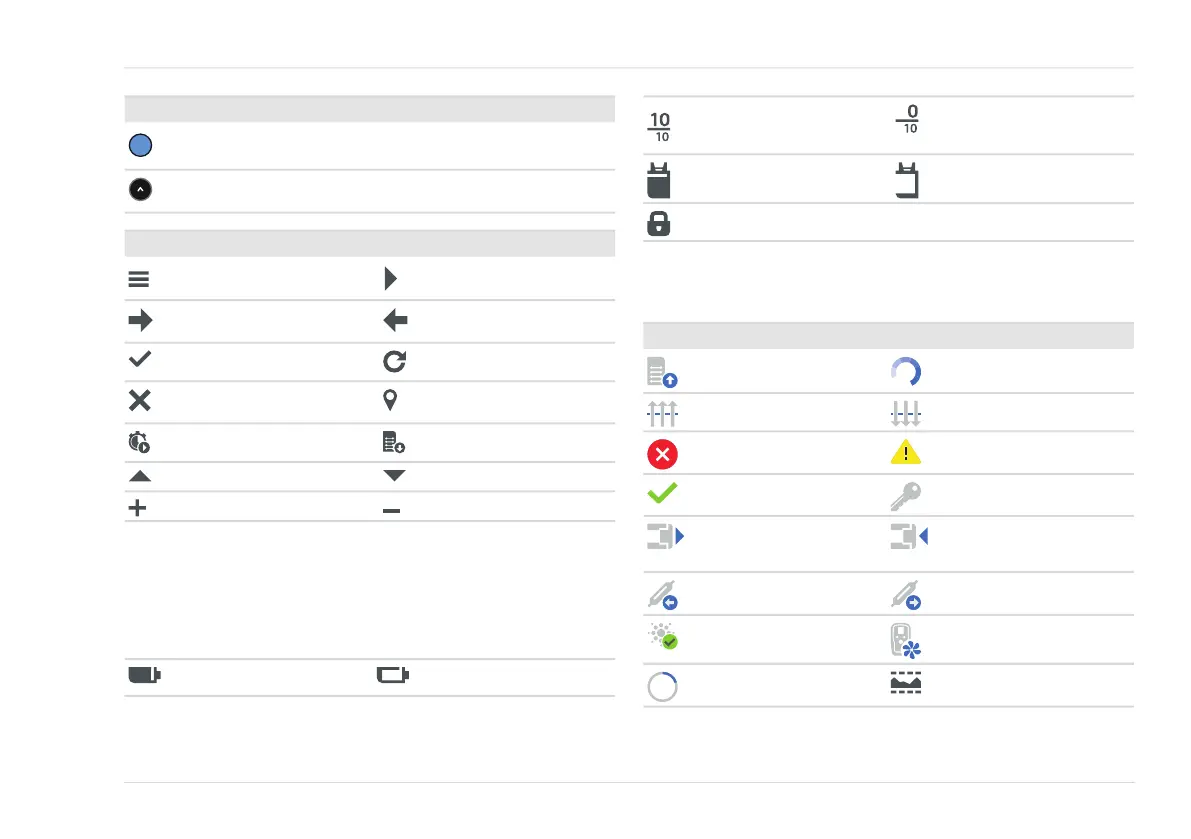

3.1.5 Display
The display comprises three areas (Graphic D/2), whose display ranges vary
according to setting and device status.
Top display range (Graphic D/2a)
The time and battery charge status are always shown.
The following icons may also be shown:
Middle display range (Graphic D/2b)
The middle display area shows measurement results, user dialogs, information
about used Dräger MicroTubes, as well as menu lists and error messages.
To confirm and select menu entries, as well as to control the middle soft
key. This key will be referred to as the “OK” key.
Used to navigate to the top of the menu screen and to control the right
soft key. This key will be referred to as the “UP” key.
Soft key (graphic D/2c)
Call up menu Carry out measurement
To next step To previous step
Confirm Repeat
Cancel
Call up measurement location
menu
Flushing counter Eject Dräger MicroTubes
Move up list Move down list
Plus key Minus key
Battery is fully charged Battery is empty
Keys
OK
10 of 10 unused Dräger Micro-
Tubes in the device, 10 mea-
surements possible
All Dräger MicroTubes used
Rechargeable battery at X-am
pump is fully charged
Rechargeable battery at X-am
pump is empty
PIN-protected area
Icon Meaning Icon Meaning
Insert Dräger MicroTubes Measurement running
Result above measuring range Result below measuring range
Error, contact Service if neces-
sary
Warning, contact Service if nec-
essary
OK Enter PIN
Open gas inlet on X-am pump Close gas inlet on X-am pump
Insert pre-tube Remove pre-tube
Gas detected
Locate uncontaminated atmo-
sphere for cleaning
Maximum time remaining for
measurement
Alarm thresholds for measure-
ment active
07:36
min
