Description
2 Description

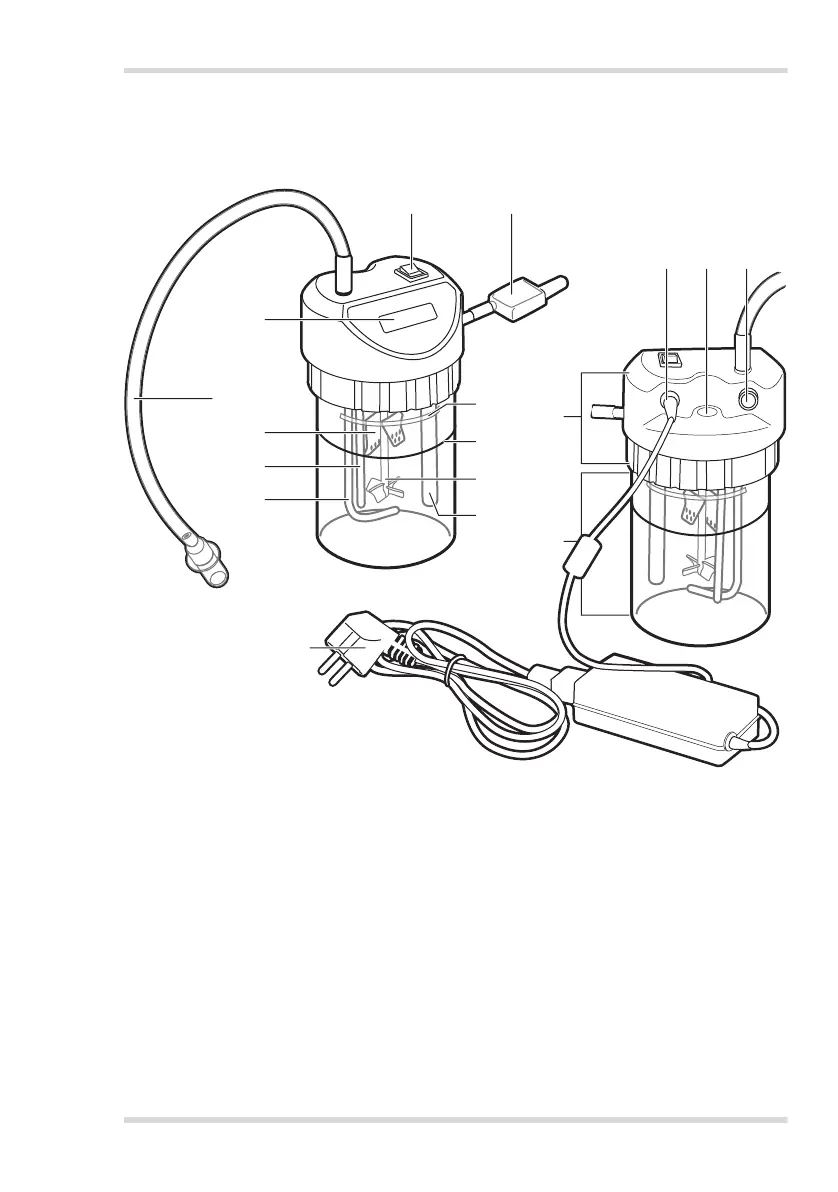

2.1 Product overview
Frontpage (A) Backpage (B)
1 Illuminated ON/OFF switch 1 24 V power input
2 7-segment-LCD 2 Thermometer port (optional)
3 Air inlet tube 3 Communication port
4 Stirrer 4 Top housing
5 Temperature sensors 1 and 2 5 Solution container
6 Dispersion tube 6 Power supply unit
7 Heating element
8 Baffle plate
9 500 mL solution fill line
10 Propeller
11 Air outlet tube
123
6
4
5
17
2
3
4
5
6
10
11
9
8
A
B
0133533
