SPECIFICATIONS
Maximum Input
Power 2000 Watts
PEP
Frequency Range
Up to 30
MHz,
Insertion of Switch
Changes VSWRno more than 1.051.
From 30
MHz
to 150
MHz,
Insertion
Changes VSWR no more than
1.5:l
(Both Switches).
Operating
Temperature Range
-40°F.
to +150°F.
Supply Voltage
120 VAC or 240 VAC Selectable.
Dimensions
&
Weight Console
5-1/4" high
X
6-13/16" wide,
7-1/16" cabinet depth (13.3 cm
H
x
17.3 cm
W
x 17.9 cm
D).
Weight
=
4.33 lb. (1.96 kg)
Remote Antenna
Switch
7-1/8" high x 57/8" wide
x
4-3/8" depth (18.1 cm
H
x
15.0 cm
W
x
11.1
cm
D).
8-3/16" center to center mounting
Weight
=
5 lbs. (2.27 kg)
INSTALLATION
Carefully remove the unit from the shipping carton, and
examineit for evidence of damage. If any
damageis discovered,
immediately notify the transportation company that delivered
the unit. Be sure to keep the shipping carton and packing
material, as the transportation company will want to examine
themif there is a damage claim. Keep the carton and packing
material even
if
no shipping damage occurs. Having the
>I:;,,
.,
,

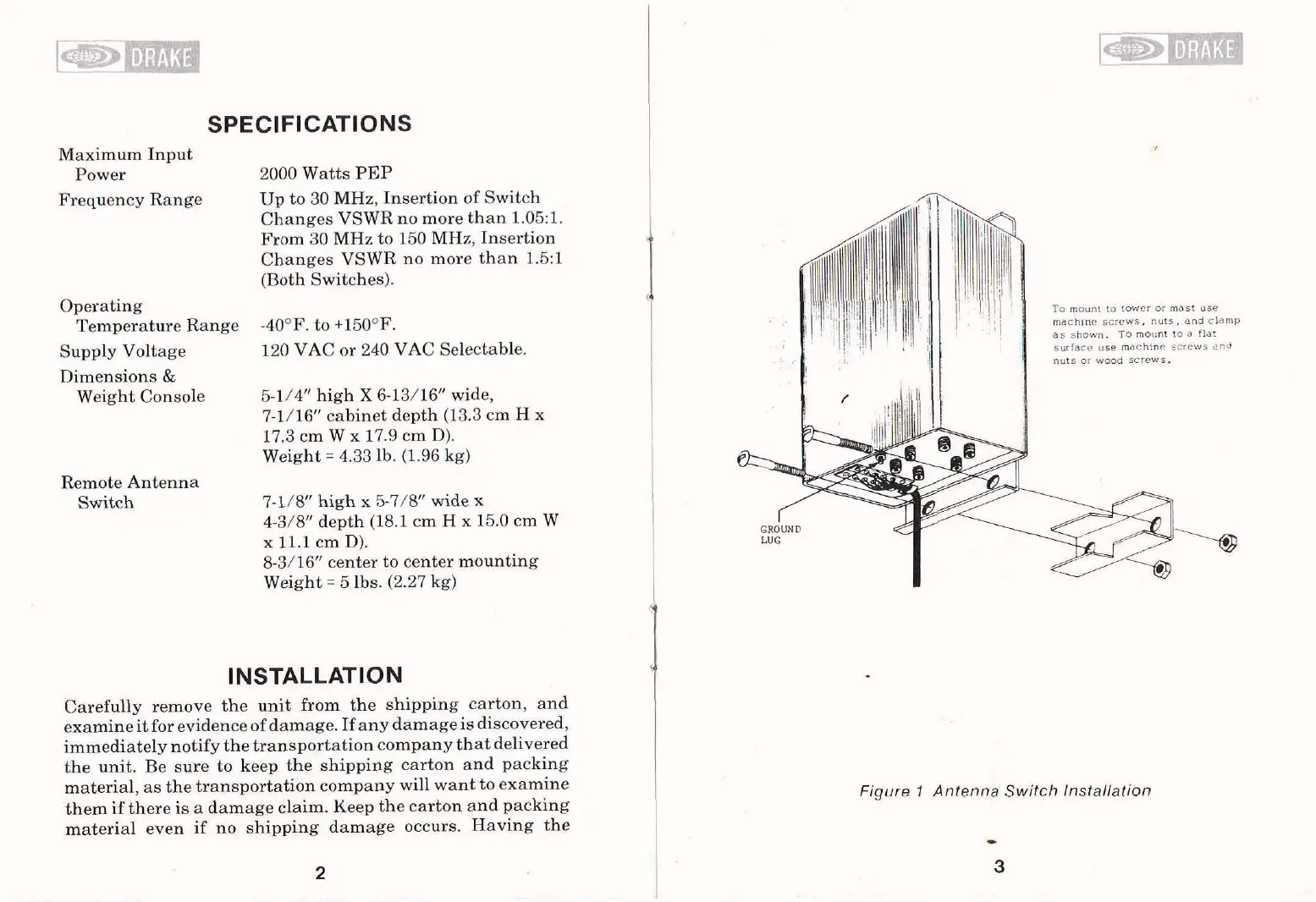

Figure
1
~"tenna
Switch
installation
