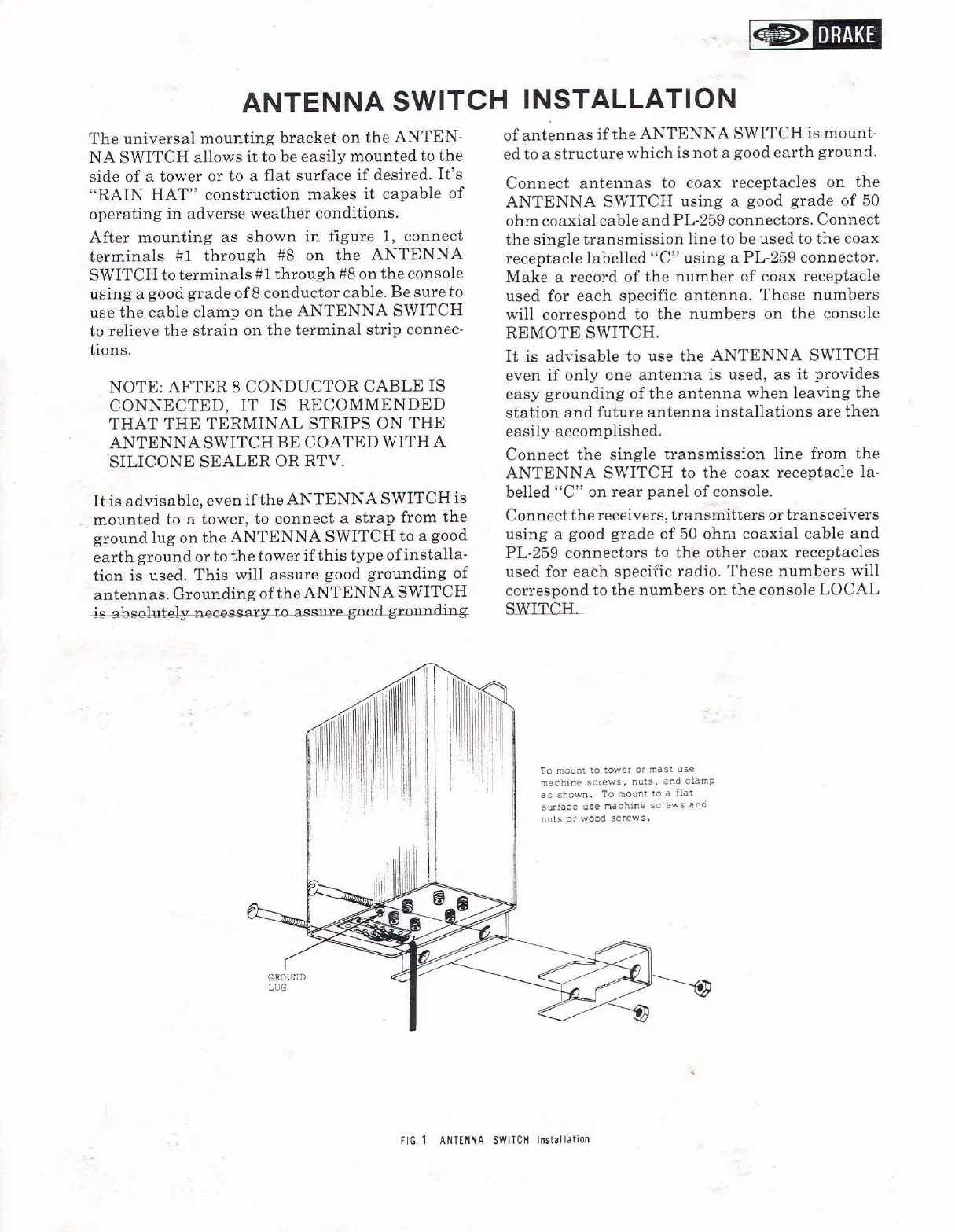

ANTENNA SWITCH INSTALLATION
The universal mounting bracket on the ANTEN-
of antennas if the ANTENNA SWITCH is mount-
NA SWITCH allows it to be
easily mounted to the
ed to a structure which is not a good earth ground.
side of a tower or to a flat surface if desired. It's
"RAIN HAT" construction makes it capable of
operating in adverse weather conditions.
After mounting as shown in figure
1,
connect
terminals
#1
through
#8
on the ANTENNA
SWITCH to terminals
#I
through #8 on the console
using a good grade of 8 conductor cable. Be sure to
use the cable clamp on the ANTENNA SWITCH
to relieve the strain on the terminal strip connec-
tions.
NOTE: AFTER 8 CONDUCTOR CABLE IS
CONNECTED, IT IS RECOMMENDED
THAT THE TERMINAL STRIPS ON THE
-.
ANTENNA SWITCH BE COATED WITH A
SILICONE SEALER OR
RTV.
..
i
'j
.
.
.
,
.
.
-
It is advisablej even ifthe ANTENNASWITCH is
:
.
mounted to a tower, to connect a strap from the
ground lug on the ANTENNA SWITCH to a good
,:,
.
'
earth ground or to the tower if this typeofinstalla-
..
-
C
-
tion is used. This will assure good grounding of
antennas. Grounding of the ANTENNA SWITCH
Connect antennas to coax receptacles on the
ANTENNA SWITCH using a good grade of
50
ohm coaxial cable and PL-259 connectors. Connect
the single transmission line to be used to the coax
receptacle labelled "C" using a PL-259 connector.
Make a record of the number of coax receptacle
used for each specific antenna. These numbers
will correspond to the numbers on the console
REMOTE SWITCH.
It is advisable to use the ANTENNA SWITCH
even if only one antenna is used, as it provides
easy grounding of the antenna when leaving the
station and future antenna installations are then
easily accomplished.
Connect the single transmission line from the
ANTENNA SWITCH to the coax receptacle la-
belled "C" on rear panel of console.
Connect the receivers, transmitters or transceivers
using a good grade of
50
ohm coaxial cable and
PL-259 connectors
to the other coax receptacles
used for each specific radio. These numbers will
correspond to the numbers on the console LOCAL
5llmux-
.
..
.
.
.
..
;,.
-.
*>
"c,.
--
44'.&
%
TO
mount
to
tower
or
mast
use
machlne
screws,
nuts,
and
clamp
as
shown.
TO
mount
I0
@
flat
surface
use
machlne
screws
and
nuts'or
wood
screws.
LUG
I
..
.
FIG1
ANTENNA
SWITCH
instaliation
>'.
.-
.
.
~
.
.<
-..--
..~,
--..
-
-
. .
.
..
. ..
