2-9. STATIONARY INSTALLATION.
2-10. POWER REQUIREMENTS. An R. L. Drake
Model AC—4 Power Supply rated at 120 volts ac,
50/60 Hz, is required for stationary installations.
The AC—4 is designed to fit inside the MS—4
speaker cabinet.
2-11. VIEWING ANGLE. Refer to figure 2-5 for
illustrations of viewing angle options. See Chapter V
for bottom cover removal.
2-12. ACCESSORIES. Refer to figures 2-6 through
2-9 for the electrical connections required to
operate the TR—4C with the various recommended
accessories.
NOTE
If the old RV—3 is to be used it must
be modified as follows: Install a 22 K,
2 Watt resistor from pin 1 of the tube
(OA2) to the terminal of the FUNCTION
switch to which the orange wire is
attached.
GROUND ANTENNA
EXTERNAL EXTERNAL
RECEIVER RECEIVER
ANTENNA MUTE
POWER

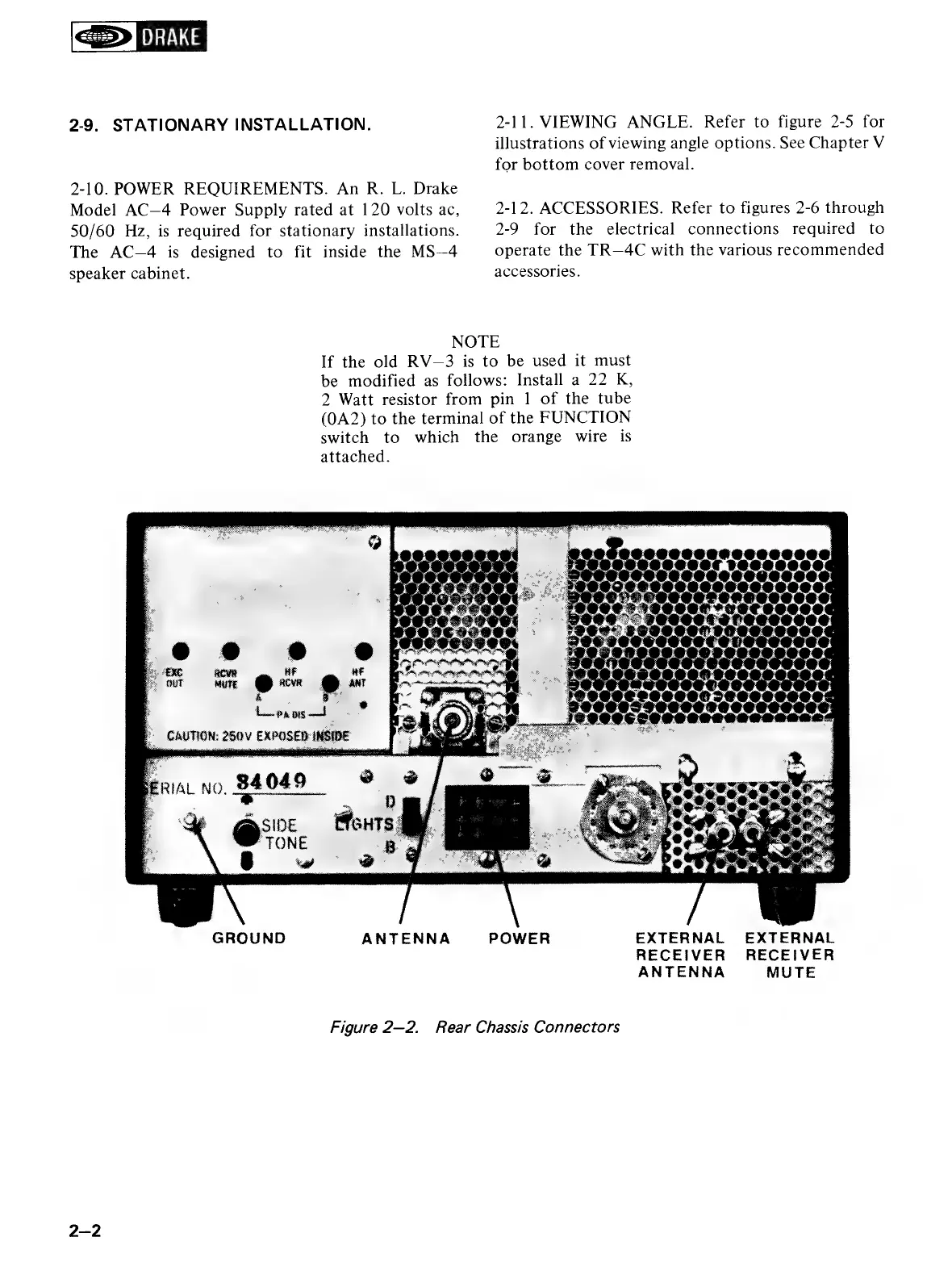

Figure 2—2. Rear Chassis Connectors
