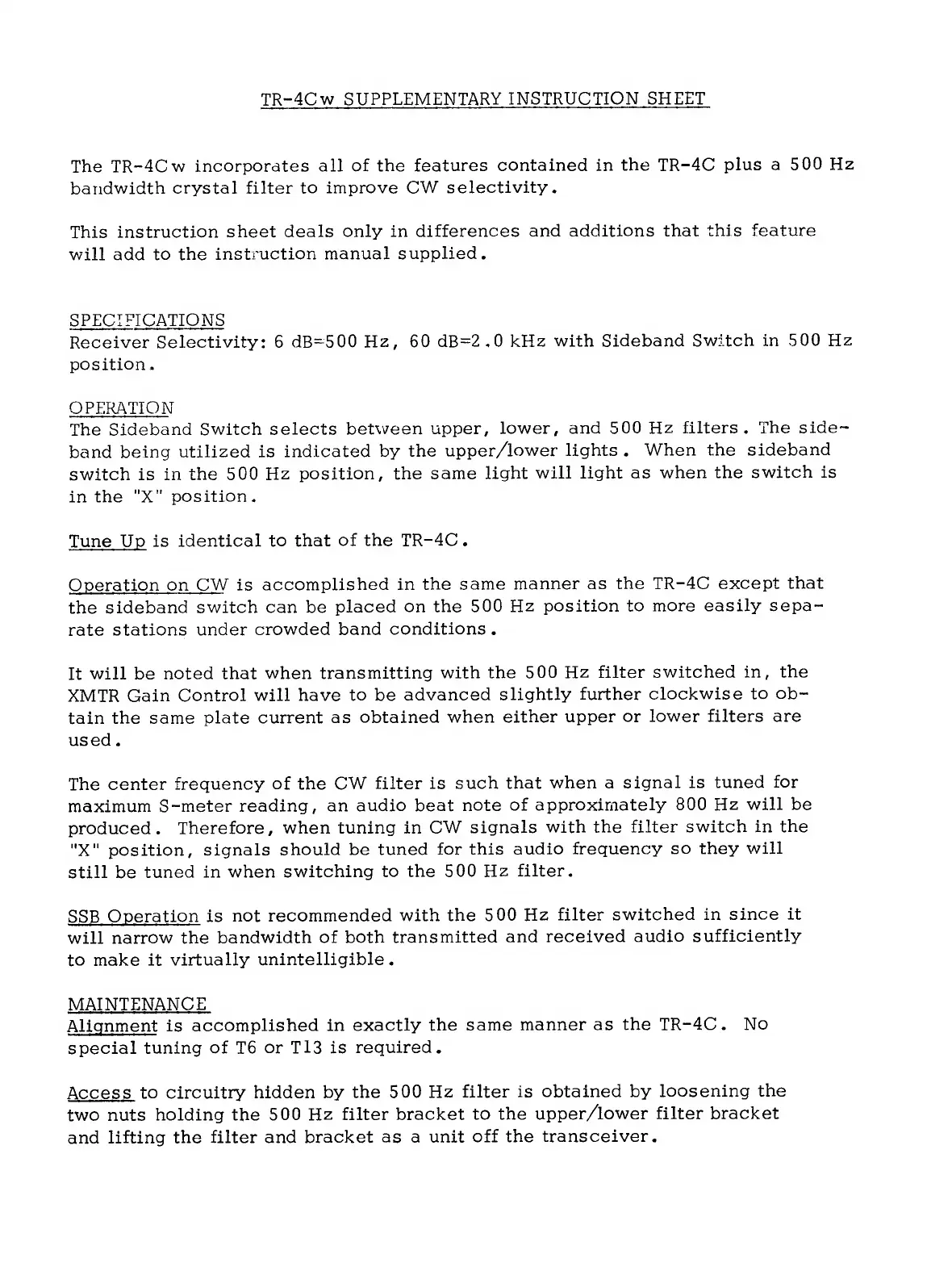

TR-4C
w_
SUPPLEMENTARY
INSTRUCTION
SHEET
The
TR-4Cw
incorporates
all
of
the
features
contained
in
the
TR-4C
plus
a
500
Hz
bandwidth
crystal
filter
to
improve
CW
selectivity.
This
instruction
sheet
deals
only
in
differences
and
additions
that
this
feature
will
add
to
the
instruction
manual
supplied.
SPECIFICATIONS
Receiver
Selectivity:
6
dB=500
Hz,
60
dB=2.0
kHz
with
Sideband
Switch
in
500
Hz
position.
OPERATION
The
Sideband
Switch
selects
between
upper,
lower,
and
500
Hz
filters.
The
side-
band
being
utilized
is
indicated
by
the
upper/lower
lights.
When
the
sideband
switch
is
in
the
500
Hz
position,
the
same
light
will
light
as
when
the
switch
is
in
the
"X"
position.
Tune
Up
is
identical
to
that
of
the
TR-4C.
Operation
on
CW
is
accomplished
in
the
same
manner
as
the
TR-4C
except
that
the
sideband
switch
can
be
placed
on
the
500
Hz
position
to
more
easily
sepa-
rate
stations
under
crowded
band
conditions.
It
will
be
noted
that
when
transmitting
with
the
500
Hz
filter
switched
in,
the
XMTR
Gain
Control
will
have
to
be
advanced
slightly
further
clockwise
to
ob-
tain
the
same
plate
current
as
obtained
when
either
upper
or
lower
filters
are
used.
The
center
frequency
of
the
CW
filter
is
such
that
when
a
signal
is
tuned
for
maximum
S~meter
reading,
an
audio
beat
note
of
approximately
800
Hz
will
be
produced.
Therefore,
when
tuning
in
CW
signals
with
the
filter
switch
in
the
"X"
position,
signals
should
be
tuned
for
this
audio
frequency
so
they
will
still
be
tuned
in
when
switching
to
the
500
Hz
filter.
SSB
Operation
is
not
recommended
with
the
500
Hz
filter
switched
in
since
it
will
narrow
the
bandwidth
of
both
transmitted
and
received
audio
sufficiently
to
make
it
virtually
unintelligible.
MAINTENANCE
Alignment
is
accomplished
in
exactly
the
same
manner
as
the
TR-4C.
No
special
tuning
of
T6
or
T13
is
required.
Access
to
circuitry
hidden
by
the
500
Hz
filter
is
obtained
by
loosening
the
two
nuts
holding
the
500
Hz
filter
bracket
to
the
upper/lower
filter
bracket
and
lifting
the
filter
and
bracket
as
a
unit
off
the
transceiver.
