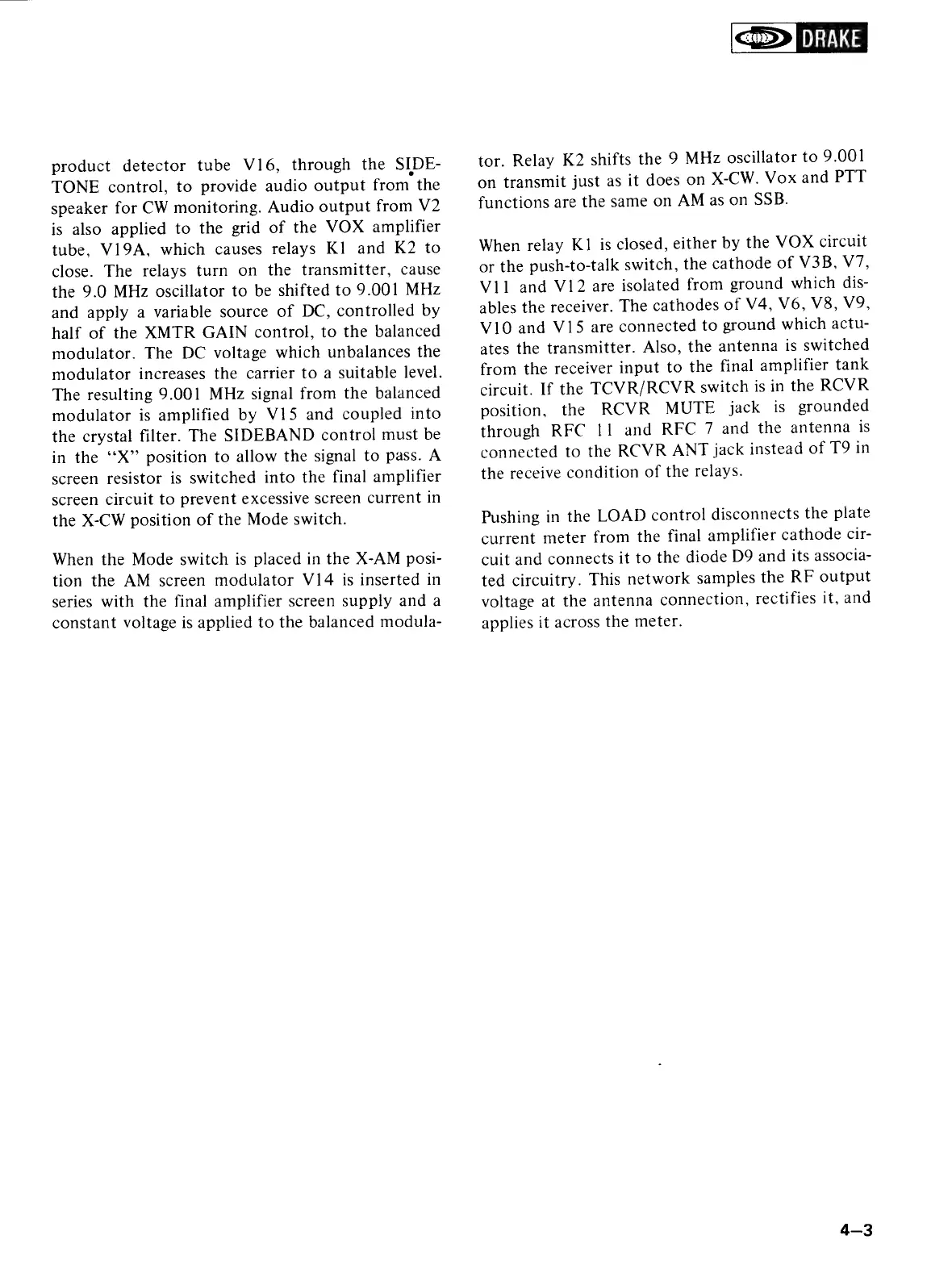

product
detector
tube
V16,
through
the
SIDE-
TONE
control,
to
provide
audio
output
from
the
speaker
for
CW
monitoring.
Audio
output
from
V2
is
also
applied
to
the
grid
of
the
VOX
amplifier
tube,
VI19A,
which
causes
relays
K1
and
K2
to
close.
The
relays
turn
on
the
transmitter,
cause
the
9.0
MHz
oscillator
to
be
shifted
to
9.001
MHz
and
apply
a
variable
source
of
DC,
controlled
by
half
of
the
XMTR
GAIN
control,
to
the
balanced
modulator.
The
DC
voltage
which
unbalances
the
modulator
increases
the
carrier
to
a
suitable
level.
The
resulting
9.001
MHz
signal
from
the
balanced
modulator
is
amplified
by
V15
and
coupled
into
the
crystal
filter.
The
SIDEBAND
control
must
be
in
the
ā€˜ā€˜Xā€
position
to
allow
the
signal
to
pass.
A
screen
resistor
is
switched
into
the
final
amplifier
screen
circuit
to
prevent
excessive
screen
current
in
the
X-CW
position
of
the
Mode
switch.
When
the
Mode
switch
is
placed
in
the
X-AM
posi-
tion
the
AM
screen
modulator
V14
is
inserted
in
series
with
the
final
amplifier
screen
supply
and
a
constant
voltage
is
applied
to
the
balanced
modula-
DRAKE
tor.
Relay
K2
shifts
the
9
MHz
oscillator
to
9.001
on
transmit
just
as
it
does
on
X-CW.
Vox
and
PTT
functions
are
the
same
on
AM
as
on
SSB.
When
relay
K1
is
closed,
either
by
the
VOX
circuit
or
the
push-to-talk
switch,
the
cathode
of
V3B,
V7,
V11
and
V12
are
isolated
from
ground
which
dis-
ables
the
receiver.
The
cathodes
of
V4,
V6,
V8,
V9,
V10
and
V15
are
connected
to
ground
which
actu-
ates
the
transmitter.
Also,
the
antenna
is
switched
from
the
receiver
input
to
the
final
amplifier
tank
circuit.
If
the
TCVR/RCVR
switch
is
in
the
RCVR
position,
the
RCVR
MUTE
jack
is
grounded
through
RFC
11!
and
RFC
7
and
the
antenna
is
connected
to
the
RCVR
ANT
jack
instead
of
T9
in
the
receive
condition
of
the
relays.
Pushing
in
the
LOAD
control
disconnects
the
plate
current
meter
from
the
final
amplifier
cathode
cir-
cuit
and
connects
it
to
the
diode
D9
and
its
associa-
ted
circuitry.
This
network
samples
the
RF
output
voltage
at
the
antenna
connection,
rectifies
it,
and
applies
it
across
the
meter.
